SDO HMI 2014-09-01 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.08 | 0.00 | 4.50 | 9.44 | 182.01 | -38.79 | 83.86 | 0.6221 | -240.1 | -193.2 | |
|
previous
or next observation for the same group /

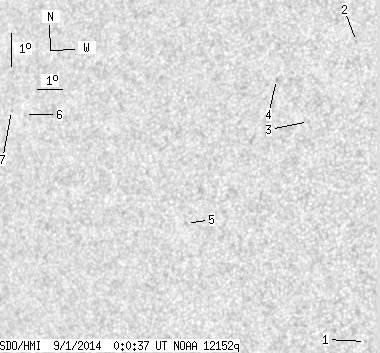

back to the solar disc SDO HMI 2014-09-01 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.52 | 4.07 | 189.01 | -31.79 | 93.90 | 0.5287 | -630.0 | -489.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 13.11 | 187.82 | -32.97 | 76.97 | 0.5461 | -584.0 | -550.3 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 10.58 | 186.39 | -34.41 | 81.76 | 0.5634 | -614.0 | -492.6 | |
| 0.00 | 1.25 | 0.00 | 0.76 | 11.76 | 185.02 | -35.78 | 79.83 | 0.5837 | -718.0 | -651.2 | |
| 0.00 | 1.34 | 0.00 | 0.85 | 7.16 | 182.11 | -38.68 | 87.54 | 0.6229 | -277.0 | -339.9 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 9.90 | 175.02 | -45.77 | 83.18 | 0.7132 | 632.0 | 532.3 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 9.97 | 174.43 | -46.36 | 83.08 | 0.7203 | 510.0 | 373.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
