SDO HMI 2014-09-01 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.65 | 720.10 | 78.40 | 397.56 | -15.39 | 205.96 | -13.18 | 150.36 | 0.4430 | -36.7 | 63.1 | |
|
previous
or next observation for the same group /

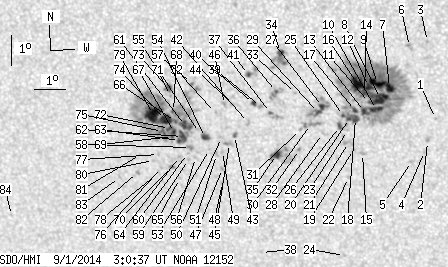

back to the solar disc SDO HMI 2014-09-01 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.54 | 210.77 | -8.37 | 160.00 | 0.4118 | 834.0 | 715.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.30 | 210.49 | -8.66 | 160.02 | 0.4247 | 793.0 | 677.9 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.04 | 210.62 | -8.52 | 157.27 | 0.3753 | 902.0 | 734.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.64 | 210.37 | -8.77 | 160.07 | 0.4302 | 556.0 | 480.3 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -16.98 | 209.94 | -9.20 | 159.45 | 0.4376 | 696.0 | 563.7 | |
| 0.00 | 3.13 | 0.00 | 1.68 | -13.21 | 210.05 | -9.10 | 156.10 | 0.3815 | 907.0 | 804.5 | |
| 6.09 | 336.29 | 3.30 | 182.68 | -14.56 | 209.36 | -9.79 | 155.97 | 0.4057 | 1342.2 | 507.0 | |
| 11.73 | -7.00 | 6.37 | -7.00 | -14.92 | 209.05 | -10.09 | 155.69 | 0.4129 | 1127.0 | 999999 | |
| 9.04 | -7.00 | 4.90 | -7.00 | -14.43 | 208.98 | -10.16 | 155.03 | 0.4064 | 1529.5 | 999999 | |
| 6.54 | -7.00 | 3.56 | -7.00 | -15.29 | 208.91 | -10.23 | 155.75 | 0.4191 | 890.4 | 999999 | |
| 0.27 | -7.00 | 0.15 | -7.00 | -15.06 | 208.70 | -10.45 | 155.08 | 0.4173 | 826.0 | 999999 | |
| 4.66 | -7.00 | 2.53 | -7.00 | -14.54 | 208.69 | -10.45 | 154.51 | 0.4098 | 1224.8 | 999999 | |
| 3.94 | -7.00 | 2.15 | -7.00 | -15.36 | 208.52 | -10.62 | 155.03 | 0.4227 | 859.0 | 999999 | |
| 1.43 | -7.00 | 0.78 | -7.00 | -14.77 | 208.55 | -10.59 | 154.47 | 0.4141 | 1013.2 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -16.75 | 208.38 | -10.76 | 156.11 | 0.4435 | 904.0 | 657.0 | |
| 10.65 | -7.00 | 5.79 | -7.00 | -14.45 | 208.35 | -10.80 | 153.68 | 0.4109 | 1245.2 | 999999 | |
| 2.06 | -7.00 | 1.13 | -7.00 | -15.33 | 208.24 | -10.91 | 154.41 | 0.4243 | 865.2 | 999999 | |
| 4.12 | -7.00 | 2.26 | -7.00 | -15.60 | 208.22 | -10.92 | 154.66 | 0.4281 | 905.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.62 | 208.10 | -11.05 | 155.44 | 0.4435 | 647.0 | 560.9 | |
| 2.24 | -7.00 | 1.23 | -7.00 | -15.60 | 208.03 | -11.11 | 154.27 | 0.4295 | 872.7 | 999999 | |
| 0.00 | 5.01 | 0.00 | 2.77 | -16.39 | 207.95 | -11.19 | 154.93 | 0.4412 | 888.0 | 612.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.56 | 207.88 | -11.26 | 155.91 | 0.4581 | 659.0 | 601.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.00 | 207.94 | -11.20 | 154.51 | 0.4357 | 653.0 | 491.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.19 | 207.56 | -11.58 | 157.63 | 0.4970 | 677.0 | 579.5 | |
| 0.81 | -7.00 | 0.44 | -7.00 | -15.51 | 207.84 | -11.30 | 153.80 | 0.4294 | 730.4 | 999999 | |
| 1.52 | -7.00 | 0.84 | -7.00 | -15.87 | 207.69 | -11.45 | 153.88 | 0.4356 | 741.6 | 999999 | |
| 2.60 | 19.97 | 1.42 | 10.95 | -15.23 | 207.19 | -11.96 | 152.19 | 0.4302 | 765.3 | 400.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.12 | 207.13 | -12.01 | 153.05 | 0.4430 | 558.0 | 416.6 | |
| 1.61 | -27.00 | 0.89 | -27.00 | -15.43 | 207.05 | -12.10 | 152.13 | 0.4340 | 743.2 | 999999 | |
| 0.00 | 7.88 | 0.00 | 4.35 | -15.83 | 206.76 | -12.38 | 152.03 | 0.4416 | 686.0 | 532.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.00 | 206.43 | -12.71 | 151.59 | 0.4465 | 460.0 | 304.9 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -16.67 | 206.35 | -12.79 | 152.16 | 0.4561 | -868.0 | -712.1 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -14.83 | 206.34 | -12.80 | 150.07 | 0.4311 | -561.0 | -382.8 | |
| 2.69 | 19.70 | 1.46 | 10.74 | -13.51 | 205.94 | -13.20 | 147.63 | 0.4166 | 960.9 | -68.3 | |
| 4.92 | 21.49 | 2.75 | 12.00 | -16.85 | 205.59 | -13.55 | 150.98 | 0.4642 | -1049.0 | -393.7 | |
| 0.72 | 8.95 | 0.39 | 4.92 | -14.78 | 205.74 | -13.41 | 148.85 | 0.4353 | -1134.0 | -830.8 | |
| 0.54 | 5.73 | 0.30 | 3.17 | -15.47 | 205.50 | -13.65 | 149.24 | 0.4465 | -917.2 | -671.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -20.17 | 204.82 | -14.33 | 153.01 | 0.5139 | 695.0 | 539.5 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -15.29 | 205.19 | -13.96 | 148.45 | 0.4465 | -871.0 | -668.0 | |
| 1.70 | 3.13 | 0.94 | 1.73 | -15.19 | 204.97 | -14.18 | 147.94 | 0.4471 | 542.7 | 317.6 | |
| 1.25 | 7.61 | 0.69 | 4.18 | -14.25 | 204.87 | -14.27 | 146.57 | 0.4356 | -807.4 | -93.9 | |
| 0.00 | 2.87 | 0.00 | 1.59 | -15.82 | 204.76 | -14.39 | 148.32 | 0.4570 | -862.0 | -675.0 | |
| 0.81 | 2.60 | 0.45 | 1.45 | -16.27 | 204.27 | -14.88 | 147.99 | 0.4668 | -935.7 | -765.6 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -15.25 | 204.28 | -14.86 | 146.78 | 0.4535 | 852.0 | 639.5 | |
| 0.00 | 4.57 | 0.00 | 2.56 | -16.54 | 204.08 | -15.06 | 147.99 | 0.4718 | -834.0 | -648.4 | |
| 0.00 | 2.87 | 0.00 | 1.59 | -15.26 | 204.02 | -15.12 | 146.33 | 0.4559 | 758.0 | 507.7 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -17.38 | 203.78 | -15.36 | 148.45 | 0.4851 | -848.0 | -702.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.85 | 203.74 | -15.40 | 148.90 | 0.4914 | -743.0 | -639.2 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.81 | 203.83 | -15.31 | 147.88 | 0.4774 | -85.0 | -153.8 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -16.35 | 203.84 | -15.31 | 147.35 | 0.4714 | -726.0 | -563.3 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -16.92 | 203.63 | -15.52 | 147.66 | 0.4804 | -735.0 | -687.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -15.53 | 203.71 | -15.44 | 146.13 | 0.4620 | 631.0 | 385.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.76 | 203.41 | -15.73 | 147.12 | 0.4802 | -646.0 | -449.6 | |
| 3.49 | 5.28 | 1.96 | 2.97 | -16.37 | 203.31 | -15.83 | 146.49 | 0.4760 | -1054.9 | -803.8 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.21 | 203.13 | -16.02 | 145.99 | 0.4756 | -283.0 | -476.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.04 | 202.92 | -16.22 | 146.65 | 0.4878 | -645.0 | -501.4 | |
| 0.36 | 15.76 | 0.20 | 8.79 | -14.61 | 203.00 | -16.15 | 143.73 | 0.4567 | -1077.2 | -760.1 | |
| 0.00 | 3.31 | 0.00 | 1.87 | -16.72 | 202.79 | -16.36 | 146.05 | 0.4848 | -844.0 | -735.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.12 | 202.69 | -16.46 | 146.36 | 0.4907 | -580.0 | -489.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -16.92 | 202.67 | -16.47 | 146.10 | 0.4884 | -608.0 | -529.9 | |
| 7.25 | 190.08 | 4.08 | 107.30 | -15.99 | 202.69 | -16.46 | 145.00 | 0.4767 | -1160.8 | -477.0 | |
| 5.46 | -61.00 | 3.09 | -61.00 | -16.36 | 202.56 | -16.59 | 145.24 | 0.4824 | -983.0 | 999999 | |
| 1.70 | -61.00 | 0.96 | -61.00 | -16.50 | 202.45 | -16.70 | 145.23 | 0.4851 | -796.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -17.03 | 202.40 | -16.75 | 145.79 | 0.4921 | -759.0 | -575.7 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.76 | 202.33 | -16.82 | 146.54 | 0.5018 | -574.0 | -420.6 | |
| 0.98 | -61.00 | 0.55 | -61.00 | -15.87 | 202.37 | -16.77 | 144.33 | 0.4780 | -1195.6 | 999999 | |
| 1.79 | -61.00 | 1.01 | -61.00 | -16.24 | 202.30 | -16.84 | 144.69 | 0.4831 | -1138.2 | 999999 | |
| 0.98 | -61.00 | 0.55 | -61.00 | -15.55 | 202.33 | -16.81 | 143.86 | 0.4744 | -1186.2 | 999999 | |
| 0.81 | -61.00 | 0.46 | -61.00 | -16.37 | 202.23 | -16.92 | 144.73 | 0.4855 | -718.2 | 999999 | |
| 0.72 | 2.06 | 0.41 | 1.18 | -17.37 | 202.10 | -17.05 | 145.73 | 0.4988 | -792.0 | -627.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -15.02 | 202.28 | -16.87 | 143.09 | 0.4685 | -846.0 | -773.3 | |
| 2.42 | -61.00 | 1.37 | -61.00 | -16.11 | 202.15 | -16.99 | 144.28 | 0.4829 | -1139.5 | 999999 | |
| 3.04 | 5.01 | 1.70 | 2.80 | -14.77 | 202.23 | -16.91 | 142.67 | 0.4657 | -1044.9 | -760.7 | |
| 9.67 | -61.00 | 5.45 | -61.00 | -15.82 | 202.05 | -17.10 | 143.75 | 0.4803 | -1182.2 | 999999 | |
| 3.22 | -61.00 | 1.83 | -61.00 | -16.22 | 201.91 | -17.23 | 144.04 | 0.4864 | -678.4 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -17.42 | 201.76 | -17.38 | 145.27 | 0.5023 | -625.0 | -555.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.99 | 201.71 | -17.44 | 144.66 | 0.4975 | -538.0 | -421.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -17.59 | 201.65 | -17.50 | 145.29 | 0.5054 | -695.0 | -466.0 | |
| 17.82 | -61.00 | 10.06 | -61.00 | -15.67 | 201.66 | -17.48 | 142.95 | 0.4820 | -1114.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.19 | 201.52 | -17.63 | 144.63 | 0.5017 | -609.0 | -475.5 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.01 | 201.10 | -18.04 | 143.78 | 0.5031 | -623.0 | -526.1 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -17.62 | 200.94 | -18.20 | 144.26 | 0.5118 | -755.0 | -647.3 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -17.81 | 200.32 | -18.83 | 143.58 | 0.5195 | -570.0 | -476.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -19.26 | 196.44 | -22.71 | 140.14 | 0.5707 | -558.0 | -472.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
