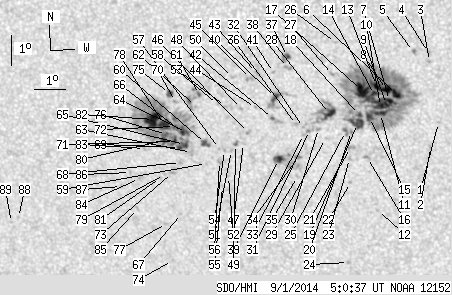

SDO HMI 2014-09-01 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.24 | 727.46 | 73.88 | 399.94 | -15.40 | 205.98 | -12.07 | 152.55 | 0.4349 | -21.7 | 54.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.50 | 210.79 | -7.26 | 162.44 | 0.4054 | 783.0 | 633.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.32 | 210.50 | -7.55 | 162.43 | 0.4193 | 843.0 | 728.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.51 | 210.57 | -7.47 | 160.27 | 0.3762 | 791.0 | 640.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -13.22 | 210.55 | -7.50 | 159.94 | 0.3719 | 975.0 | 796.7 | |
| 0.00 | 2.15 | 0.00 | 1.15 | -13.20 | 210.08 | -7.97 | 158.77 | 0.3742 | 1098.0 | 904.8 | |
| 5.82 | 335.37 | 3.14 | 181.47 | -14.60 | 209.49 | -8.55 | 158.74 | 0.3987 | 1291.6 | 506.5 | |
| 2.78 | -6.00 | 1.50 | -6.00 | -14.80 | 209.26 | -8.78 | 158.42 | 0.4030 | 1090.4 | 999999 | |
| 6.54 | -6.00 | 3.53 | -6.00 | -14.44 | 209.18 | -8.86 | 157.89 | 0.3982 | 1561.6 | 999999 | |
| 1.97 | -6.00 | 1.07 | -6.00 | -14.93 | 209.16 | -8.88 | 158.32 | 0.4056 | 1106.8 | 999999 | |
| 3.40 | -6.00 | 1.84 | -6.00 | -15.00 | 208.97 | -9.08 | 157.96 | 0.4078 | 1044.1 | 999999 | |
| 5.28 | -6.00 | 2.87 | -6.00 | -15.23 | 208.96 | -9.09 | 158.15 | 0.4112 | 899.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.45 | 208.70 | -9.35 | 160.34 | 0.4599 | 741.0 | 536.6 | |
| 5.82 | -6.00 | 3.14 | -6.00 | -14.32 | 208.87 | -9.17 | 157.07 | 0.3983 | 1422.8 | 999999 | |
| 3.22 | -6.00 | 1.74 | -6.00 | -14.61 | 208.80 | -9.25 | 157.20 | 0.4031 | 1283.8 | 999999 | |
| 4.39 | -6.00 | 2.39 | -6.00 | -15.37 | 208.60 | -9.44 | 157.51 | 0.4154 | 882.5 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.33 | -16.69 | 208.47 | -9.57 | 158.45 | 0.4354 | 873.0 | 703.4 | |
| 12.54 | -6.00 | 6.78 | -6.00 | -14.49 | 208.39 | -9.66 | 156.18 | 0.4039 | 1260.0 | 999999 | |
| 1.61 | -6.00 | 0.88 | -6.00 | -15.28 | 208.29 | -9.76 | 156.75 | 0.4160 | 988.9 | 999999 | |
| 8.96 | -6.00 | 4.89 | -6.00 | -15.58 | 208.21 | -9.84 | 156.87 | 0.4208 | 869.4 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.84 | 208.01 | -10.04 | 156.70 | 0.4259 | 804.0 | 662.2 | |
| 0.00 | 3.49 | 0.00 | 1.92 | -16.37 | 207.95 | -10.10 | 157.08 | 0.4339 | 857.0 | 676.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.53 | 207.88 | -10.17 | 158.00 | 0.4511 | 650.0 | 553.1 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -16.74 | 207.89 | -10.15 | 157.31 | 0.4395 | 525.0 | 463.7 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -20.24 | 207.64 | -10.40 | 159.73 | 0.4911 | 824.0 | 582.1 | |
| 0.00 | 3.94 | 0.00 | 2.16 | -15.85 | 207.81 | -10.23 | 156.31 | 0.4272 | 817.0 | 655.2 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -12.95 | 207.64 | -10.41 | 152.79 | 0.3868 | -664.0 | -551.6 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -13.99 | 207.49 | -10.55 | 153.69 | 0.4027 | 761.0 | 560.5 | |
| 7.61 | 29.82 | 4.16 | 16.29 | -15.27 | 207.33 | -10.71 | 154.74 | 0.4220 | 886.3 | 394.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.09 | 207.16 | -10.89 | 155.23 | 0.4349 | 578.0 | 431.4 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -15.77 | 206.95 | -11.09 | 154.49 | 0.4317 | 647.0 | 559.5 | |
| 0.00 | 2.69 | 0.00 | 1.48 | -15.84 | 206.66 | -11.39 | 153.98 | 0.4347 | 684.0 | 576.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -15.75 | 206.47 | -11.57 | 153.51 | 0.4347 | 444.0 | 373.9 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -15.98 | 206.46 | -11.59 | 153.72 | 0.4380 | 343.0 | 245.6 | |
| 0.00 | 3.49 | 0.00 | 1.94 | -16.71 | 206.25 | -11.79 | 154.08 | 0.4497 | -1066.0 | -764.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -17.38 | 206.18 | -11.87 | 154.60 | 0.4595 | 494.0 | 426.5 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -15.65 | 206.25 | -11.79 | 152.98 | 0.4349 | -238.0 | -199.5 | |
| 1.52 | 6.00 | 0.82 | 3.25 | -13.44 | 206.09 | -11.96 | 150.06 | 0.4055 | 1008.3 | 656.5 | |
| 0.00 | 3.40 | 0.00 | 1.85 | -13.80 | 206.07 | -11.97 | 150.47 | 0.4105 | -735.0 | -597.9 | |
| 4.66 | 26.06 | 2.59 | 14.48 | -16.83 | 205.60 | -12.45 | 152.97 | 0.4558 | -1081.0 | -229.8 | |
| 3.31 | 13.97 | 1.81 | 7.65 | -14.79 | 205.63 | -12.41 | 150.78 | 0.4275 | -1088.9 | -654.9 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -13.97 | 205.62 | -12.43 | 149.76 | 0.4165 | -906.0 | -629.7 | |
| 0.63 | 5.37 | 0.35 | 2.96 | -15.48 | 205.49 | -12.55 | 151.30 | 0.4381 | -859.4 | -650.1 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -13.99 | 205.07 | -12.98 | 148.70 | 0.4211 | 688.0 | 450.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.13 | 204.97 | -13.08 | 149.90 | 0.4374 | 777.0 | 581.2 | |
| 0.00 | 3.76 | 0.00 | 2.06 | -14.19 | 204.87 | -13.18 | 148.56 | 0.4255 | -896.0 | -621.3 | |
| 0.00 | 2.42 | 0.00 | 1.34 | -15.96 | 204.69 | -13.36 | 150.34 | 0.4507 | -866.0 | -710.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.33 | 204.50 | -13.55 | 150.41 | 0.4571 | -682.0 | -531.1 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -15.18 | 204.52 | -13.53 | 149.10 | 0.4416 | 785.0 | 555.2 | |
| 0.45 | 2.24 | 0.25 | 1.25 | -16.37 | 204.24 | -13.81 | 149.98 | 0.4597 | -972.8 | -819.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -14.17 | 204.29 | -13.76 | 147.43 | 0.4301 | -764.0 | -586.4 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -16.57 | 204.09 | -13.96 | 149.95 | 0.4635 | -795.0 | -671.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.44 | 203.93 | -14.12 | 150.61 | 0.4763 | -727.0 | -620.3 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -15.13 | 204.00 | -14.05 | 148.09 | 0.4451 | 790.0 | 595.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.58 | 203.86 | -14.18 | 149.55 | 0.4654 | -873.0 | -670.0 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.78 | 203.70 | -14.35 | 150.59 | 0.4825 | -877.0 | -588.8 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -16.95 | 203.67 | -14.38 | 149.63 | 0.4717 | -698.0 | -646.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -16.52 | 203.71 | -14.34 | 149.21 | 0.4658 | -754.0 | -697.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -15.07 | 203.75 | -14.30 | 147.56 | 0.4465 | 623.0 | 495.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.03 | 203.24 | -14.81 | 148.98 | 0.4762 | -524.0 | -428.5 | |
| 3.04 | 5.19 | 1.70 | 2.91 | -16.37 | 203.26 | -14.79 | 148.26 | 0.4674 | -1066.4 | -819.9 | |
| 0.90 | 11.37 | 0.50 | 6.31 | -14.76 | 203.19 | -14.86 | 146.16 | 0.4472 | -1026.8 | -834.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -15.16 | 203.03 | -15.02 | 146.39 | 0.4537 | -594.0 | -459.1 | |
| 0.00 | 3.22 | 0.00 | 1.81 | -16.68 | 202.78 | -15.27 | 147.80 | 0.4754 | -803.0 | -685.6 | |
| 0.27 | 195.22 | 0.15 | 109.54 | -16.03 | 202.67 | -15.38 | 146.83 | 0.4678 | -1169.0 | -523.5 | |
| 3.58 | -64.00 | 2.01 | -64.00 | -16.42 | 202.57 | -15.48 | 147.14 | 0.4738 | -975.7 | 999999 | |
| 2.60 | -64.00 | 1.45 | -64.00 | -16.03 | 202.54 | -15.51 | 146.61 | 0.4690 | -1169.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -18.73 | 202.26 | -15.79 | 149.24 | 0.5057 | -561.0 | -553.7 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.03 | 202.39 | -15.66 | 147.55 | 0.4830 | -674.0 | -609.8 | |
| 2.24 | -64.00 | 1.26 | -64.00 | -16.53 | 202.40 | -15.65 | 146.98 | 0.4765 | -814.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -15.02 | 202.39 | -15.66 | 145.09 | 0.4575 | -948.0 | -764.6 | |
| 3.22 | -64.00 | 1.81 | -64.00 | -16.34 | 202.25 | -15.80 | 146.50 | 0.4753 | -958.3 | 999999 | |
| 1.07 | -64.00 | 0.60 | -64.00 | -15.84 | 202.29 | -15.76 | 145.97 | 0.4687 | -1167.2 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.58 | -17.37 | 202.09 | -15.96 | 147.46 | 0.4897 | -813.0 | -646.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -20.34 | 201.79 | -16.25 | 150.17 | 0.5297 | -800.0 | -615.5 | |
| 2.69 | 4.75 | 1.49 | 2.64 | -14.76 | 202.21 | -15.84 | 144.46 | 0.4558 | -1040.2 | -780.9 | |
| 1.43 | -64.00 | 0.81 | -64.00 | -16.11 | 202.01 | -16.04 | 145.83 | 0.4746 | -1061.0 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -19.09 | 201.73 | -16.32 | 148.78 | 0.5144 | -571.0 | -485.1 | |
| 10.03 | -64.00 | 5.63 | -64.00 | -15.79 | 201.97 | -16.08 | 145.36 | 0.4708 | -1180.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.44 | 201.82 | -16.23 | 147.11 | 0.4929 | -794.0 | -557.1 | |
| 2.78 | -64.00 | 1.56 | -64.00 | -16.32 | 201.89 | -16.16 | 145.88 | 0.4781 | -698.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.55 | 201.68 | -16.37 | 147.00 | 0.4954 | -565.0 | -438.8 | |
| 19.88 | -64.00 | 11.16 | -64.00 | -15.63 | 201.62 | -16.43 | 144.59 | 0.4720 | -1104.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.60 | 201.24 | -16.81 | 145.18 | 0.4873 | -524.0 | -457.8 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.61 | 200.98 | -17.07 | 145.97 | 0.5020 | -807.0 | -685.3 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -18.62 | 200.81 | -17.24 | 146.86 | 0.5158 | -571.0 | -437.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.42 | 200.70 | -17.35 | 145.31 | 0.5020 | -728.0 | -605.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -17.90 | 200.35 | -17.70 | 145.35 | 0.5108 | -567.0 | -510.7 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -19.10 | 196.71 | -21.34 | 141.67 | 0.5565 | -617.0 | -420.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -19.28 | 196.45 | -21.60 | 141.54 | 0.5609 | -584.0 | -437.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
