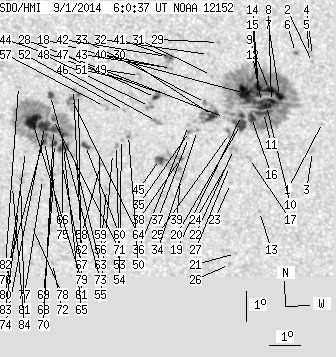

SDO HMI 2014-09-01 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.86 | 727.88 | 75.01 | 399.16 | -15.39 | 206.02 | -11.48 | 153.70 | 0.4307 | 62.6 | 34.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.24 | -15.45 | 210.88 | -6.62 | 163.87 | 0.4018 | 137.0 | 206.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.50 | 210.62 | -6.88 | 161.73 | 0.3729 | 853.0 | 686.5 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -16.41 | 210.52 | -6.97 | 163.75 | 0.4180 | 611.0 | 594.3 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -13.28 | 210.63 | -6.87 | 161.55 | 0.3694 | 690.0 | 574.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.18 | 210.54 | -6.96 | 161.24 | 0.3684 | 978.0 | 770.5 | |
| 0.36 | 2.15 | 0.19 | 1.15 | -13.19 | 210.10 | -7.40 | 160.15 | 0.3708 | 1065.2 | 874.3 | |
| 6.00 | 338.07 | 3.23 | 182.62 | -14.59 | 209.55 | -7.95 | 160.11 | 0.3952 | 1277.6 | 487.9 | |
| 3.40 | -7.00 | 1.84 | -7.00 | -14.79 | 209.29 | -8.21 | 159.69 | 0.3996 | 1019.7 | 999999 | |
| 6.45 | -7.00 | 3.47 | -7.00 | -14.43 | 209.24 | -8.26 | 159.25 | 0.3945 | 1606.7 | 999999 | |
| 4.57 | -7.00 | 2.47 | -7.00 | -14.93 | 209.12 | -8.38 | 159.44 | 0.4025 | 1157.0 | 999999 | |
| 7.07 | -7.00 | 3.83 | -7.00 | -15.16 | 209.02 | -8.48 | 159.42 | 0.4066 | 879.9 | 999999 | |
| 1.88 | -7.00 | 1.02 | -7.00 | -14.83 | 208.97 | -8.53 | 159.01 | 0.4020 | 1151.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.44 | 208.74 | -8.76 | 161.48 | 0.4568 | 752.0 | 607.7 | |
| 5.10 | -7.00 | 2.75 | -7.00 | -14.34 | 208.89 | -8.61 | 158.38 | 0.3951 | 1496.6 | 999999 | |
| 2.33 | -7.00 | 1.26 | -7.00 | -14.57 | 208.89 | -8.61 | 158.58 | 0.3986 | 1316.6 | 999999 | |
| 4.93 | -7.00 | 2.67 | -7.00 | -15.33 | 208.63 | -8.87 | 158.71 | 0.4113 | 891.9 | 999999 | |
| 0.00 | 2.96 | 0.00 | 1.62 | -16.68 | 208.50 | -9.00 | 159.63 | 0.4320 | 878.0 | 670.4 | |
| 17.55 | -7.00 | 9.48 | -7.00 | -14.55 | 208.48 | -9.02 | 157.63 | 0.4007 | 1239.5 | 999999 | |
| 2.15 | -7.00 | 1.17 | -7.00 | -15.27 | 208.32 | -9.18 | 157.97 | 0.4123 | 982.4 | 999999 | |
| 9.58 | -7.00 | 5.22 | -7.00 | -15.56 | 208.27 | -9.23 | 158.15 | 0.4169 | 834.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.88 | 207.87 | -9.63 | 160.88 | 0.4820 | 407.0 | 309.8 | |
| 0.00 | 5.46 | 0.00 | 3.00 | -16.39 | 208.01 | -9.49 | 158.35 | 0.4306 | 700.0 | 632.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.52 | 207.85 | -9.65 | 159.01 | 0.4480 | 649.0 | 471.3 | |
| 0.00 | 2.42 | 0.00 | 1.33 | -16.69 | 207.90 | -9.60 | 158.38 | 0.4356 | 507.0 | 416.9 | |
| 0.00 | 5.46 | 0.00 | 2.98 | -15.87 | 207.91 | -9.59 | 157.66 | 0.4235 | 782.0 | 642.4 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -20.26 | 207.65 | -9.85 | 160.75 | 0.4885 | 761.0 | 577.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.96 | 207.85 | -9.65 | 158.52 | 0.4398 | 546.0 | 456.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.34 | 207.77 | -9.73 | 156.88 | 0.4167 | 532.0 | 427.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -12.91 | 207.69 | -9.81 | 154.10 | 0.3818 | -846.0 | -708.3 | |
| 7.25 | 23.73 | 3.95 | 12.93 | -15.29 | 207.39 | -10.11 | 156.02 | 0.4183 | 943.0 | 434.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -13.98 | 207.42 | -10.08 | 154.72 | 0.3992 | 653.0 | 566.4 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -13.30 | 207.36 | -10.14 | 153.81 | 0.3898 | -795.0 | -525.7 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -14.87 | 207.19 | -10.31 | 155.16 | 0.4135 | 861.0 | 669.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -15.79 | 206.89 | -10.61 | 155.48 | 0.4288 | 630.0 | 526.9 | |
| 0.00 | 3.13 | 0.00 | 1.72 | -15.83 | 206.63 | -10.87 | 154.99 | 0.4310 | 661.0 | 562.5 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -15.63 | 206.61 | -10.89 | 154.75 | 0.4284 | 756.0 | 538.1 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -16.03 | 206.59 | -10.91 | 155.11 | 0.4341 | 163.0 | 224.4 | |
| 0.90 | 30.54 | 0.50 | 16.93 | -16.73 | 206.29 | -11.21 | 155.21 | 0.4460 | -984.9 | -368.5 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -17.43 | 206.24 | -11.26 | 155.80 | 0.4562 | 632.0 | 459.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -13.78 | 206.16 | -11.34 | 151.78 | 0.4054 | -825.0 | -637.4 | |
| 1.16 | 6.00 | 0.63 | 3.24 | -13.43 | 206.15 | -11.35 | 151.32 | 0.4005 | 981.1 | 633.1 | |
| 0.90 | -41.00 | 0.48 | -41.00 | -13.40 | 206.02 | -11.48 | 151.01 | 0.4011 | 1008.1 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -13.76 | 206.01 | -11.49 | 151.41 | 0.4062 | -737.0 | -480.8 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -14.64 | 205.90 | -11.60 | 152.22 | 0.4193 | -918.0 | -697.3 | |
| 3.85 | -38.00 | 2.14 | -38.00 | -16.78 | 205.61 | -11.89 | 153.96 | 0.4513 | -1087.7 | 999999 | |
| 0.00 | 5.02 | 0.00 | 2.76 | -15.53 | 205.59 | -11.91 | 152.60 | 0.4340 | -740.0 | -676.7 | |
| 2.24 | 5.10 | 1.22 | 2.79 | -14.74 | 205.60 | -11.90 | 151.75 | 0.4230 | -1005.5 | -888.0 | |
| 0.00 | 4.48 | 0.00 | 2.45 | -15.04 | 205.39 | -12.11 | 151.67 | 0.4287 | -840.0 | -812.8 | |
| 0.00 | 3.31 | 0.00 | 1.80 | -14.04 | 205.13 | -12.37 | 149.96 | 0.4169 | 304.0 | 34.0 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -16.01 | 204.66 | -12.84 | 151.35 | 0.4475 | -893.0 | -722.3 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -14.21 | 204.74 | -12.76 | 149.39 | 0.4224 | -942.0 | -627.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.19 | 204.58 | -12.92 | 150.27 | 0.4370 | 674.0 | 541.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -16.15 | 204.42 | -13.08 | 151.06 | 0.4512 | -798.0 | -651.2 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -16.35 | 204.24 | -13.26 | 150.97 | 0.4552 | -1003.0 | -866.7 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -16.62 | 204.09 | -13.41 | 150.99 | 0.4600 | -677.0 | -583.7 | |
| 0.00 | 2.60 | 0.00 | 1.46 | -17.83 | 203.81 | -13.69 | 151.76 | 0.4783 | -610.0 | -495.5 | |
| 0.00 | 4.30 | 0.00 | 2.37 | -15.08 | 203.94 | -13.56 | 148.94 | 0.4405 | 560.0 | 519.2 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -17.00 | 203.68 | -13.82 | 150.65 | 0.4682 | -883.0 | -692.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -16.57 | 203.68 | -13.82 | 150.18 | 0.4624 | -952.0 | -789.6 | |
| 2.87 | 4.84 | 1.60 | 2.70 | -16.39 | 203.23 | -14.27 | 149.19 | 0.4634 | -1060.7 | -827.7 | |
| 0.63 | 14.06 | 0.35 | 7.77 | -14.72 | 203.13 | -14.37 | 146.98 | 0.4424 | -1042.6 | -772.2 | |
| 0.36 | -61.00 | 0.20 | -61.00 | -14.56 | 202.98 | -14.52 | 146.51 | 0.4416 | -1038.8 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -16.73 | 202.82 | -14.68 | 148.85 | 0.4712 | -667.0 | -653.0 | |
| 0.63 | -61.00 | 0.35 | -61.00 | -14.85 | 202.89 | -14.61 | 146.73 | 0.4462 | -1041.7 | 999999 | |
| 6.00 | 201.14 | 3.36 | 112.56 | -16.48 | 202.51 | -14.99 | 148.03 | 0.4704 | -907.1 | -541.2 | |
| 1.79 | -65.00 | 1.00 | -65.00 | -16.05 | 202.51 | -14.99 | 147.53 | 0.4648 | -1165.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.07 | 202.43 | -15.07 | 148.58 | 0.4788 | -787.0 | -615.8 | |
| 1.61 | -65.00 | 0.90 | -65.00 | -16.35 | 202.23 | -15.27 | 147.40 | 0.4711 | -1007.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.38 | 202.14 | -15.36 | 148.45 | 0.4851 | -833.0 | -738.2 | |
| 2.69 | -65.00 | 1.50 | -65.00 | -15.89 | 202.23 | -15.27 | 146.86 | 0.4652 | -1206.8 | 999999 | |
| 0.63 | -65.00 | 0.35 | -65.00 | -15.56 | 202.26 | -15.24 | 146.50 | 0.4607 | -1268.6 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -20.39 | 201.78 | -15.72 | 151.03 | 0.5264 | -679.0 | -565.0 | |
| 2.78 | 7.52 | 1.54 | 4.17 | -14.78 | 202.22 | -15.28 | 145.44 | 0.4511 | -1075.4 | -691.8 | |
| 8.78 | -65.00 | 4.91 | -65.00 | -15.80 | 201.94 | -15.56 | 146.26 | 0.4665 | -1194.7 | 999999 | |
| 2.15 | -65.00 | 1.21 | -65.00 | -16.30 | 201.90 | -15.60 | 146.79 | 0.4731 | -776.6 | 999999 | |
| 1.97 | -65.00 | 1.10 | -65.00 | -16.10 | 201.92 | -15.58 | 146.58 | 0.4705 | -996.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.56 | 201.73 | -15.77 | 147.97 | 0.4907 | -519.0 | -470.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -19.26 | 201.26 | -16.24 | 149.08 | 0.5158 | -694.0 | -547.6 | |
| 16.30 | -65.00 | 9.12 | -65.00 | -15.65 | 201.56 | -15.94 | 145.43 | 0.4678 | -1109.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -16.65 | 201.25 | -16.25 | 146.13 | 0.4831 | -626.0 | -467.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.59 | 201.00 | -16.50 | 146.83 | 0.4970 | -839.0 | -724.2 | |
| 0.00 | 2.51 | 0.00 | 1.40 | -14.52 | 201.20 | -16.30 | 143.34 | 0.4571 | -563.0 | -550.8 | |
| 0.00 | 2.06 | 0.00 | 1.19 | -18.63 | 200.83 | -16.67 | 147.74 | 0.5114 | -497.0 | -409.1 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -17.83 | 200.71 | -16.79 | 146.66 | 0.5024 | -574.0 | -415.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
