SDO HMI 2014-09-01 06:31:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.75 | 0.00 | 6.31 | 9.94 | 184.68 | -32.54 | 82.74 | 0.5367 | -335.9 | -383.3 | |
|
previous
or next observation for the same group /

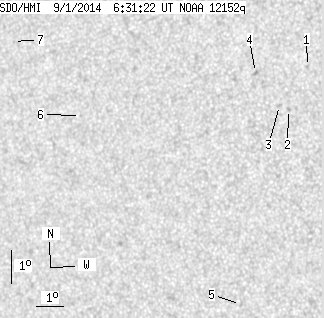

back to the solar disc SDO HMI 2014-09-01 06:31:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.77 | 11.88 | 186.96 | -30.26 | 78.72 | 0.5049 | -744.0 | -495.5 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 10.54 | 186.43 | -30.79 | 81.45 | 0.5109 | -899.0 | -680.3 | |
| 0.00 | 1.97 | 0.00 | 1.14 | 10.64 | 186.10 | -31.12 | 81.29 | 0.5159 | -690.0 | -460.4 | |
| 0.00 | 2.42 | 0.00 | 1.41 | 11.58 | 185.11 | -32.10 | 79.63 | 0.5314 | -676.0 | -572.0 | |
| 0.00 | 1.88 | 0.00 | 1.10 | 4.54 | 185.19 | -32.03 | 92.96 | 0.5315 | -538.0 | -372.4 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 9.82 | 178.73 | -38.49 | 83.24 | 0.6198 | 566.0 | 437.4 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 11.84 | 175.70 | -41.52 | 80.22 | 0.6606 | 630.0 | 499.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
