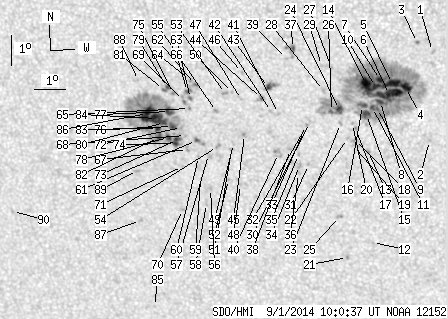

SDO HMI 2014-09-01 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.58 | 709.25 | 72.21 | 385.80 | -15.29 | 206.36 | -8.95 | 158.95 | 0.4134 | 5.0 | 99.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.95 | -13.40 | 210.66 | -4.65 | 167.35 | 0.3616 | 783.0 | 659.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.31 | 210.50 | -4.81 | 168.58 | 0.4081 | 804.0 | 642.7 | |
| 0.00 | 1.61 | 0.00 | 0.85 | -13.12 | 210.20 | -5.11 | 165.95 | 0.3588 | 943.0 | 818.6 | |
| 6.45 | 398.08 | 3.46 | 213.97 | -14.58 | 209.79 | -5.52 | 165.89 | 0.3835 | 1195.6 | 442.7 | |
| 10.74 | -4.00 | 5.76 | -4.00 | -14.46 | 209.38 | -5.93 | 164.81 | 0.3832 | 1448.4 | 999999 | |
| 18.71 | -4.00 | 10.06 | -4.00 | -14.82 | 209.28 | -6.03 | 164.81 | 0.3892 | 1109.8 | 999999 | |
| 3.04 | -4.00 | 1.63 | -4.00 | -14.33 | 209.01 | -6.30 | 163.81 | 0.3828 | 1489.4 | 999999 | |
| 2.95 | -4.00 | 1.59 | -4.00 | -15.05 | 208.99 | -6.32 | 164.28 | 0.3941 | 861.1 | 999999 | |
| 0.81 | -4.00 | 0.43 | -4.00 | -15.28 | 208.88 | -6.42 | 164.20 | 0.3981 | 656.9 | 999999 | |
| 3.31 | -4.00 | 1.78 | -4.00 | -14.56 | 208.84 | -6.46 | 163.58 | 0.3871 | 1395.0 | 999999 | |
| 2.24 | -4.00 | 1.21 | -4.00 | -15.25 | 208.73 | -6.58 | 163.81 | 0.3983 | 943.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.75 | 208.56 | -6.75 | 166.25 | 0.4675 | -532.0 | -425.2 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -16.70 | 208.55 | -6.76 | 164.42 | 0.4213 | 805.0 | 702.4 | |
| 10.65 | -4.00 | 5.72 | -4.00 | -14.50 | 208.56 | -6.74 | 162.86 | 0.3875 | 1251.0 | 999999 | |
| 4.48 | -4.00 | 2.42 | -4.00 | -15.48 | 208.53 | -6.78 | 163.53 | 0.4027 | 865.5 | 999999 | |
| 2.95 | -4.00 | 1.59 | -4.00 | -15.19 | 208.41 | -6.89 | 163.04 | 0.3988 | 899.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.95 | 208.17 | -7.14 | 163.04 | 0.4115 | 809.0 | 599.3 | |
| 0.00 | 3.22 | 0.00 | 1.76 | -16.34 | 208.12 | -7.19 | 163.22 | 0.4178 | 922.0 | 666.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.51 | 208.08 | -7.23 | 163.26 | 0.4205 | 609.0 | 527.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.78 | 208.08 | -7.23 | 162.72 | 0.4095 | 806.0 | 721.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -20.28 | 207.72 | -7.59 | 164.93 | 0.4785 | 777.0 | 685.7 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.28 | 207.90 | -7.41 | 162.69 | 0.4178 | 656.0 | 545.9 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -15.79 | 207.70 | -7.61 | 161.87 | 0.4114 | 635.0 | 529.4 | |
| 3.94 | -4.00 | 2.13 | -4.00 | -15.33 | 207.68 | -7.63 | 161.47 | 0.4045 | 984.3 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -18.89 | 207.53 | -7.78 | 163.72 | 0.4587 | 781.0 | 708.6 | |
| 0.98 | -4.00 | 0.53 | -4.00 | -15.40 | 207.43 | -7.88 | 160.95 | 0.4069 | 692.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -13.96 | 207.48 | -7.83 | 159.82 | 0.3849 | 732.0 | 512.2 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -14.72 | 207.20 | -8.11 | 159.85 | 0.3978 | 763.0 | 556.5 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -13.91 | 207.17 | -8.14 | 159.03 | 0.3857 | 617.0 | 455.8 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -15.77 | 206.71 | -8.60 | 159.70 | 0.4163 | 717.0 | 515.1 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.16 | 206.62 | -8.69 | 160.64 | 0.4374 | 741.0 | 551.2 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.88 | 206.61 | -8.70 | 159.57 | 0.4183 | 739.0 | 564.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.07 | 206.51 | -8.80 | 159.51 | 0.4219 | 458.0 | 318.4 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -17.20 | 206.32 | -8.98 | 160.08 | 0.4395 | 678.0 | 610.0 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.84 | 206.31 | -9.00 | 159.75 | 0.4342 | -902.0 | -735.1 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -17.47 | 206.28 | -9.03 | 160.20 | 0.4437 | 489.0 | 433.3 | |
| 1.25 | 7.88 | 0.67 | 4.23 | -13.37 | 206.31 | -9.00 | 156.47 | 0.3830 | 902.4 | 430.7 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.68 | 206.06 | -9.25 | 159.10 | 0.4332 | -913.0 | -745.5 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -13.70 | 206.07 | -9.24 | 156.28 | 0.3893 | -519.0 | -431.5 | |
| 0.00 | 5.82 | 0.00 | 3.20 | -16.82 | 205.67 | -9.64 | 158.42 | 0.4375 | -997.0 | -807.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -15.50 | 205.74 | -9.57 | 157.35 | 0.4178 | -758.0 | -665.4 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -15.44 | 205.52 | -9.79 | 156.83 | 0.4183 | -775.0 | -613.2 | |
| 2.60 | 7.88 | 1.41 | 4.27 | -14.65 | 205.46 | -9.85 | 155.92 | 0.4073 | -1044.1 | -782.0 | |
| 0.63 | 3.22 | 0.34 | 1.75 | -15.02 | 205.22 | -10.09 | 155.78 | 0.4141 | -883.4 | -740.2 | |
| 0.00 | 2.06 | 0.00 | 1.13 | -16.21 | 204.61 | -10.69 | 155.72 | 0.4352 | -933.0 | -668.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -14.18 | 204.66 | -10.65 | 153.68 | 0.4059 | -780.0 | -601.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.07 | 204.58 | -10.73 | 154.48 | 0.4190 | 682.0 | 482.7 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.88 | 204.38 | -10.92 | 156.84 | 0.4604 | -756.0 | -558.0 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -16.52 | 204.24 | -11.07 | 155.29 | 0.4420 | -736.0 | -675.1 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.84 | 204.31 | -11.00 | 153.67 | 0.4178 | 752.0 | 551.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -16.72 | 204.17 | -11.14 | 155.33 | 0.4453 | -758.0 | -602.2 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.72 | 204.01 | -11.30 | 155.98 | 0.4605 | -771.0 | -585.7 | |
| 0.00 | 2.33 | 0.00 | 1.27 | -14.88 | 204.08 | -11.23 | 153.25 | 0.4199 | 838.0 | 637.7 | |
| 0.00 | 2.51 | 0.00 | 1.39 | -16.63 | 203.72 | -11.59 | 154.38 | 0.4470 | -857.0 | -733.2 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -15.48 | 203.76 | -11.55 | 153.26 | 0.4306 | 637.0 | 456.2 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -18.04 | 203.40 | -11.91 | 155.15 | 0.4688 | -800.0 | -657.8 | |
| 0.00 | 4.57 | 0.00 | 2.53 | -16.90 | 203.41 | -11.90 | 154.07 | 0.4529 | -149.0 | -365.1 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -18.54 | 203.23 | -12.07 | 155.32 | 0.4769 | -693.0 | -524.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.74 | 203.10 | -12.21 | 154.31 | 0.4667 | -713.0 | -500.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.98 | 203.08 | -12.22 | 153.53 | 0.4562 | -682.0 | -544.5 | |
| 1.07 | 5.19 | 0.60 | 2.88 | -16.45 | 203.05 | -12.25 | 152.93 | 0.4491 | -1034.6 | -740.6 | |
| 0.54 | 9.58 | 0.29 | 5.24 | -14.61 | 203.14 | -12.17 | 151.04 | 0.4231 | -1000.5 | -773.8 | |
| 0.63 | -62.00 | 0.34 | -62.00 | -15.07 | 202.95 | -12.36 | 151.20 | 0.4309 | -853.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -14.49 | 202.98 | -12.32 | 150.58 | 0.4225 | -902.0 | -808.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -15.40 | 202.90 | -12.41 | 151.48 | 0.4358 | -749.0 | -629.5 | |
| 1.16 | -62.00 | 0.64 | -62.00 | -14.85 | 202.87 | -12.44 | 150.78 | 0.4284 | -1005.2 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.49 | -16.76 | 202.74 | -12.57 | 152.66 | 0.4555 | -655.0 | -630.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -16.30 | 202.71 | -12.60 | 152.11 | 0.4494 | -737.0 | -661.6 | |
| 0.00 | 3.76 | 0.00 | 2.07 | -15.15 | 202.72 | -12.59 | 150.84 | 0.4336 | -857.0 | -776.9 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -18.77 | 202.43 | -12.88 | 154.11 | 0.4852 | -647.0 | -632.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.33 | 202.54 | -12.77 | 152.88 | 0.4647 | -616.0 | -472.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.03 | 202.60 | -12.71 | 151.62 | 0.4467 | -813.0 | -687.2 | |
| 2.15 | 179.70 | 1.19 | 99.57 | -16.43 | 202.44 | -12.87 | 151.76 | 0.4533 | -1028.6 | -444.0 | |
| 2.51 | -73.00 | 1.39 | -73.00 | -16.57 | 202.37 | -12.94 | 151.77 | 0.4557 | -818.6 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -14.93 | 202.41 | -12.90 | 149.99 | 0.4330 | -956.0 | -812.8 | |
| 3.85 | -73.00 | 2.13 | -73.00 | -16.01 | 202.31 | -13.00 | 151.05 | 0.4485 | -1122.5 | 999999 | |
| 5.01 | -73.00 | 2.77 | -73.00 | -15.52 | 202.24 | -13.06 | 150.37 | 0.4423 | -1151.9 | 999999 | |
| 2.69 | -73.00 | 1.49 | -73.00 | -16.38 | 202.15 | -13.15 | 151.17 | 0.4546 | -946.7 | 999999 | |
| 1.16 | 4.39 | 0.64 | 2.41 | -14.73 | 202.23 | -13.08 | 149.41 | 0.4318 | -1000.6 | -784.8 | |
| 3.04 | -73.00 | 1.69 | -73.00 | -15.89 | 202.06 | -13.25 | 150.44 | 0.4487 | -1181.1 | 999999 | |
| 0.54 | -79.00 | 0.30 | -79.00 | -14.80 | 202.10 | -13.21 | 149.24 | 0.4338 | -872.0 | 999999 | |
| 3.49 | -73.00 | 1.94 | -73.00 | -16.39 | 201.83 | -13.48 | 150.59 | 0.4572 | -779.1 | 999999 | |
| 2.15 | -73.00 | 1.19 | -73.00 | -16.09 | 201.82 | -13.49 | 150.23 | 0.4533 | -867.8 | 999999 | |
| 10.92 | -73.00 | 6.05 | -73.00 | -15.76 | 201.81 | -13.50 | 149.84 | 0.4490 | -1174.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -22.12 | 201.19 | -14.11 | 155.07 | 0.5380 | -642.0 | -460.3 | |
| 15.94 | -73.00 | 8.83 | -73.00 | -15.61 | 201.53 | -13.78 | 149.14 | 0.4491 | -1085.9 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -19.18 | 201.01 | -14.30 | 152.10 | 0.5004 | -687.0 | -513.2 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -14.53 | 201.31 | -14.00 | 147.43 | 0.4367 | -738.0 | -536.8 | |
| 0.00 | 2.06 | 0.00 | 1.16 | -17.50 | 201.06 | -14.25 | 150.45 | 0.4779 | -739.0 | -659.8 | |
| 0.00 | 1.61 | 0.00 | 0.94 | -19.03 | 196.75 | -18.56 | 145.38 | 0.5316 | -777.0 | -545.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
