SDO HMI 2014-09-01 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.02 | 688.05 | 72.16 | 372.99 | -15.27 | 206.40 | -7.81 | 161.46 | 0.4070 | 29.8 | 59.6 | |
|
previous
or next observation for the same group /

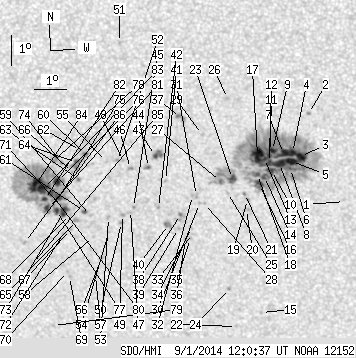

back to the solar disc SDO HMI 2014-09-01 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.24 | -16.01 | 211.30 | -2.91 | 172.93 | 0.3984 | 429.0 | 468.0 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -13.15 | 210.22 | -3.99 | 168.96 | 0.3553 | 981.0 | 865.9 | |
| 8.15 | 360.64 | 4.36 | 193.26 | -14.55 | 209.94 | -4.27 | 168.98 | 0.3785 | 1073.0 | 440.5 | |
| 4.30 | -3.00 | 2.30 | -3.00 | -14.42 | 209.69 | -4.52 | 168.29 | 0.3773 | 1429.6 | 999999 | |
| 7.43 | -3.00 | 3.98 | -3.00 | -14.71 | 209.66 | -4.55 | 168.35 | 0.3820 | 1059.3 | 999999 | |
| 0.98 | -3.00 | 0.53 | -3.00 | -14.94 | 209.62 | -4.59 | 168.39 | 0.3858 | 821.4 | 999999 | |
| 8.24 | -3.00 | 4.40 | -3.00 | -14.45 | 209.41 | -4.80 | 167.60 | 0.3788 | 1376.7 | 999999 | |
| 7.79 | -3.00 | 4.18 | -3.00 | -14.78 | 209.28 | -4.93 | 167.46 | 0.3844 | 1083.4 | 999999 | |
| 2.69 | -3.00 | 1.44 | -3.00 | -14.36 | 209.07 | -5.14 | 166.68 | 0.3785 | 1370.2 | 999999 | |
| 5.01 | -3.00 | 2.69 | -3.00 | -15.01 | 209.02 | -5.19 | 166.97 | 0.3890 | 827.0 | 999999 | |
| 3.49 | -3.00 | 1.87 | -3.00 | -14.75 | 208.96 | -5.25 | 166.67 | 0.3851 | 1133.5 | 999999 | |
| 1.61 | -3.00 | 0.86 | -3.00 | -14.52 | 208.97 | -5.24 | 166.54 | 0.3815 | 1290.0 | 999999 | |
| 1.88 | -3.00 | 1.01 | -3.00 | -14.62 | 208.81 | -5.40 | 166.21 | 0.3836 | 1232.5 | 999999 | |
| 3.04 | -3.00 | 1.64 | -3.00 | -15.21 | 208.80 | -5.41 | 166.54 | 0.3929 | 854.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.75 | 208.55 | -5.65 | 168.41 | 0.4637 | -725.0 | -600.1 | |
| 5.28 | -3.00 | 2.85 | -3.00 | -15.48 | 208.63 | -5.58 | 166.31 | 0.3976 | 803.2 | 999999 | |
| 11.46 | -3.00 | 6.14 | -3.00 | -14.53 | 208.59 | -5.62 | 165.62 | 0.3830 | 1169.5 | 999999 | |
| 1.88 | -3.00 | 1.01 | -3.00 | -15.15 | 208.58 | -5.63 | 165.98 | 0.3927 | 931.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.97 | 208.24 | -5.97 | 165.70 | 0.4069 | 708.0 | 532.7 | |
| 0.00 | 2.77 | 0.00 | 1.51 | -16.30 | 208.19 | -6.02 | 165.81 | 0.4122 | 782.0 | 628.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.78 | 208.15 | -6.06 | 165.38 | 0.4042 | 748.0 | 662.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.24 | 207.73 | -6.48 | 167.02 | 0.4737 | 724.0 | 566.1 | |
| 4.21 | 31.78 | 2.27 | 17.15 | -15.29 | 207.78 | -6.43 | 164.20 | 0.3982 | 940.0 | 369.2 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -18.95 | 207.55 | -6.66 | 166.00 | 0.4550 | 871.0 | 752.4 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.75 | 207.61 | -6.60 | 164.13 | 0.4061 | 549.0 | 427.9 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -12.69 | 207.70 | -6.51 | 161.95 | 0.3584 | -873.0 | -614.1 | |
| 1.07 | -23.00 | 0.58 | -23.00 | -15.39 | 207.40 | -6.81 | 163.39 | 0.4015 | 562.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.13 | 206.87 | -7.34 | 162.72 | 0.4151 | 658.0 | 542.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.87 | 206.89 | -7.32 | 160.94 | 0.3807 | 589.0 | 459.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.13 | 206.71 | -7.50 | 162.38 | 0.4159 | 607.0 | 465.6 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -15.87 | 206.62 | -7.59 | 161.99 | 0.4124 | 659.0 | 539.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.87 | 206.50 | -7.71 | 161.71 | 0.4130 | 561.0 | 447.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.12 | 206.44 | -7.76 | 162.54 | 0.4322 | 569.0 | 491.9 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.93 | 206.42 | -7.79 | 162.35 | 0.4293 | -753.0 | -591.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.29 | 206.37 | -7.84 | 162.51 | 0.4350 | 726.0 | 548.4 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.33 | 206.21 | -8.00 | 162.20 | 0.4364 | 609.0 | 494.4 | |
| 0.00 | 5.19 | 0.00 | 2.77 | -13.33 | 206.21 | -8.00 | 158.82 | 0.3762 | 920.0 | 688.9 | |
| 0.36 | 4.83 | 0.20 | 2.64 | -16.50 | 206.09 | -8.12 | 161.32 | 0.4246 | -951.5 | -695.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -16.97 | 206.00 | -8.21 | 161.50 | 0.4320 | -753.0 | -583.4 | |
| 0.00 | 4.65 | 0.00 | 2.55 | -16.84 | 205.69 | -8.52 | 160.74 | 0.4317 | -1022.0 | -821.6 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.39 | 205.66 | -8.55 | 159.46 | 0.4102 | -729.0 | -583.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.28 | 205.40 | -8.81 | 159.67 | 0.4250 | -917.0 | -784.5 | |
| 1.43 | 6.71 | 0.77 | 3.62 | -14.58 | 205.38 | -8.83 | 158.08 | 0.3998 | -1057.0 | -878.0 | |
| 0.54 | 2.51 | 0.29 | 1.36 | -14.97 | 205.14 | -9.07 | 157.93 | 0.4071 | -820.8 | -729.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.30 | 204.60 | -9.61 | 158.01 | 0.4297 | -844.0 | -709.5 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -15.02 | 204.57 | -9.64 | 156.73 | 0.4112 | 795.0 | 534.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.40 | 204.50 | -9.71 | 157.89 | 0.4318 | -335.0 | -512.0 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.76 | 204.35 | -9.85 | 156.01 | 0.4088 | 741.0 | 577.8 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -16.54 | 204.23 | -9.98 | 157.48 | 0.4354 | -926.0 | -775.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -16.80 | 204.19 | -10.02 | 157.63 | 0.4395 | -794.0 | -700.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -10.96 | 204.38 | -9.82 | 151.58 | 0.3536 | -493.0 | -461.9 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -14.77 | 204.16 | -10.05 | 155.61 | 0.4101 | 863.0 | 659.9 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -16.65 | 203.78 | -10.43 | 156.66 | 0.4397 | -947.0 | -735.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.14 | 203.75 | -10.46 | 157.07 | 0.4470 | -763.0 | -617.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.81 | 203.81 | -10.40 | 154.90 | 0.4131 | 441.0 | 344.9 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -17.98 | 203.47 | -10.74 | 157.28 | 0.4607 | -849.0 | -630.4 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -18.59 | 203.24 | -10.97 | 157.37 | 0.4707 | -636.0 | -520.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.29 | 203.26 | -10.95 | 156.24 | 0.4521 | -573.0 | -495.8 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -16.59 | 203.20 | -11.01 | 155.47 | 0.4426 | -707.0 | -510.2 | |
| 0.98 | 11.91 | 0.54 | 6.49 | -14.59 | 203.15 | -11.06 | 153.29 | 0.4146 | -990.5 | -800.8 | |
| 1.25 | 2.42 | 0.69 | 1.33 | -16.47 | 203.02 | -11.19 | 154.98 | 0.4420 | -913.9 | -800.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.47 | 203.00 | -11.21 | 152.83 | 0.4139 | -970.0 | -760.5 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -15.42 | 202.89 | -11.32 | 153.64 | 0.4281 | -846.0 | -735.9 | |
| 1.88 | -60.00 | 1.03 | -60.00 | -14.86 | 202.85 | -11.36 | 152.97 | 0.4205 | -977.3 | 999999 | |
| 0.00 | 3.13 | 0.00 | 1.73 | -16.77 | 202.74 | -11.47 | 154.75 | 0.4481 | -715.0 | -646.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -15.19 | 202.71 | -11.50 | 153.04 | 0.4262 | -881.0 | -693.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.08 | 202.53 | -11.68 | 154.64 | 0.4538 | -734.0 | -627.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.58 | 202.56 | -11.65 | 154.21 | 0.4466 | -643.0 | -495.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.65 | 202.39 | -11.82 | 155.86 | 0.4767 | -740.0 | -685.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.48 | 202.33 | -11.88 | 155.62 | 0.4747 | -787.0 | -664.1 | |
| 3.13 | 181.98 | 1.73 | 100.37 | -16.42 | 202.38 | -11.83 | 153.69 | 0.4456 | -991.9 | -500.3 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -17.21 | 202.29 | -11.92 | 154.34 | 0.4573 | -704.0 | -605.0 | |
| 2.69 | -71.00 | 1.49 | -71.00 | -16.55 | 202.30 | -11.91 | 153.69 | 0.4480 | -819.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -14.87 | 202.37 | -11.84 | 152.01 | 0.4242 | -962.0 | -813.2 | |
| 3.76 | -71.00 | 2.07 | -71.00 | -16.03 | 202.21 | -12.00 | 152.95 | 0.4414 | -1047.1 | 999999 | |
| 4.92 | -71.00 | 2.71 | -71.00 | -15.50 | 202.21 | -12.00 | 152.38 | 0.4341 | -1100.8 | 999999 | |
| 2.42 | -71.00 | 1.34 | -71.00 | -16.46 | 202.12 | -12.09 | 153.23 | 0.4480 | -804.5 | 999999 | |
| 0.00 | 5.10 | 0.00 | 2.79 | -14.78 | 202.15 | -12.06 | 151.47 | 0.4245 | -848.0 | -764.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.33 | 201.73 | -12.48 | 156.19 | 0.5039 | -532.0 | -356.6 | |
| 3.58 | -71.00 | 1.97 | -71.00 | -15.90 | 201.99 | -12.22 | 152.40 | 0.4412 | -1133.7 | 999999 | |
| 3.13 | -71.00 | 1.74 | -71.00 | -16.40 | 201.83 | -12.38 | 152.63 | 0.4492 | -768.8 | 999999 | |
| 2.06 | -71.00 | 1.14 | -71.00 | -16.10 | 201.75 | -12.46 | 152.17 | 0.4457 | -793.9 | 999999 | |
| 9.94 | -71.00 | 5.48 | -71.00 | -15.74 | 201.74 | -12.47 | 151.75 | 0.4408 | -1142.3 | 999999 | |
| 12.44 | -71.00 | 6.86 | -71.00 | -15.62 | 201.49 | -12.72 | 151.14 | 0.4410 | -1076.5 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.56 | -18.24 | 201.21 | -13.00 | 153.38 | 0.4788 | -634.0 | -502.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -17.55 | 201.00 | -13.21 | 152.32 | 0.4709 | -775.0 | -673.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
