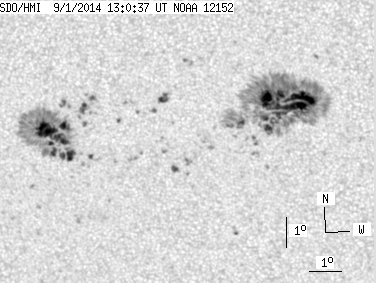

SDO HMI 2014-09-01 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.86 | 709.48 | 67.69 | 384.09 | -15.24 | 206.52 | -7.14 | 163.00 | 0.4036 | -16.1 | 88.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.96 | -15.78 | 211.57 | -2.09 | 174.86 | 0.3934 | 703.0 | 503.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.96 | 210.57 | -3.09 | 171.33 | 0.3497 | 888.0 | 728.3 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -16.28 | 210.43 | -3.23 | 172.25 | 0.4034 | 479.0 | 367.5 | |
| 0.00 | 1.61 | 0.00 | 0.85 | -13.12 | 210.23 | -3.43 | 170.46 | 0.3532 | 920.0 | 717.0 | |
| 16.56 | 406.50 | 8.85 | 217.73 | -14.45 | 209.77 | -3.89 | 169.89 | 0.3759 | 1288.5 | 436.0 | |
| 15.84 | -5.00 | 8.48 | -5.00 | -14.75 | 209.57 | -4.09 | 169.54 | 0.3811 | 1057.9 | 999999 | |
| 1.88 | -5.00 | 1.01 | -5.00 | -14.95 | 209.19 | -4.47 | 168.70 | 0.3855 | 757.0 | 999999 | |
| 4.83 | -5.00 | 2.58 | -5.00 | -14.36 | 209.08 | -4.58 | 168.10 | 0.3765 | 1294.4 | 999999 | |
| 2.24 | -5.00 | 1.20 | -5.00 | -14.98 | 209.00 | -4.66 | 168.25 | 0.3866 | 907.4 | 999999 | |
| 2.77 | -5.00 | 1.49 | -5.00 | -14.75 | 208.98 | -4.68 | 168.06 | 0.3831 | 1143.3 | 999999 | |
| 1.43 | -5.00 | 0.77 | -5.00 | -14.49 | 208.98 | -4.68 | 167.93 | 0.3789 | 1166.4 | 999999 | |
| 4.21 | -5.00 | 2.27 | -5.00 | -15.48 | 208.68 | -4.98 | 167.73 | 0.3955 | 801.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -16.73 | 208.61 | -5.05 | 168.25 | 0.4153 | 739.0 | 610.7 | |
| 12.53 | -5.00 | 6.71 | -5.00 | -14.53 | 208.64 | -5.02 | 167.08 | 0.3807 | 1181.4 | 999999 | |
| 3.04 | -5.00 | 1.64 | -5.00 | -15.12 | 208.59 | -5.07 | 167.32 | 0.3901 | 882.8 | 999999 | |
| 0.00 | 3.58 | 0.00 | 1.94 | -16.30 | 208.28 | -5.38 | 167.25 | 0.4098 | 841.0 | 642.6 | |
| 0.00 | 3.04 | 0.00 | 1.65 | -15.87 | 208.26 | -5.40 | 166.96 | 0.4032 | 459.0 | 597.9 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -15.81 | 207.97 | -5.69 | 166.27 | 0.4033 | 545.0 | 374.8 | |
| 2.06 | -5.00 | 1.11 | -5.00 | -15.29 | 207.83 | -5.83 | 165.61 | 0.3957 | 998.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.03 | 207.67 | -5.99 | 167.88 | 0.4690 | 472.0 | 398.1 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.07 | 207.78 | -5.88 | 166.56 | 0.4235 | 575.0 | 440.3 | |
| 0.00 | 3.49 | 0.00 | 1.94 | -18.88 | 207.52 | -6.14 | 167.01 | 0.4521 | 140.0 | 303.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.75 | 207.63 | -6.03 | 165.43 | 0.4037 | 647.0 | 444.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -12.69 | 207.68 | -5.98 | 163.34 | 0.3558 | -722.0 | -597.5 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.46 | 206.97 | -6.69 | 163.72 | 0.4020 | 389.0 | 264.4 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -16.12 | 206.82 | -6.84 | 163.85 | 0.4128 | 735.0 | 545.7 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.93 | 206.64 | -7.02 | 163.30 | 0.4106 | 579.0 | 494.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.73 | 206.46 | -7.20 | 162.75 | 0.4085 | 574.0 | 466.4 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -17.43 | 206.20 | -7.46 | 163.40 | 0.4353 | 600.0 | 472.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -13.39 | 206.32 | -7.34 | 160.47 | 0.3734 | 514.0 | 397.1 | |
| 0.00 | 3.94 | 0.00 | 2.15 | -16.60 | 206.07 | -7.58 | 162.54 | 0.4234 | -944.0 | -788.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.00 | 206.06 | -7.60 | 162.80 | 0.4295 | -685.0 | -593.3 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -13.30 | 206.13 | -7.53 | 159.93 | 0.3730 | 953.0 | 804.0 | |
| 1.97 | 3.76 | 1.08 | 2.06 | -16.84 | 205.65 | -8.01 | 161.81 | 0.4290 | -943.4 | -729.5 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.32 | 205.65 | -8.01 | 160.60 | 0.4063 | -748.0 | -612.6 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -16.28 | 205.36 | -8.30 | 160.75 | 0.4222 | -841.0 | -755.5 | |
| 3.04 | 7.70 | 1.64 | 4.15 | -14.57 | 205.36 | -8.30 | 159.29 | 0.3966 | -966.9 | -793.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -15.82 | 205.31 | -8.35 | 160.27 | 0.4155 | -818.0 | -675.3 | |
| 0.00 | 2.60 | 0.00 | 1.40 | -14.94 | 205.06 | -8.60 | 158.95 | 0.4038 | -881.0 | -734.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.36 | 204.62 | -9.04 | 159.25 | 0.4274 | -884.0 | -672.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.01 | 204.55 | -9.11 | 157.89 | 0.4079 | 711.0 | 582.1 | |
| 0.00 | 3.49 | 0.00 | 1.92 | -16.56 | 204.35 | -9.31 | 158.87 | 0.4318 | -622.0 | -675.9 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.69 | 204.19 | -9.47 | 156.78 | 0.4054 | 845.0 | 671.7 | |
| 0.54 | 1.70 | 0.29 | 0.93 | -15.29 | 203.94 | -9.72 | 156.82 | 0.4157 | 604.8 | 523.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.17 | 203.84 | -9.82 | 158.36 | 0.4436 | -802.0 | -583.1 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -16.64 | 203.77 | -9.89 | 157.75 | 0.4363 | -820.0 | -629.9 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.94 | 203.51 | -10.15 | 158.36 | 0.4567 | -814.0 | -627.1 | |
| 0.72 | 3.13 | 0.39 | 1.70 | -14.55 | 203.15 | -10.51 | 154.38 | 0.4102 | -1024.8 | -821.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -15.57 | 203.06 | -10.60 | 155.27 | 0.4253 | -475.0 | -393.0 | |
| 1.07 | 4.12 | 0.59 | 2.27 | -16.49 | 202.98 | -10.68 | 156.02 | 0.4391 | -919.5 | -608.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -15.05 | 203.06 | -10.60 | 154.72 | 0.4179 | -821.0 | -676.5 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.50 | 202.82 | -10.84 | 157.54 | 0.4686 | -614.0 | -560.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.83 | 202.89 | -10.76 | 156.17 | 0.4444 | -679.0 | -559.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.46 | 202.96 | -10.70 | 153.89 | 0.4102 | -868.0 | -706.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.39 | 203.01 | -10.65 | 152.77 | 0.3945 | -639.0 | -404.3 | |
| 1.43 | 7.61 | 0.78 | 4.14 | -14.82 | 202.88 | -10.78 | 154.11 | 0.4159 | -969.2 | -823.2 | |
| 0.45 | 2.33 | 0.24 | 1.27 | -15.44 | 202.84 | -10.81 | 154.70 | 0.4250 | -884.2 | -759.8 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -16.73 | 202.71 | -10.95 | 155.71 | 0.4442 | -784.0 | -661.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.40 | 202.69 | -10.96 | 155.37 | 0.4396 | -769.0 | -709.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -15.18 | 202.70 | -10.96 | 154.13 | 0.4223 | -915.0 | -755.7 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -18.64 | 202.46 | -11.20 | 156.98 | 0.4728 | -774.0 | -675.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.17 | 202.33 | -11.33 | 155.40 | 0.4529 | -494.0 | -500.2 | |
| 6.09 | 187.76 | 3.36 | 103.36 | -16.48 | 202.34 | -11.32 | 154.74 | 0.4430 | -911.6 | -468.3 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -14.87 | 202.40 | -11.26 | 153.16 | 0.4199 | -977.0 | -864.5 | |
| 3.94 | -63.00 | 2.16 | -63.00 | -15.49 | 202.17 | -11.49 | 153.39 | 0.4303 | -1146.6 | 999999 | |
| 4.03 | -63.00 | 2.22 | -63.00 | -16.02 | 202.14 | -11.52 | 153.89 | 0.4379 | -1094.8 | 999999 | |
| 2.42 | -63.00 | 1.34 | -63.00 | -16.48 | 202.08 | -11.58 | 154.24 | 0.4448 | -839.6 | 999999 | |
| 0.00 | 3.76 | 0.00 | 2.05 | -14.81 | 202.18 | -11.48 | 152.65 | 0.4206 | -878.0 | -882.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.39 | 201.74 | -11.92 | 157.18 | 0.5014 | -651.0 | -513.2 | |
| 5.01 | -63.00 | 2.76 | -63.00 | -15.89 | 201.95 | -11.71 | 153.39 | 0.4374 | -1103.7 | 999999 | |
| 3.40 | -63.00 | 1.88 | -63.00 | -16.39 | 201.79 | -11.87 | 153.60 | 0.4455 | -797.4 | 999999 | |
| 1.70 | -63.00 | 0.94 | -63.00 | -16.10 | 201.75 | -11.91 | 153.20 | 0.4417 | -791.2 | 999999 | |
| 10.38 | -63.00 | 5.71 | -63.00 | -15.70 | 201.71 | -11.95 | 152.70 | 0.4365 | -1133.4 | 999999 | |
| 11.28 | -63.00 | 6.20 | -63.00 | -15.61 | 201.49 | -12.17 | 152.18 | 0.4368 | -1079.0 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -18.20 | 201.18 | -12.48 | 154.27 | 0.4747 | -652.0 | -565.3 | |
| 0.00 | 2.60 | 0.00 | 1.47 | -19.04 | 201.12 | -12.54 | 154.95 | 0.4867 | -485.0 | -403.9 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -17.54 | 201.04 | -12.62 | 153.36 | 0.4666 | -849.0 | -667.7 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.63 | 200.33 | -13.33 | 153.19 | 0.4863 | -646.0 | -461.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
