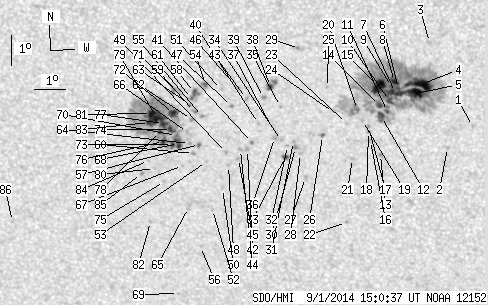

SDO HMI 2014-09-01 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.37 | 703.44 | 68.24 | 380.03 | -15.26 | 206.33 | -6.23 | 165.14 | 0.4002 | -16.8 | 64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.81 | 211.60 | -0.96 | 177.64 | 0.3927 | 825.0 | 615.5 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.51 | 210.81 | -1.75 | 175.83 | 0.4046 | 565.0 | 480.6 | |
| 0.00 | 2.06 | 0.00 | 1.09 | -13.08 | 210.28 | -2.28 | 173.62 | 0.3500 | 991.0 | 749.5 | |
| 18.88 | 354.83 | 10.07 | 189.61 | -14.44 | 209.98 | -2.57 | 173.27 | 0.3726 | 1318.8 | 457.5 | |
| 11.90 | -4.00 | 6.36 | -4.00 | -14.74 | 209.82 | -2.73 | 172.95 | 0.3777 | 1029.3 | 999999 | |
| 0.81 | -4.00 | 0.43 | -4.00 | -14.58 | 209.29 | -3.26 | 171.54 | 0.3763 | 1300.1 | 999999 | |
| 8.41 | -4.00 | 4.50 | -4.00 | -14.71 | 209.20 | -3.36 | 171.35 | 0.3786 | 1137.1 | 999999 | |
| 4.29 | -4.00 | 2.29 | -4.00 | -14.35 | 209.17 | -3.39 | 171.14 | 0.3729 | 1308.0 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -14.51 | 209.07 | -3.48 | 170.96 | 0.3758 | 1312.3 | 999999 | |
| 3.49 | -4.00 | 1.87 | -4.00 | -14.97 | 209.00 | -3.55 | 170.97 | 0.3833 | 909.2 | 999999 | |
| 1.25 | -4.00 | 0.67 | -4.00 | -15.33 | 208.93 | -3.62 | 170.95 | 0.3892 | 824.3 | 999999 | |
| 4.38 | -4.00 | 2.36 | -4.00 | -15.50 | 208.74 | -3.81 | 170.55 | 0.3923 | 789.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.75 | 208.68 | -3.87 | 170.94 | 0.4123 | 815.0 | 694.4 | |
| 2.95 | -4.00 | 1.58 | -4.00 | -15.14 | 208.69 | -3.87 | 170.26 | 0.3868 | 927.0 | 999999 | |
| 12.44 | -4.00 | 6.65 | -4.00 | -14.52 | 208.67 | -3.89 | 169.92 | 0.3769 | 1252.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.29 | 208.38 | -4.18 | 170.04 | 0.4058 | 854.0 | 657.9 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.83 | 208.33 | -4.23 | 169.70 | 0.3987 | 743.0 | 619.3 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.99 | 208.32 | -4.23 | 169.77 | 0.4013 | 640.0 | 600.2 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -15.63 | 208.14 | -4.42 | 169.17 | 0.3962 | 718.0 | 570.1 | |
| 0.54 | 35.34 | 0.29 | 18.99 | -15.27 | 207.99 | -4.56 | 168.63 | 0.3910 | 1029.7 | 382.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -16.89 | 207.79 | -4.76 | 168.97 | 0.4170 | 602.0 | 463.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.03 | 207.54 | -5.02 | 169.39 | 0.4509 | 792.0 | 659.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -15.74 | 207.63 | -4.92 | 168.01 | 0.3994 | 661.0 | 505.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -15.38 | 207.23 | -5.32 | 166.86 | 0.3952 | 243.0 | 266.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.56 | 207.07 | -5.49 | 165.95 | 0.3831 | 723.0 | 552.9 | |
| 0.54 | 2.33 | 0.29 | 1.26 | -16.14 | 206.86 | -5.69 | 166.45 | 0.4084 | 725.8 | 570.8 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -17.54 | 206.28 | -6.28 | 165.98 | 0.4322 | 686.0 | 546.7 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -16.74 | 206.15 | -6.41 | 165.21 | 0.4205 | -814.0 | -697.5 | |
| 0.00 | 4.29 | 0.00 | 2.29 | -13.31 | 206.22 | -6.33 | 162.92 | 0.3671 | 817.0 | 558.8 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -16.55 | 205.99 | -6.56 | 164.75 | 0.4181 | -929.0 | -799.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.35 | 205.94 | -6.62 | 164.49 | 0.4153 | -825.0 | -691.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.48 | 205.74 | -6.81 | 164.15 | 0.4182 | -774.0 | -658.6 | |
| 1.79 | 3.13 | 0.98 | 1.71 | -16.85 | 205.67 | -6.89 | 164.23 | 0.4241 | -873.5 | -653.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.32 | 205.56 | -7.00 | 163.63 | 0.4166 | -718.0 | -567.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.20 | 205.57 | -6.99 | 162.83 | 0.3994 | -672.0 | -525.3 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -16.23 | 205.34 | -7.22 | 163.08 | 0.4161 | -892.0 | -815.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.86 | 205.26 | -7.30 | 162.63 | 0.4110 | -679.0 | -611.0 | |
| 2.42 | 7.78 | 1.30 | 4.18 | -14.56 | 205.27 | -7.28 | 161.63 | 0.3910 | -945.9 | -790.6 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -14.92 | 205.04 | -7.52 | 161.39 | 0.3977 | -972.0 | -763.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.77 | 204.85 | -7.71 | 161.65 | 0.4116 | -470.0 | -317.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.40 | 204.63 | -7.92 | 161.67 | 0.4221 | -727.0 | -671.9 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.64 | 204.46 | -8.09 | 161.48 | 0.4265 | -824.0 | -742.3 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -14.96 | 204.50 | -8.05 | 160.19 | 0.4011 | 761.0 | 644.8 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -16.64 | 204.24 | -8.32 | 161.01 | 0.4277 | -804.0 | -668.0 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -16.94 | 204.16 | -8.39 | 161.08 | 0.4325 | -703.0 | -553.8 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -14.61 | 204.23 | -8.33 | 159.26 | 0.3973 | 783.0 | 675.3 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.23 | 204.02 | -8.54 | 159.34 | 0.4078 | 776.0 | 634.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.18 | 203.83 | -8.72 | 160.58 | 0.4378 | -696.0 | -557.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.75 | 203.79 | -8.77 | 160.15 | 0.4316 | -967.0 | -776.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.95 | 203.60 | -8.96 | 160.72 | 0.4503 | -636.0 | -509.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -14.68 | 203.72 | -8.83 | 158.18 | 0.4013 | 622.0 | 453.5 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.66 | 203.24 | -9.32 | 160.55 | 0.4626 | -743.0 | -549.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.06 | 203.13 | -9.42 | 159.06 | 0.4398 | -670.0 | -606.4 | |
| 1.07 | 4.83 | 0.58 | 2.61 | -14.53 | 203.22 | -9.33 | 156.92 | 0.4021 | -1004.0 | -812.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.58 | 203.08 | -9.48 | 157.62 | 0.4184 | -719.0 | -502.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -19.92 | 202.77 | -9.78 | 160.61 | 0.4832 | -692.0 | -537.8 | |
| 0.63 | 1.88 | 0.34 | 1.03 | -16.50 | 202.94 | -9.62 | 158.17 | 0.4328 | -979.9 | -828.0 | |
| 2.15 | 9.04 | 1.16 | 4.90 | -14.79 | 202.86 | -9.69 | 156.40 | 0.4083 | -1029.2 | -807.8 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -15.42 | 202.83 | -9.72 | 156.95 | 0.4176 | -907.0 | -755.7 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -16.80 | 202.73 | -9.83 | 158.02 | 0.4384 | -759.0 | -688.9 | |
| 0.54 | -58.00 | 0.29 | -58.00 | -14.99 | 202.76 | -9.80 | 156.37 | 0.4119 | -1042.3 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -15.68 | 202.72 | -9.83 | 156.97 | 0.4221 | -909.0 | -728.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.19 | 202.68 | -9.87 | 156.41 | 0.4152 | -908.0 | -806.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.47 | 202.62 | -9.94 | 157.50 | 0.4343 | -887.0 | -782.9 | |
| 0.00 | 2.77 | 0.00 | 1.55 | -18.61 | 202.46 | -10.09 | 159.03 | 0.4660 | -772.0 | -644.9 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -16.11 | 202.57 | -9.98 | 157.07 | 0.4293 | -773.0 | -623.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -17.21 | 202.35 | -10.20 | 157.63 | 0.4465 | -659.0 | -598.1 | |
| 5.19 | 201.93 | 2.85 | 110.75 | -16.48 | 202.27 | -10.29 | 156.79 | 0.4365 | -940.2 | -463.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -21.55 | 201.93 | -10.62 | 160.30 | 0.5106 | -551.0 | -468.2 | |
| 0.54 | -68.00 | 0.29 | -68.00 | -16.22 | 202.22 | -10.34 | 156.44 | 0.4330 | -960.2 | 999999 | |
| 0.00 | 5.19 | 0.00 | 2.82 | -14.77 | 202.29 | -10.27 | 155.15 | 0.4118 | -849.0 | -819.2 | |
| 5.73 | -68.00 | 3.13 | -68.00 | -15.50 | 202.16 | -10.40 | 155.61 | 0.4230 | -1127.8 | 999999 | |
| 2.15 | -68.00 | 1.18 | -68.00 | -16.52 | 202.07 | -10.49 | 156.44 | 0.4383 | -796.1 | 999999 | |
| 3.94 | -68.00 | 2.16 | -68.00 | -16.02 | 202.07 | -10.49 | 155.95 | 0.4312 | -1088.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.76 | 201.74 | -10.82 | 156.93 | 0.4580 | -597.0 | -445.1 | |
| 3.22 | -68.00 | 1.77 | -68.00 | -16.43 | 201.79 | -10.77 | 155.78 | 0.4387 | -802.7 | 999999 | |
| 5.73 | -68.00 | 3.14 | -68.00 | -15.83 | 201.82 | -10.74 | 155.26 | 0.4300 | -1171.9 | 999999 | |
| 1.88 | -68.00 | 1.03 | -68.00 | -16.10 | 201.71 | -10.85 | 155.30 | 0.4346 | -876.8 | 999999 | |
| 8.50 | -68.00 | 4.66 | -68.00 | -15.67 | 201.64 | -10.92 | 154.73 | 0.4290 | -1227.4 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.33 | 201.44 | -11.11 | 155.97 | 0.4537 | -748.0 | -588.1 | |
| 6.71 | -68.00 | 3.67 | -68.00 | -15.51 | 201.45 | -11.10 | 154.19 | 0.4280 | -1235.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -19.11 | 201.19 | -11.36 | 157.10 | 0.4804 | -718.0 | -609.7 | |
| 4.03 | -68.00 | 2.21 | -68.00 | -15.81 | 201.37 | -11.18 | 154.34 | 0.4327 | -869.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.07 | 201.27 | -11.29 | 155.38 | 0.4512 | -626.0 | -501.6 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -17.51 | 201.01 | -11.55 | 155.32 | 0.4590 | -783.0 | -648.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -19.25 | 196.63 | -15.93 | 149.55 | 0.5132 | -478.0 | -472.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
