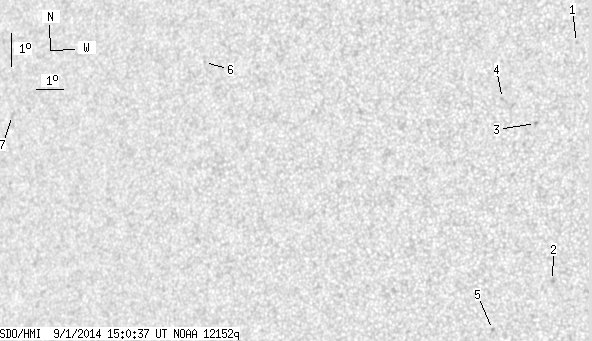

SDO HMI 2014-09-01 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.44 | 0.00 | 6.87 | 9.29 | 179.21 | -33.35 | 83.93 | 0.5422 | -440.6 | -276.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.64 | 13.20 | 187.66 | -24.89 | 74.19 | 0.4277 | -721.0 | -578.7 | |
| 0.00 | 2.24 | 0.00 | 1.22 | 5.96 | 187.41 | -25.15 | 91.30 | 0.4245 | -737.0 | -649.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 10.67 | 186.51 | -26.05 | 80.36 | 0.4395 | -840.0 | -688.5 | |
| 0.00 | 1.52 | 0.00 | 0.85 | 11.37 | 185.30 | -27.26 | 79.09 | 0.4591 | -738.0 | -593.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 4.37 | 185.44 | -27.11 | 94.46 | 0.4577 | -699.0 | -601.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 11.74 | 174.27 | -38.28 | 80.11 | 0.6180 | 557.0 | 464.0 | |
| 0.00 | 3.04 | 0.00 | 2.15 | 9.50 | 166.65 | -45.90 | 83.72 | 0.7149 | 94.0 | 177.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
