SDO HMI 2014-09-01 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.93 | 679.59 | 74.92 | 366.36 | -15.23 | 206.42 | -5.03 | 167.96 | 0.3955 | -61.2 | 64.2 | |
|
previous
or next observation for the same group /

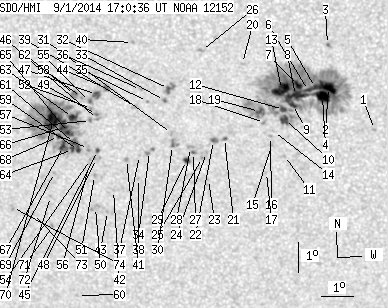

back to the solar disc SDO HMI 2014-09-01 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.80 | 211.63 | 0.17 | 180.43 | 0.3924 | 737.0 | 639.4 | |
| 12.70 | 384.70 | 6.77 | 205.45 | -14.43 | 210.19 | -1.26 | 176.69 | 0.3707 | 1384.7 | 467.0 | |
| 0.36 | 1.16 | 0.19 | 0.61 | -13.04 | 210.17 | -1.28 | 176.39 | 0.3480 | 950.8 | 798.8 | |
| 11.72 | -2.00 | 6.26 | -2.00 | -14.72 | 210.00 | -1.45 | 176.24 | 0.3756 | 1068.2 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -14.43 | 209.78 | -1.67 | 175.63 | 0.3711 | 1495.7 | 999999 | |
| 1.43 | -2.00 | 0.76 | -2.00 | -14.53 | 209.56 | -1.89 | 175.08 | 0.3730 | 1196.2 | 999999 | |
| 4.11 | -2.00 | 2.19 | -2.00 | -14.37 | 209.25 | -2.20 | 174.22 | 0.3709 | 1401.4 | 999999 | |
| 14.94 | -2.00 | 7.98 | -2.00 | -14.69 | 209.16 | -2.30 | 174.06 | 0.3763 | 1146.4 | 999999 | |
| 3.13 | -2.00 | 1.68 | -2.00 | -14.99 | 209.06 | -2.39 | 173.90 | 0.3812 | 865.7 | 999999 | |
| 5.01 | -2.00 | 2.69 | -2.00 | -15.48 | 208.80 | -2.65 | 173.40 | 0.3896 | 843.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.67 | 208.78 | -2.67 | 173.71 | 0.4085 | 580.0 | 511.6 | |
| 2.86 | -2.00 | 1.53 | -2.00 | -15.15 | 208.77 | -2.68 | 173.23 | 0.3844 | 938.5 | 999999 | |
| 14.94 | -2.00 | 7.97 | -2.00 | -14.50 | 208.72 | -2.73 | 172.88 | 0.3740 | 1290.2 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -15.88 | 208.45 | -3.00 | 172.67 | 0.3966 | 728.0 | 582.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.34 | 208.38 | -3.07 | 172.65 | 0.4041 | 703.0 | 607.7 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.04 | 208.35 | -3.10 | 172.49 | 0.3994 | 839.0 | 565.1 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.23 | 208.20 | -3.25 | 172.54 | 0.4186 | 618.0 | 538.3 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -15.58 | 208.17 | -3.28 | 171.89 | 0.3925 | 724.0 | 594.9 | |
| 2.59 | -2.00 | 1.39 | -2.00 | -15.22 | 208.02 | -3.43 | 171.38 | 0.3871 | 972.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -13.66 | 207.52 | -3.94 | 169.38 | 0.3635 | -784.0 | -585.9 | |
| 0.00 | 2.24 | 0.00 | 1.21 | -16.12 | 206.90 | -4.55 | 169.08 | 0.4043 | 778.0 | 650.8 | |
| 0.98 | 4.20 | 0.53 | 2.28 | -16.19 | 206.55 | -4.90 | 168.30 | 0.4065 | 706.7 | 604.6 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -17.48 | 206.35 | -5.10 | 168.51 | 0.4273 | 528.0 | 510.3 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -16.59 | 206.32 | -5.13 | 167.98 | 0.4135 | -622.0 | -488.6 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.75 | 206.19 | -5.27 | 167.77 | 0.4165 | -801.0 | -710.4 | |
| 0.00 | 2.24 | 0.00 | 1.19 | -13.26 | 206.24 | -5.21 | 165.79 | 0.3614 | 847.0 | 729.3 | |
| 0.45 | 1.52 | 0.24 | 0.83 | -16.59 | 205.90 | -5.55 | 167.05 | 0.4150 | -839.6 | -719.2 | |
| 0.00 | 2.95 | 0.00 | 1.60 | -16.43 | 205.81 | -5.64 | 166.75 | 0.4128 | -703.0 | -687.7 | |
| 2.33 | 3.76 | 1.27 | 2.05 | -16.86 | 205.67 | -5.78 | 166.68 | 0.4200 | -882.8 | -686.6 | |
| 0.54 | 2.95 | 0.29 | 1.60 | -16.37 | 205.25 | -6.21 | 165.43 | 0.4140 | -962.7 | -873.9 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.97 | 205.23 | -6.22 | 165.13 | 0.4080 | -909.0 | -730.4 | |
| 0.81 | 7.78 | 0.43 | 4.17 | -14.50 | 205.18 | -6.27 | 164.00 | 0.3854 | -1105.7 | -831.5 | |
| 0.36 | 1.52 | 0.19 | 0.82 | -14.89 | 205.04 | -6.41 | 163.96 | 0.3921 | -878.2 | -710.3 | |
| 0.00 | 3.76 | 0.00 | 2.05 | -16.58 | 204.51 | -6.94 | 163.93 | 0.4203 | -628.0 | -797.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.93 | 204.50 | -6.95 | 162.72 | 0.3952 | 670.0 | 589.3 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -14.55 | 204.30 | -7.15 | 161.93 | 0.3902 | 774.0 | 581.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.71 | 204.18 | -7.27 | 163.32 | 0.4238 | -855.0 | -722.8 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.48 | 204.12 | -7.33 | 163.71 | 0.4357 | -782.0 | -493.0 | |
| 0.00 | 2.33 | 0.00 | 1.26 | -15.10 | 204.09 | -7.36 | 161.89 | 0.3998 | 664.0 | 646.6 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -13.03 | 204.09 | -7.36 | 160.10 | 0.3681 | -795.0 | -686.9 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -16.85 | 203.76 | -7.69 | 162.52 | 0.4279 | -948.0 | -752.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.89 | 203.30 | -8.15 | 162.30 | 0.4456 | -658.0 | -450.9 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.60 | 203.07 | -8.38 | 162.35 | 0.4572 | -736.0 | -607.1 | |
| 1.52 | 3.94 | 0.82 | 2.12 | -14.53 | 203.22 | -8.23 | 159.42 | 0.3957 | -952.0 | -774.8 | |
| 0.98 | 1.88 | 0.54 | 1.03 | -16.57 | 202.85 | -8.60 | 160.36 | 0.4282 | -882.5 | -763.4 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -15.55 | 202.90 | -8.55 | 159.60 | 0.4128 | -810.0 | -685.0 | |
| 2.95 | 8.77 | 1.59 | 4.74 | -14.73 | 202.90 | -8.55 | 158.87 | 0.4005 | -1029.7 | -875.4 | |
| 0.00 | 2.86 | 0.00 | 1.57 | -16.84 | 202.81 | -8.64 | 160.48 | 0.4324 | -401.0 | -659.1 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -15.39 | 202.87 | -8.58 | 159.40 | 0.4105 | -1024.0 | -897.2 | |
| 0.00 | 4.56 | 0.00 | 2.54 | -18.47 | 202.69 | -8.76 | 161.51 | 0.4571 | -818.0 | -740.9 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -17.40 | 202.72 | -8.74 | 160.74 | 0.4412 | -825.0 | -659.6 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.19 | 202.72 | -8.73 | 158.90 | 0.4084 | -973.0 | -845.3 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -15.59 | 202.67 | -8.78 | 159.14 | 0.4146 | -883.0 | -697.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.87 | 202.61 | -8.84 | 160.11 | 0.4339 | -701.0 | -619.1 | |
| 0.54 | -47.00 | 0.29 | -47.00 | -14.96 | 202.67 | -8.78 | 158.57 | 0.4054 | -1052.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.01 | 202.58 | -8.88 | 160.14 | 0.4361 | -633.0 | -506.4 | |
| 0.00 | 2.59 | 0.00 | 1.42 | -16.51 | 202.57 | -8.88 | 159.71 | 0.4288 | -822.0 | -772.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.84 | 202.42 | -9.03 | 157.90 | 0.4049 | -872.0 | -726.3 | |
| 1.88 | 182.83 | 1.03 | 99.91 | -16.58 | 202.24 | -9.21 | 159.10 | 0.4317 | -855.2 | -502.3 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -21.48 | 201.93 | -9.53 | 162.15 | 0.5044 | -608.0 | -470.2 | |
| 1.70 | -59.00 | 0.93 | -59.00 | -16.35 | 202.13 | -9.32 | 158.66 | 0.4290 | -1104.3 | 999999 | |
| 0.00 | 5.46 | 0.00 | 2.95 | -14.75 | 202.20 | -9.25 | 157.33 | 0.4049 | -1024.0 | -896.1 | |
| 4.47 | -59.00 | 2.43 | -59.00 | -15.50 | 202.11 | -9.35 | 157.84 | 0.4166 | -1165.0 | 999999 | |
| 2.06 | -59.00 | 1.13 | -59.00 | -16.55 | 202.05 | -9.40 | 158.68 | 0.4323 | -912.7 | 999999 | |
| 5.01 | -59.00 | 2.74 | -59.00 | -16.00 | 201.95 | -9.50 | 157.98 | 0.4247 | -1147.0 | 999999 | |
| 4.83 | -59.00 | 2.64 | -59.00 | -15.83 | 201.80 | -9.65 | 157.51 | 0.4233 | -1186.7 | 999999 | |
| 5.46 | -59.00 | 3.00 | -59.00 | -16.46 | 201.77 | -9.68 | 158.02 | 0.4326 | -807.4 | 999999 | |
| 1.61 | -59.00 | 0.88 | -59.00 | -16.13 | 201.63 | -9.82 | 157.43 | 0.4287 | -833.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.33 | 201.44 | -10.02 | 158.11 | 0.4472 | -798.0 | -657.6 | |
| 26.39 | -59.00 | 14.40 | -59.00 | -15.58 | 201.50 | -9.95 | 156.62 | 0.4214 | -1189.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -19.14 | 201.26 | -10.19 | 159.28 | 0.4742 | -790.0 | -702.3 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.13 | 201.26 | -10.19 | 158.45 | 0.4598 | -842.0 | -609.5 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.72 | 200.67 | -10.78 | 157.84 | 0.4715 | -749.0 | -561.1 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -18.53 | 200.00 | -11.45 | 156.44 | 0.4729 | -629.0 | -586.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
