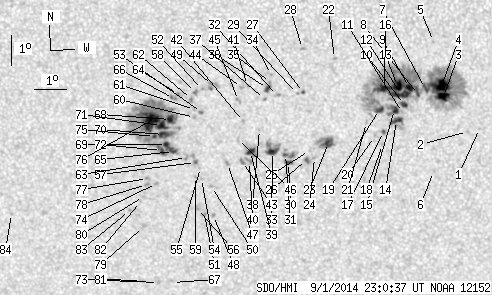

SDO HMI 2014-09-01 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.84 | 681.04 | 70.91 | 366.32 | -15.38 | 206.21 | -1.92 | 175.59 | 0.3915 | -98.7 | -2.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-01 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.80 | 211.71 | 3.57 | 188.73 | 0.3970 | 719.0 | 598.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.90 | 211.33 | 3.20 | 187.79 | 0.3976 | 567.0 | 443.8 | |
| 7.96 | 322.91 | 4.26 | 172.24 | -14.74 | 210.56 | 2.43 | 186.26 | 0.3776 | 1064.4 | 515.0 | |
| 12.70 | -3.00 | 6.77 | -3.00 | -14.38 | 210.50 | 2.36 | 186.20 | 0.3717 | 1428.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -12.96 | 210.24 | 2.10 | 185.92 | 0.3481 | 738.0 | 675.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -17.21 | 210.28 | 2.14 | 184.93 | 0.4167 | 690.0 | 610.2 | |
| 2.59 | -3.00 | 1.38 | -3.00 | -14.48 | 210.00 | 1.86 | 184.87 | 0.3725 | 1147.8 | 999999 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -14.67 | 209.78 | 1.65 | 184.27 | 0.3754 | 817.7 | 999999 | |
| 4.20 | -3.00 | 2.24 | -3.00 | -14.44 | 209.50 | 1.36 | 183.58 | 0.3713 | 1306.4 | 999999 | |
| 2.59 | -3.00 | 1.39 | -3.00 | -15.00 | 209.35 | 1.21 | 183.09 | 0.3802 | 826.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.26 | 209.28 | 1.15 | 182.90 | 0.3843 | 715.0 | 590.2 | |
| 9.84 | -3.00 | 5.25 | -3.00 | -14.67 | 209.25 | 1.12 | 182.89 | 0.3748 | 1001.2 | 999999 | |
| 7.16 | -3.00 | 3.81 | -3.00 | -14.38 | 209.12 | 0.99 | 182.60 | 0.3699 | 1380.4 | 999999 | |
| 4.29 | 12.08 | 2.31 | 6.49 | -15.52 | 209.10 | 0.96 | 182.40 | 0.3884 | 862.0 | 408.1 | |
| 4.38 | -3.00 | 2.35 | -3.00 | -15.16 | 209.03 | 0.90 | 182.28 | 0.3826 | 949.1 | 999999 | |
| 5.10 | -3.00 | 2.72 | -3.00 | -14.47 | 208.72 | 0.58 | 181.53 | 0.3712 | 1157.4 | 999999 | |
| 0.63 | 1.97 | 0.34 | 1.06 | -15.88 | 208.69 | 0.55 | 181.36 | 0.3940 | 860.7 | 702.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.31 | 208.66 | 0.52 | 181.26 | 0.4009 | 661.0 | 512.6 | |
| 3.94 | -3.00 | 2.11 | -3.00 | -15.16 | 208.56 | 0.43 | 181.09 | 0.3823 | 890.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.04 | 208.41 | 0.27 | 180.66 | 0.3966 | 669.0 | 590.1 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -15.58 | 208.16 | 0.02 | 180.05 | 0.3891 | 644.0 | 475.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.50 | 207.16 | -0.97 | 177.33 | 0.3556 | -719.0 | -583.7 | |
| 6.26 | 17.53 | 3.38 | 9.47 | -16.24 | 206.96 | -1.18 | 177.16 | 0.4002 | 780.7 | 206.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.74 | 206.51 | -1.62 | 176.18 | 0.4086 | -611.0 | -544.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -16.51 | 206.36 | -1.78 | 175.77 | 0.4050 | 572.0 | 489.2 | |
| 0.89 | 3.58 | 0.49 | 1.94 | -16.81 | 206.26 | -1.88 | 175.59 | 0.4099 | -891.6 | -711.1 | |
| 0.63 | 1.61 | 0.33 | 0.86 | -14.60 | 206.19 | -1.95 | 174.94 | 0.3746 | 754.0 | 664.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -13.18 | 206.17 | -1.97 | 174.52 | 0.3515 | 850.0 | 654.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.64 | 206.00 | -2.14 | 174.46 | 0.3755 | 621.0 | 472.2 | |
| 1.88 | 14.13 | 1.02 | 7.67 | -16.91 | 205.69 | -2.45 | 174.29 | 0.4123 | -839.1 | -662.4 | |
| 0.98 | -30.00 | 0.53 | -30.00 | -16.64 | 205.60 | -2.54 | 174.01 | 0.4083 | -997.9 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.39 | -14.71 | 205.37 | -2.76 | 172.88 | 0.3777 | -773.0 | -644.5 | |
| 5.28 | 16.91 | 2.86 | 9.16 | -16.55 | 205.19 | -2.95 | 173.02 | 0.4075 | -1080.9 | -739.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.02 | 205.19 | -2.94 | 172.17 | 0.3670 | -815.0 | -696.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.28 | 205.16 | -2.98 | 172.18 | 0.3713 | -920.0 | -823.8 | |
| 2.15 | 4.03 | 1.15 | 2.15 | -14.48 | 205.06 | -3.07 | 172.00 | 0.3747 | -1013.9 | -830.0 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -14.84 | 204.96 | -3.17 | 171.89 | 0.3807 | -803.0 | -600.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.82 | 204.79 | -3.35 | 171.83 | 0.3968 | -466.0 | -447.1 | |
| 4.03 | 8.50 | 2.18 | 4.61 | -16.55 | 204.49 | -3.64 | 171.40 | 0.4090 | -1098.3 | -719.7 | |
| 0.00 | 3.94 | 0.00 | 2.14 | -16.88 | 204.45 | -3.68 | 171.44 | 0.4143 | -877.0 | -764.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.39 | 204.44 | -3.70 | 170.36 | 0.3747 | 694.0 | 599.0 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.56 | 204.29 | -3.84 | 170.52 | 0.3939 | 346.0 | 274.2 | |
| 0.00 | 2.33 | 0.00 | 1.27 | -16.88 | 204.23 | -3.90 | 170.93 | 0.4149 | -1018.0 | -809.8 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -14.45 | 204.25 | -3.89 | 169.91 | 0.3763 | 820.0 | 665.2 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -14.88 | 204.15 | -3.99 | 169.86 | 0.3834 | 797.0 | 625.0 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -16.16 | 204.09 | -4.05 | 170.30 | 0.4038 | -115.0 | -76.9 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -16.95 | 203.75 | -4.38 | 169.87 | 0.4173 | -1008.0 | -747.7 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -18.70 | 203.26 | -4.87 | 169.55 | 0.4457 | -810.0 | -645.9 | |
| 0.00 | 6.44 | 0.00 | 3.44 | -14.40 | 203.34 | -4.79 | 167.59 | 0.3782 | -745.0 | -765.1 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.72 | 203.23 | -4.91 | 169.05 | 0.4308 | -820.0 | -637.6 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -18.67 | 202.97 | -5.16 | 168.94 | 0.4461 | -762.0 | -611.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.53 | 203.03 | -5.11 | 166.88 | 0.3815 | -984.0 | -847.1 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -15.28 | 202.98 | -5.16 | 167.21 | 0.3935 | -880.0 | -724.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.46 | 202.91 | -5.22 | 168.24 | 0.4277 | -829.0 | -696.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.10 | 202.89 | -5.24 | 168.01 | 0.4221 | -457.0 | -469.2 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.47 | 202.76 | -5.38 | 168.39 | 0.4437 | -878.0 | -627.3 | |
| 0.63 | 4.47 | 0.34 | 2.44 | -16.93 | 202.74 | -5.40 | 167.58 | 0.4200 | -920.3 | -833.9 | |
| 0.00 | 2.77 | 0.00 | 1.49 | -14.63 | 202.80 | -5.33 | 166.40 | 0.3839 | -1162.0 | -873.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.40 | 202.73 | -5.41 | 167.79 | 0.4273 | -761.0 | -686.2 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -15.45 | 202.75 | -5.38 | 166.77 | 0.3969 | -886.0 | -606.1 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.18 | 202.76 | -5.38 | 166.63 | 0.3928 | -772.0 | -674.4 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -14.86 | 202.67 | -5.46 | 166.22 | 0.3880 | -1030.0 | -866.1 | |
| 0.00 | 2.50 | 0.00 | 1.36 | -16.77 | 202.46 | -5.68 | 166.87 | 0.4185 | -841.0 | -709.1 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -14.70 | 202.27 | -5.87 | 165.14 | 0.3871 | -1098.0 | -861.8 | |
| 0.27 | 184.53 | 0.15 | 99.98 | -16.57 | 202.05 | -6.08 | 165.84 | 0.4170 | -947.7 | -553.7 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -14.83 | 202.11 | -6.03 | 164.84 | 0.3898 | -939.0 | -801.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.99 | 201.85 | -6.28 | 167.78 | 0.4848 | -547.0 | -542.2 | |
| 4.29 | -65.00 | 2.32 | -65.00 | -15.52 | 201.99 | -6.14 | 165.03 | 0.4010 | -1195.4 | 999999 | |
| 2.77 | -65.00 | 1.51 | -65.00 | -16.35 | 201.84 | -6.30 | 165.22 | 0.4144 | -1078.9 | 999999 | |
| 5.81 | -65.00 | 3.15 | -65.00 | -16.02 | 201.75 | -6.38 | 164.82 | 0.4096 | -984.6 | 999999 | |
| 4.92 | -65.00 | 2.66 | -65.00 | -15.72 | 201.70 | -6.43 | 164.50 | 0.4053 | -1241.8 | 999999 | |
| 3.76 | -65.00 | 2.05 | -65.00 | -16.55 | 201.67 | -6.46 | 164.98 | 0.4181 | -831.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -21.00 | 201.39 | -6.74 | 166.93 | 0.4864 | -149.0 | -169.2 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -17.65 | 201.47 | -6.66 | 165.24 | 0.4357 | -849.0 | -618.8 | |
| 1.34 | -65.00 | 0.73 | -65.00 | -16.09 | 201.47 | -6.67 | 164.22 | 0.4119 | -812.7 | 999999 | |
| 20.30 | -65.00 | 10.99 | -65.00 | -15.56 | 201.36 | -6.78 | 163.60 | 0.4044 | -1244.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -17.48 | 201.19 | -6.94 | 164.54 | 0.4344 | -890.0 | -713.8 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -17.68 | 201.15 | -6.98 | 164.58 | 0.4376 | -788.0 | -687.3 | |
| 0.00 | 2.59 | 0.00 | 1.45 | -19.10 | 200.99 | -7.14 | 165.13 | 0.4595 | -665.0 | -564.2 | |
| 0.00 | 2.15 | 0.00 | 1.19 | -18.09 | 201.04 | -7.10 | 164.60 | 0.4441 | -654.0 | -488.8 | |
| 0.00 | 2.06 | 0.00 | 1.17 | -20.94 | 200.84 | -7.29 | 165.87 | 0.4875 | -586.0 | -497.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.26 | 200.94 | -7.20 | 164.50 | 0.4471 | -664.0 | -539.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.56 | 200.57 | -7.57 | 163.95 | 0.4533 | -744.0 | -576.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.74 | 196.74 | -11.40 | 156.74 | 0.4758 | -592.0 | -551.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
