SDO HMI 2014-09-02 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.49 | 705.50 | 71.29 | 379.32 | -15.37 | 206.25 | -1.33 | 177.03 | 0.3907 | -107.0 | 23.0 | |
|
previous
or next observation for the same group /

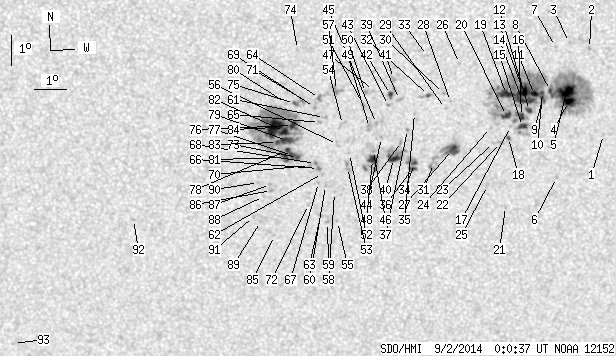

back to the solar disc SDO HMI 2014-09-02 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.80 | 211.73 | 4.14 | 190.09 | 0.3985 | 697.0 | 483.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.00 | 211.24 | 3.66 | 190.20 | 0.3524 | 844.0 | 673.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.80 | 210.62 | 3.03 | 188.58 | 0.3475 | 784.0 | 597.2 | |
| 6.53 | 134.46 | 3.49 | 71.79 | -14.71 | 210.61 | 3.02 | 187.79 | 0.3784 | 1109.5 | 474.0 | |
| 11.63 | -4.00 | 6.21 | -4.00 | -14.39 | 210.54 | 2.96 | 187.74 | 0.3730 | 1417.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.21 | 210.26 | 2.68 | 186.17 | 0.4176 | 790.0 | 576.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.93 | 210.18 | 2.60 | 187.32 | 0.3485 | 799.0 | 590.6 | |
| 1.07 | -4.00 | 0.57 | -4.00 | -14.35 | 210.04 | 2.46 | 186.45 | 0.3714 | 1125.5 | 999999 | |
| 2.42 | 183.03 | 1.29 | 97.63 | -14.61 | 209.79 | 2.21 | 185.73 | 0.3751 | 935.0 | 588.2 | |
| 0.98 | -9.00 | 0.52 | -9.00 | -14.41 | 209.79 | 2.21 | 185.78 | 0.3720 | 1184.5 | 999999 | |
| 3.58 | -9.00 | 1.91 | -9.00 | -14.48 | 209.54 | 1.96 | 185.12 | 0.3726 | 1338.9 | 999999 | |
| 2.42 | -9.00 | 1.29 | -9.00 | -15.00 | 209.39 | 1.81 | 184.61 | 0.3808 | 854.2 | 999999 | |
| 6.44 | -9.00 | 3.43 | -9.00 | -14.38 | 209.20 | 1.61 | 184.24 | 0.3706 | 1370.8 | 999999 | |
| 3.31 | -9.00 | 1.77 | -9.00 | -14.67 | 209.17 | 1.59 | 184.11 | 0.3753 | 1026.7 | 999999 | |
| 3.22 | 12.26 | 1.73 | 6.59 | -15.52 | 209.17 | 1.59 | 183.96 | 0.3890 | 881.0 | 405.1 | |
| 3.49 | -9.00 | 1.87 | -9.00 | -15.19 | 209.14 | 1.56 | 183.94 | 0.3837 | 967.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.52 | 208.80 | 1.21 | 183.02 | 0.3886 | 526.0 | 420.6 | |
| 0.89 | 2.06 | 0.48 | 1.11 | -15.88 | 208.74 | 1.15 | 182.82 | 0.3944 | 746.3 | 571.0 | |
| 8.05 | -9.00 | 4.29 | -9.00 | -14.47 | 208.67 | 1.08 | 182.84 | 0.3716 | 1131.6 | 999999 | |
| 4.20 | -9.00 | 2.25 | -9.00 | -15.16 | 208.67 | 1.09 | 182.75 | 0.3827 | 850.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.17 | 208.65 | 1.07 | 182.37 | 0.4309 | 616.0 | 530.3 | |
| 0.00 | 2.50 | 0.00 | 1.35 | -16.04 | 208.49 | 0.90 | 182.19 | 0.3969 | 768.0 | 594.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -16.04 | 208.27 | 0.68 | 181.66 | 0.3967 | 532.0 | 430.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.55 | 208.17 | 0.59 | 181.46 | 0.3887 | 434.0 | 393.3 | |
| 0.00 | 2.33 | 0.00 | 1.27 | -17.47 | 208.08 | 0.49 | 181.13 | 0.4194 | 732.0 | 558.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -13.46 | 207.20 | -0.38 | 178.95 | 0.3547 | -700.0 | -498.0 | |
| 8.23 | 18.70 | 4.45 | 10.10 | -16.27 | 206.97 | -0.61 | 178.53 | 0.4004 | 656.5 | 194.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.70 | 206.92 | -0.67 | 178.27 | 0.3750 | 765.0 | 515.9 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.93 | 206.76 | -0.82 | 177.89 | 0.3788 | 537.0 | 406.9 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.44 | 206.70 | -0.88 | 177.68 | 0.3709 | 808.0 | 665.0 | |
| 0.00 | 9.04 | 0.00 | 4.90 | -16.74 | 206.37 | -1.21 | 177.14 | 0.4082 | -524.0 | -333.3 | |
| 0.81 | 5.28 | 0.43 | 2.82 | -14.50 | 206.23 | -1.35 | 176.47 | 0.3723 | 902.7 | 520.6 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.21 | 206.21 | -1.37 | 176.17 | 0.3512 | 763.0 | 566.5 | |
| 1.70 | 13.24 | 0.92 | 7.18 | -16.74 | 205.77 | -1.81 | 175.73 | 0.4088 | -885.1 | -715.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -15.09 | 205.79 | -1.80 | 175.44 | 0.3823 | -484.0 | -430.5 | |
| 2.33 | -34.00 | 1.26 | -34.00 | -16.90 | 205.71 | -1.88 | 175.61 | 0.4115 | -825.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.62 | 205.56 | -2.02 | 175.00 | 0.3911 | -829.0 | -615.5 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -16.01 | 205.37 | -2.21 | 174.62 | 0.3977 | -136.0 | -170.7 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -14.64 | 205.32 | -2.26 | 174.14 | 0.3757 | -700.0 | -605.3 | |
| 6.08 | 20.31 | 3.30 | 10.99 | -16.57 | 205.11 | -2.47 | 174.14 | 0.4071 | -1087.2 | -680.9 | |
| 0.00 | 3.04 | 0.00 | 1.62 | -13.95 | 205.14 | -2.44 | 173.47 | 0.3649 | -913.0 | -698.6 | |
| 1.70 | 5.73 | 0.91 | 3.05 | -14.47 | 205.04 | -2.54 | 173.37 | 0.3735 | -993.7 | -787.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.83 | 204.98 | -2.61 | 173.32 | 0.3795 | -830.0 | -601.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.88 | 204.74 | -2.84 | 173.07 | 0.3967 | -519.0 | -376.2 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -15.42 | 204.59 | -2.99 | 172.55 | 0.3897 | 433.0 | 320.7 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -16.31 | 204.48 | -3.10 | 172.59 | 0.4041 | -632.0 | -432.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -14.35 | 204.51 | -3.07 | 171.96 | 0.3726 | 481.0 | 313.8 | |
| 6.17 | 16.10 | 3.35 | 8.74 | -16.61 | 204.45 | -3.14 | 172.60 | 0.4089 | -1093.0 | -747.7 | |
| 0.00 | 4.29 | 0.00 | 2.31 | -15.56 | 204.37 | -3.21 | 172.05 | 0.3923 | 238.0 | 282.2 | |
| 0.00 | 2.15 | 0.00 | 1.15 | -14.41 | 204.26 | -3.32 | 171.34 | 0.3742 | 867.0 | 716.2 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -14.81 | 204.19 | -3.39 | 171.32 | 0.3807 | 800.0 | 641.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -16.42 | 203.72 | -3.86 | 170.84 | 0.4075 | -755.0 | -530.0 | |
| 0.00 | 5.01 | 0.00 | 2.73 | -16.88 | 203.65 | -3.93 | 170.86 | 0.4150 | -677.0 | -746.5 | |
| 0.00 | 3.04 | 0.00 | 1.64 | -15.46 | 203.52 | -4.06 | 169.95 | 0.3929 | 192.0 | 175.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.69 | 203.29 | -4.30 | 170.76 | 0.4441 | -707.0 | -526.0 | |
| 0.00 | 2.42 | 0.00 | 1.31 | -16.12 | 203.35 | -4.23 | 169.84 | 0.4039 | -521.0 | -504.9 | |
| 0.00 | 5.90 | 0.00 | 3.15 | -14.36 | 203.36 | -4.23 | 169.00 | 0.3758 | -938.0 | -782.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.72 | 203.22 | -4.37 | 170.23 | 0.4292 | -733.0 | -565.3 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.73 | 202.97 | -4.62 | 170.10 | 0.4455 | -695.0 | -560.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.49 | 202.94 | -4.65 | 169.51 | 0.4264 | -829.0 | -677.4 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -15.24 | 202.96 | -4.62 | 168.48 | 0.3911 | -764.0 | -667.4 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -17.09 | 202.85 | -4.73 | 169.14 | 0.4204 | -576.0 | -571.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.49 | 202.75 | -4.84 | 169.55 | 0.4425 | -953.0 | -697.9 | |
| 0.00 | 3.13 | 0.00 | 1.68 | -14.62 | 202.82 | -4.77 | 167.79 | 0.3818 | -1030.0 | -798.8 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -15.41 | 202.80 | -4.78 | 168.18 | 0.3942 | -833.0 | -598.0 | |
| 0.36 | 1.61 | 0.19 | 0.88 | -16.92 | 202.73 | -4.86 | 168.79 | 0.4182 | -966.2 | -833.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.39 | 202.72 | -4.87 | 168.98 | 0.4255 | -655.0 | -623.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.76 | 202.64 | -4.95 | 168.50 | 0.4159 | -1037.0 | -915.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.92 | 202.65 | -4.93 | 167.55 | 0.3870 | -987.0 | -805.1 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.83 | 202.45 | -5.14 | 168.10 | 0.4176 | -814.0 | -763.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -14.79 | 202.50 | -5.08 | 167.10 | 0.3855 | -666.0 | -550.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.13 | 202.37 | -5.21 | 168.59 | 0.4380 | -670.0 | -495.4 | |
| 1.88 | 182.77 | 1.02 | 98.90 | -16.57 | 202.07 | -5.51 | 167.12 | 0.4148 | -982.7 | -558.4 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.04 | 202.17 | -5.42 | 165.10 | 0.3592 | -713.0 | -525.5 | |
| 0.72 | 6.80 | 0.38 | 3.65 | -14.79 | 202.03 | -5.56 | 165.96 | 0.3873 | -961.5 | -731.5 | |
| 4.20 | -73.00 | 2.27 | -73.00 | -15.51 | 201.95 | -5.64 | 166.21 | 0.3989 | -1212.5 | 999999 | |
| 3.22 | -73.00 | 1.75 | -73.00 | -16.50 | 201.92 | -5.67 | 166.73 | 0.4144 | -1075.0 | 999999 | |
| 2.15 | -73.00 | 1.17 | -73.00 | -16.34 | 201.76 | -5.82 | 166.29 | 0.4124 | -1069.8 | 999999 | |
| 6.80 | -73.00 | 3.68 | -73.00 | -16.01 | 201.74 | -5.84 | 166.04 | 0.4074 | -954.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.80 | 201.78 | -5.81 | 165.35 | 0.3884 | -195.0 | -181.9 | |
| 3.76 | -73.00 | 2.05 | -73.00 | -16.57 | 201.69 | -5.89 | 166.27 | 0.4163 | -820.6 | 999999 | |
| 4.47 | -73.00 | 2.42 | -73.00 | -15.71 | 201.69 | -5.90 | 165.73 | 0.4030 | -1241.0 | 999999 | |
| 2.15 | -73.00 | 1.16 | -73.00 | -16.08 | 201.45 | -6.13 | 165.43 | 0.4096 | -793.0 | 999999 | |
| 17.53 | -73.00 | 9.48 | -73.00 | -15.59 | 201.38 | -6.21 | 164.93 | 0.4023 | -1253.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.18 | 201.25 | -6.34 | 166.78 | 0.4578 | -655.0 | -500.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -17.67 | 201.21 | -6.38 | 165.86 | 0.4350 | -923.0 | -745.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.47 | 201.18 | -6.40 | 165.69 | 0.4321 | -837.0 | -684.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.88 | 200.94 | -6.64 | 165.43 | 0.4392 | -717.0 | -445.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.72 | 200.81 | -6.77 | 165.65 | 0.4524 | -750.0 | -651.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.41 | 200.80 | -6.78 | 164.84 | 0.4327 | -722.0 | -524.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.55 | 200.60 | -6.99 | 165.11 | 0.4508 | -721.0 | -539.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.73 | 196.71 | -10.88 | 157.68 | 0.4725 | -711.0 | -628.9 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -23.11 | 192.32 | -15.27 | 154.19 | 0.5585 | -306.0 | -283.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
