SDO HMI 2014-09-02 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 12.70 | 1.44 | 10.89 | -18.01 | 157.34 | -49.14 | 118.15 | 0.8179 | -179.9 | -186.7 | |
|
previous
or next observation for the same group /

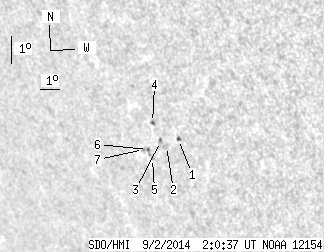

back to the solar disc SDO HMI 2014-09-02 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 1.88 | 0.67 | 1.57 | -17.76 | 158.39 | -48.09 | 118.35 | 0.8076 | 512.2 | 475.5 | |
| 0.00 | 3.22 | 0.00 | 2.74 | -18.06 | 157.70 | -48.78 | 118.37 | 0.8150 | -58.0 | -120.4 | |
| 0.00 | 1.70 | 0.00 | 1.45 | -17.91 | 157.46 | -49.02 | 118.10 | 0.8165 | -182.0 | -105.6 | |
| 0.54 | 1.34 | 0.46 | 1.14 | -17.31 | 157.30 | -49.18 | 117.34 | 0.8156 | 447.0 | 394.4 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -18.54 | 156.83 | -49.66 | 118.51 | 0.8245 | -550.0 | -453.3 | |
| 0.36 | 2.59 | 0.31 | 2.26 | -18.26 | 156.69 | -49.79 | 118.13 | 0.8246 | -736.2 | -588.5 | |
| 0.00 | 1.34 | 0.00 | 1.18 | -18.28 | 156.48 | -50.00 | 118.06 | 0.8265 | -580.0 | -495.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
