SDO HMI 2014-09-02 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.91 | 784.31 | 100.49 | 421.88 | -15.44 | 206.06 | 0.67 | 181.94 | 0.3916 | -63.9 | 14.2 | |
|
previous
or next observation for the same group /

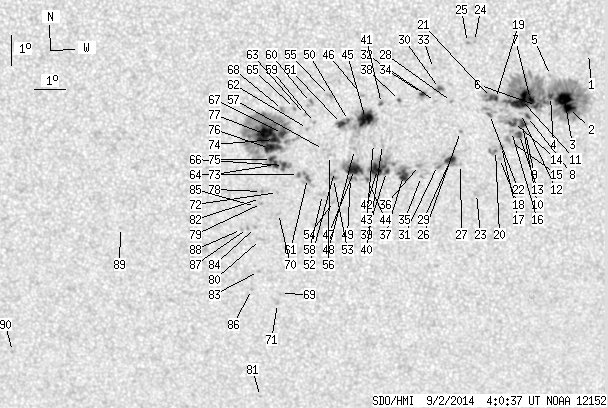

back to the solar disc SDO HMI 2014-09-02 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.94 | 211.47 | 6.08 | 196.72 | 0.3606 | 766.0 | 653.5 | |
| 8.23 | 300.10 | 4.42 | 160.46 | -14.72 | 210.89 | 5.50 | 193.96 | 0.3859 | 1143.6 | 505.3 | |
| 15.75 | -2.00 | 8.43 | -2.00 | -14.39 | 210.75 | 5.37 | 193.84 | 0.3803 | 1385.2 | 999999 | |
| 2.42 | -2.00 | 1.29 | -2.00 | -14.32 | 210.31 | 4.93 | 192.79 | 0.3775 | 1187.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.63 | 210.30 | 4.91 | 193.18 | 0.3667 | 248.0 | 224.5 | |
| 1.97 | -2.00 | 1.05 | -2.00 | -14.60 | 209.88 | 4.49 | 191.54 | 0.3806 | 984.3 | 999999 | |
| 5.64 | -2.00 | 3.01 | -2.00 | -14.41 | 209.69 | 4.30 | 191.16 | 0.3769 | 1178.5 | 999999 | |
| 1.25 | 2.77 | 0.67 | 1.49 | -14.96 | 209.60 | 4.22 | 190.67 | 0.3854 | 888.2 | 732.8 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -15.48 | 209.55 | 4.16 | 190.29 | 0.3935 | 625.0 | 439.9 | |
| 3.94 | -2.00 | 2.12 | -2.00 | -15.22 | 209.45 | 4.07 | 190.17 | 0.3891 | 987.2 | 999999 | |
| 21.21 | -2.00 | 11.33 | -2.00 | -14.40 | 209.41 | 4.02 | 190.45 | 0.3760 | 1161.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.86 | 209.38 | 4.00 | 190.17 | 0.3832 | 810.0 | 588.1 | |
| 2.69 | 5.37 | 1.45 | 2.89 | -15.55 | 209.36 | 3.98 | 189.81 | 0.3940 | 831.6 | 643.5 | |
| 3.94 | -2.00 | 2.11 | -2.00 | -15.15 | 209.17 | 3.78 | 189.50 | 0.3872 | 1013.1 | 999999 | |
| 0.00 | 7.34 | 0.00 | 3.96 | -15.81 | 209.12 | 3.73 | 189.10 | 0.3975 | 493.0 | 343.9 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -15.45 | 209.11 | 3.72 | 189.23 | 0.3918 | 836.0 | 710.4 | |
| 0.36 | 1.61 | 0.19 | 0.87 | -15.94 | 208.80 | 3.42 | 188.30 | 0.3988 | 956.5 | 785.4 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.33 | 208.75 | 3.36 | 188.02 | 0.4049 | 790.0 | 595.7 | |
| 1.52 | -2.00 | 0.81 | -2.00 | -14.36 | 208.59 | 3.21 | 188.38 | 0.3732 | 1128.8 | 999999 | |
| 0.45 | 5.46 | 0.24 | 2.95 | -16.07 | 208.62 | 3.23 | 187.80 | 0.4004 | 830.0 | 639.1 | |
| 2.15 | -2.00 | 1.15 | -2.00 | -14.33 | 208.47 | 3.08 | 188.07 | 0.3723 | 1136.2 | 999999 | |
| 0.81 | 8.06 | 0.43 | 4.31 | -14.88 | 208.41 | 3.02 | 187.72 | 0.3811 | 779.9 | 603.8 | |
| 0.00 | 3.49 | 0.00 | 1.91 | -17.49 | 208.04 | 2.65 | 186.02 | 0.4219 | 777.0 | 589.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -12.51 | 207.92 | 2.53 | 187.28 | 0.3417 | -751.0 | -585.4 | |
| 0.00 | 1.43 | 0.00 | 0.75 | -12.54 | 207.70 | 2.31 | 186.65 | 0.3418 | -854.0 | -693.6 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.43 | 207.51 | 2.12 | 185.29 | 0.3883 | 890.0 | 787.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -16.52 | 207.52 | 2.13 | 185.06 | 0.4057 | 720.0 | 621.6 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.45 | 207.22 | 1.83 | 184.79 | 0.3720 | 714.0 | 560.4 | |
| 5.37 | 12.53 | 2.90 | 6.78 | -16.35 | 207.20 | 1.81 | 184.34 | 0.4026 | 873.0 | 476.2 | |
| 0.98 | 5.82 | 0.52 | 3.09 | -14.03 | 206.84 | 1.45 | 183.89 | 0.3647 | 1024.2 | 687.1 | |
| 0.00 | 3.40 | 0.00 | 1.84 | -16.55 | 206.79 | 1.40 | 183.34 | 0.4053 | -34.0 | 158.1 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -14.45 | 206.72 | 1.33 | 183.49 | 0.3714 | -176.0 | -108.0 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -13.38 | 206.65 | 1.26 | 183.49 | 0.3539 | 824.0 | 602.7 | |
| 1.79 | 4.65 | 0.95 | 2.48 | -14.19 | 206.31 | 0.92 | 182.45 | 0.3668 | 848.2 | 353.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.91 | 206.29 | 0.90 | 182.11 | 0.4108 | -810.0 | -601.5 | |
| 0.00 | 2.33 | 0.00 | 1.26 | -16.55 | 206.22 | 0.84 | 181.99 | 0.4049 | 174.0 | 132.3 | |
| 7.88 | 89.23 | 4.27 | 48.35 | -16.88 | 205.72 | 0.33 | 180.78 | 0.4100 | -906.9 | -607.2 | |
| 0.54 | 1.34 | 0.29 | 0.72 | -14.41 | 205.59 | 0.21 | 180.54 | 0.3702 | -824.5 | -667.8 | |
| 1.88 | -37.00 | 1.02 | -37.00 | -16.74 | 205.18 | -0.21 | 179.52 | 0.4078 | -863.0 | 999999 | |
| 0.00 | 4.56 | 0.00 | 2.46 | -15.85 | 205.06 | -0.33 | 179.19 | 0.3935 | -216.0 | -157.2 | |
| 0.63 | 1.70 | 0.33 | 0.91 | -14.51 | 205.03 | -0.36 | 179.07 | 0.3718 | -964.7 | -795.3 | |
| 12.53 | -37.00 | 6.79 | -37.00 | -16.68 | 204.90 | -0.49 | 178.84 | 0.4068 | -1186.6 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -15.82 | 204.77 | -0.61 | 178.50 | 0.3931 | -104.0 | -115.3 | |
| 0.72 | -37.00 | 0.39 | -37.00 | -17.01 | 204.58 | -0.81 | 178.12 | 0.4123 | -759.6 | 999999 | |
| 16.56 | 61.04 | 8.86 | 32.70 | -15.00 | 204.53 | -0.86 | 177.81 | 0.3800 | 1027.7 | 239.9 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.25 | 204.44 | -0.95 | 177.49 | 0.3678 | 838.0 | 754.9 | |
| 13.07 | -37.00 | 7.08 | -37.00 | -16.68 | 204.17 | -1.22 | 177.13 | 0.4072 | -1147.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -16.02 | 204.18 | -1.21 | 177.05 | 0.3966 | -389.0 | -295.1 | |
| 0.81 | -37.00 | 0.44 | -37.00 | -16.98 | 204.04 | -1.34 | 176.86 | 0.4121 | -827.7 | 999999 | |
| 0.81 | -45.00 | 0.43 | -45.00 | -15.07 | 203.99 | -1.39 | 176.46 | 0.3815 | 688.8 | 999999 | |
| 3.76 | -45.00 | 2.02 | -45.00 | -15.16 | 203.77 | -1.61 | 175.92 | 0.3833 | 781.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.75 | 203.54 | -1.85 | 175.65 | 0.4090 | -967.0 | -799.2 | |
| 0.00 | 2.42 | 0.00 | 1.31 | -16.98 | 203.50 | -1.88 | 175.61 | 0.4127 | -990.0 | -846.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.74 | 203.49 | -1.89 | 175.74 | 0.4249 | -636.0 | -505.8 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -14.25 | 203.41 | -1.98 | 174.77 | 0.3690 | -932.0 | -833.7 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -16.22 | 203.39 | -2.00 | 175.18 | 0.4007 | -785.0 | -614.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.02 | 203.20 | -2.19 | 174.69 | 0.3978 | -873.0 | -731.9 | |
| 0.00 | 3.94 | 0.00 | 2.15 | -17.51 | 203.15 | -2.24 | 174.91 | 0.4216 | -697.0 | -558.4 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -15.13 | 202.93 | -2.46 | 173.78 | 0.3840 | -983.0 | -745.8 | |
| 0.00 | 3.13 | 0.00 | 1.67 | -14.48 | 202.81 | -2.58 | 173.28 | 0.3737 | -965.0 | -813.5 | |
| 1.25 | 10.65 | 0.68 | 5.79 | -16.98 | 202.68 | -2.71 | 173.71 | 0.4140 | -896.3 | -685.7 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -15.33 | 202.71 | -2.68 | 173.29 | 0.3876 | -872.0 | -716.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.87 | 202.65 | -2.74 | 173.00 | 0.3804 | -949.0 | -717.1 | |
| 0.72 | -61.00 | 0.39 | -61.00 | -16.85 | 202.40 | -2.99 | 173.02 | 0.4124 | -959.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.68 | 202.31 | -3.08 | 172.06 | 0.3780 | -948.0 | -810.2 | |
| 3.13 | 184.19 | 1.70 | 99.29 | -16.56 | 201.93 | -3.46 | 171.83 | 0.4087 | -947.3 | -555.7 | |
| 4.92 | -66.00 | 2.65 | -66.00 | -15.50 | 201.92 | -3.47 | 171.41 | 0.3920 | -1151.0 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.63 | -14.72 | 201.93 | -3.46 | 171.12 | 0.3794 | -750.0 | -717.3 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -20.87 | 201.74 | -3.65 | 172.79 | 0.4762 | -421.0 | -471.5 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -18.15 | 201.74 | -3.65 | 171.96 | 0.4343 | -736.0 | -624.9 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -21.21 | 201.63 | -3.76 | 172.68 | 0.4817 | -721.0 | -598.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.45 | 201.72 | -3.67 | 171.68 | 0.4233 | -848.0 | -701.5 | |
| 2.86 | -66.00 | 1.55 | -66.00 | -16.52 | 201.68 | -3.71 | 171.23 | 0.4088 | -932.8 | 999999 | |
| 3.31 | -66.00 | 1.79 | -66.00 | -15.70 | 201.66 | -3.73 | 170.87 | 0.3958 | -1283.6 | 999999 | |
| 2.15 | -66.00 | 1.16 | -66.00 | -16.36 | 201.55 | -3.83 | 170.88 | 0.4065 | -974.8 | 999999 | |
| 7.52 | -66.00 | 4.06 | -66.00 | -16.00 | 201.50 | -3.89 | 170.60 | 0.4009 | -984.2 | 999999 | |
| 21.39 | -66.00 | 11.52 | -66.00 | -15.54 | 201.38 | -4.01 | 170.12 | 0.3939 | -1312.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.42 | 201.21 | -4.17 | 170.54 | 0.4241 | -983.0 | -843.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.82 | 201.20 | -4.18 | 170.67 | 0.4304 | -825.0 | -662.4 | |
| 0.00 | 2.86 | 0.00 | 1.59 | -19.03 | 201.14 | -4.25 | 171.00 | 0.4493 | -678.0 | -541.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -24.47 | 200.97 | -4.42 | 172.39 | 0.5317 | -794.0 | -616.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.66 | 201.17 | -4.21 | 170.55 | 0.4279 | -849.0 | -700.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.12 | 201.04 | -4.34 | 171.19 | 0.4662 | -753.0 | -623.1 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.63 | 200.99 | -4.40 | 170.53 | 0.4435 | -754.0 | -643.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.93 | 201.01 | -4.38 | 170.29 | 0.4325 | -696.0 | -526.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -20.74 | 200.80 | -4.59 | 170.93 | 0.4762 | -734.0 | -646.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.67 | 200.73 | -4.65 | 170.00 | 0.4447 | -852.0 | -704.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.70 | 200.54 | -4.85 | 169.61 | 0.4458 | -678.0 | -480.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.69 | 196.65 | -8.74 | 161.71 | 0.4606 | -705.0 | -559.0 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -23.04 | 192.76 | -12.62 | 158.13 | 0.5420 | -65.0 | -88.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
