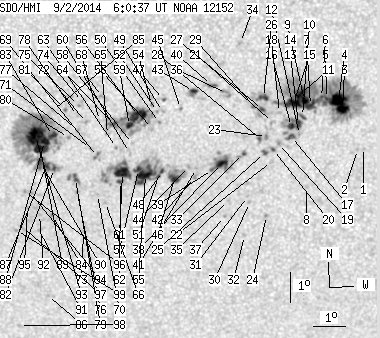

SDO HMI 2014-09-02 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 211.53 | 819.20 | 113.88 | 440.93 | -15.49 | 205.95 | 1.66 | 184.27 | 0.3928 | -32.0 | 2.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.96 | 211.69 | 7.40 | 197.51 | 0.4133 | 369.0 | 424.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.03 | 211.50 | 7.21 | 197.04 | 0.4134 | 923.0 | 744.5 | |
| 9.13 | 229.69 | 4.91 | 123.05 | -14.71 | 210.99 | 6.70 | 196.85 | 0.3908 | 1122.0 | 504.8 | |
| 16.38 | -3.00 | 8.79 | -3.00 | -14.41 | 210.85 | 6.56 | 196.75 | 0.3856 | 1370.8 | 999999 | |
| 1.70 | -3.00 | 0.91 | -3.00 | -14.34 | 210.47 | 6.18 | 195.88 | 0.3828 | 1310.7 | 999999 | |
| 0.90 | -3.00 | 0.48 | -3.00 | -14.30 | 210.31 | 6.02 | 195.52 | 0.3816 | 1241.2 | 999999 | |
| 5.55 | -3.00 | 2.98 | -3.00 | -14.56 | 209.98 | 5.68 | 194.52 | 0.3841 | 1012.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -17.23 | 209.92 | 5.63 | 192.78 | 0.4254 | 327.0 | 338.6 | |
| 7.70 | -3.00 | 4.12 | -3.00 | -14.39 | 209.78 | 5.49 | 194.15 | 0.3808 | 1115.7 | 999999 | |
| 1.07 | 21.93 | 0.58 | 11.79 | -14.92 | 209.73 | 5.44 | 193.69 | 0.3888 | 866.8 | 702.6 | |
| 9.13 | -3.00 | 4.88 | -3.00 | -14.16 | 209.65 | 5.36 | 193.98 | 0.3767 | 1205.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.50 | 209.65 | 5.36 | 193.14 | 0.3977 | 614.0 | 510.3 | |
| 4.30 | -10.00 | 2.31 | -10.00 | -15.18 | 209.61 | 5.32 | 193.25 | 0.3924 | 949.5 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.52 | -13.48 | 209.57 | 5.28 | 194.24 | 0.3656 | 161.0 | 186.6 | |
| 11.46 | -3.00 | 6.13 | -3.00 | -14.49 | 209.44 | 5.15 | 193.24 | 0.3809 | 1125.9 | 999999 | |
| 3.22 | -10.00 | 1.73 | -10.00 | -15.24 | 209.39 | 5.10 | 192.68 | 0.3926 | 1043.1 | 999999 | |
| 2.33 | 6.98 | 1.26 | 3.77 | -15.57 | 209.40 | 5.11 | 192.51 | 0.3978 | 833.6 | 637.1 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -14.78 | 209.01 | 4.72 | 192.00 | 0.3840 | 743.0 | 617.2 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -15.79 | 209.00 | 4.71 | 191.43 | 0.4000 | 852.0 | 745.7 | |
| 0.72 | 2.69 | 0.39 | 1.45 | -15.99 | 208.84 | 4.55 | 190.97 | 0.4026 | 907.4 | 740.3 | |
| 0.00 | 2.51 | 0.00 | 1.35 | -15.10 | 208.79 | 4.50 | 191.30 | 0.3884 | 527.0 | 320.4 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -16.38 | 208.79 | 4.50 | 190.66 | 0.4086 | 637.0 | 542.0 | |
| 0.00 | 2.60 | 0.00 | 1.40 | -15.56 | 208.61 | 4.32 | 190.64 | 0.3951 | 1179.0 | 914.6 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.18 | 208.67 | 4.38 | 189.62 | 0.4363 | 765.0 | 540.8 | |
| 1.34 | 3.04 | 0.73 | 1.65 | -16.08 | 208.56 | 4.27 | 190.27 | 0.4032 | 820.5 | 633.0 | |
| 3.40 | 12.17 | 1.82 | 6.50 | -14.28 | 208.50 | 4.20 | 190.99 | 0.3745 | 1202.1 | 605.7 | |
| 1.43 | 6.62 | 0.77 | 3.55 | -14.67 | 208.47 | 4.18 | 190.72 | 0.3806 | 941.9 | 495.2 | |
| 0.90 | 3.85 | 0.48 | 2.07 | -15.62 | 208.39 | 4.10 | 190.08 | 0.3955 | 968.3 | 729.9 | |
| 0.00 | 2.33 | 0.00 | 1.24 | -14.57 | 208.22 | 3.93 | 190.14 | 0.3783 | 513.0 | 265.9 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -17.74 | 208.12 | 3.83 | 188.58 | 0.4281 | 586.0 | 410.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -17.54 | 208.05 | 3.76 | 188.50 | 0.4248 | 821.0 | 771.8 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -18.84 | 207.98 | 3.69 | 187.90 | 0.4450 | 546.0 | 284.2 | |
| 0.90 | 4.65 | 0.48 | 2.52 | -16.11 | 207.90 | 3.61 | 188.69 | 0.4019 | 899.3 | 642.9 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -12.49 | 207.75 | 3.46 | 189.92 | 0.3436 | -691.0 | -532.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.66 | 207.45 | 3.16 | 187.12 | 0.4255 | 735.0 | 584.7 | |
| 0.00 | 4.92 | 0.00 | 2.62 | -14.14 | 207.34 | 3.05 | 188.06 | 0.3691 | 705.0 | 600.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.20 | 207.33 | 3.04 | 186.70 | 0.4337 | 719.0 | 570.8 | |
| 6.80 | 29.81 | 3.68 | 16.14 | -16.43 | 207.21 | 2.92 | 186.95 | 0.4056 | 685.2 | 106.7 | |
| 0.81 | -38.00 | 0.44 | -38.00 | -16.63 | 206.93 | 2.64 | 186.23 | 0.4082 | 524.7 | 999999 | |
| 0.00 | 4.92 | 0.00 | 2.62 | -13.88 | 206.87 | 2.57 | 186.91 | 0.3639 | 1009.0 | 723.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.59 | 206.42 | 2.13 | 185.05 | 0.4068 | 172.0 | 103.7 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -16.89 | 206.36 | 2.07 | 184.84 | 0.4115 | -782.0 | -612.4 | |
| 2.86 | 6.89 | 1.52 | 3.67 | -14.07 | 206.31 | 2.01 | 185.37 | 0.3660 | 868.1 | 377.1 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -16.52 | 206.17 | 1.88 | 184.46 | 0.4054 | 49.0 | 21.2 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -14.62 | 205.90 | 1.61 | 184.19 | 0.3744 | -835.0 | -727.8 | |
| 6.27 | 23.54 | 3.40 | 12.77 | -16.92 | 205.73 | 1.44 | 183.36 | 0.4112 | -898.8 | -440.0 | |
| 0.36 | 1.34 | 0.19 | 0.72 | -14.32 | 205.37 | 1.08 | 182.85 | 0.3691 | -855.5 | -798.1 | |
| 1.34 | 50.93 | 0.73 | 27.60 | -16.69 | 205.35 | 1.06 | 182.50 | 0.4072 | -1009.1 | -603.6 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -14.71 | 205.34 | 1.05 | 182.72 | 0.3754 | -735.0 | -445.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.07 | 205.25 | 0.96 | 182.44 | 0.3811 | -885.0 | -677.2 | |
| 0.98 | -48.00 | 0.53 | -48.00 | -16.85 | 205.22 | 0.93 | 182.19 | 0.4097 | -888.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.71 | 205.18 | 0.89 | 182.31 | 0.3753 | 590.0 | 506.5 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -15.27 | 205.03 | 0.74 | 181.86 | 0.3842 | 26.0 | 43.4 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.48 | 205.00 | 0.71 | 181.85 | 0.3714 | -788.0 | -639.1 | |
| 18.98 | -48.00 | 10.29 | -48.00 | -16.78 | 204.81 | 0.52 | 181.23 | 0.4085 | -1146.4 | 999999 | |
| 13.07 | 74.38 | 6.99 | 39.81 | -14.84 | 204.59 | 0.30 | 180.77 | 0.3771 | 1149.5 | 335.3 | |
| 3.13 | -48.00 | 1.70 | -48.00 | -16.62 | 204.59 | 0.30 | 180.71 | 0.4057 | -1265.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.76 | 204.40 | 0.11 | 180.27 | 0.3919 | -246.0 | -190.8 | |
| 3.67 | -56.00 | 1.97 | -56.00 | -15.17 | 204.31 | 0.02 | 180.04 | 0.3824 | 744.2 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.40 | -16.06 | 204.31 | 0.02 | 180.04 | 0.3967 | 26.0 | -163.8 | |
| 12.89 | 42.88 | 6.99 | 23.24 | -16.72 | 204.08 | -0.21 | 179.51 | 0.4073 | -1145.1 | -678.5 | |
| 1.52 | -61.00 | 0.83 | -61.00 | -17.01 | 204.02 | -0.27 | 179.37 | 0.4121 | -847.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.89 | 203.90 | -0.39 | 179.04 | 0.3941 | -949.0 | -795.8 | |
| 2.42 | -56.00 | 1.29 | -56.00 | -15.10 | 203.81 | -0.48 | 178.77 | 0.3814 | 794.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -15.46 | 203.62 | -0.67 | 178.32 | 0.3873 | 438.0 | 317.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.71 | 203.54 | -0.75 | 178.31 | 0.4234 | -620.0 | -508.8 | |
| 0.00 | 2.95 | 0.00 | 1.57 | -14.22 | 203.47 | -0.82 | 177.81 | 0.3672 | -1051.0 | -756.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -15.00 | 203.37 | -0.92 | 177.64 | 0.3800 | -775.0 | -527.8 | |
| 0.00 | 5.01 | 0.00 | 2.71 | -16.19 | 203.30 | -0.99 | 177.60 | 0.3991 | -919.0 | -773.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.45 | 203.29 | -1.00 | 177.71 | 0.4193 | -809.0 | -614.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.92 | 203.08 | -1.21 | 177.04 | 0.3951 | -965.0 | -670.0 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -15.07 | 202.96 | -1.33 | 176.62 | 0.3814 | -1057.0 | -808.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.69 | 202.83 | -1.46 | 176.84 | 0.4392 | -629.0 | -559.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.39 | 202.84 | -1.45 | 176.19 | 0.3704 | -1102.0 | -847.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.52 | 202.71 | -1.58 | 175.88 | 0.3727 | -930.0 | -788.2 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.38 | 202.66 | -1.63 | 176.26 | 0.4188 | -731.0 | -670.3 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -15.33 | 202.68 | -1.61 | 175.95 | 0.3860 | -763.0 | -605.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -14.84 | 202.68 | -1.61 | 175.86 | 0.3780 | -863.0 | -681.4 | |
| 2.06 | 9.04 | 1.12 | 4.91 | -16.92 | 202.60 | -1.69 | 176.04 | 0.4114 | -981.8 | -772.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.56 | 202.39 | -1.90 | 175.28 | 0.3900 | -947.0 | -775.1 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -14.65 | 202.31 | -1.98 | 174.86 | 0.3754 | -639.0 | -651.0 | |
| 1.61 | 189.32 | 0.87 | 101.93 | -16.59 | 201.94 | -2.35 | 174.43 | 0.4071 | -1017.8 | -512.9 | |
| 4.12 | -82.00 | 2.21 | -82.00 | -15.50 | 201.89 | -2.40 | 174.03 | 0.3897 | -1135.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.15 | 201.85 | -2.44 | 174.61 | 0.4320 | -902.0 | -783.7 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -14.68 | 201.90 | -2.39 | 173.82 | 0.3766 | -1009.0 | -810.5 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.87 | 201.64 | -2.65 | 174.76 | 0.4745 | -603.0 | -607.4 | |
| 4.03 | -82.00 | 2.18 | -82.00 | -16.49 | 201.69 | -2.60 | 173.81 | 0.4059 | -1009.3 | 999999 | |
| 6.00 | -82.00 | 3.23 | -82.00 | -15.70 | 201.63 | -2.66 | 173.46 | 0.3934 | -1235.4 | 999999 | |
| 10.56 | -82.00 | 5.70 | -82.00 | -15.93 | 201.51 | -2.79 | 173.22 | 0.3973 | -1002.4 | 999999 | |
| 5.10 | -82.00 | 2.76 | -82.00 | -16.39 | 201.50 | -2.79 | 173.34 | 0.4047 | -889.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -18.66 | 201.43 | -2.86 | 173.81 | 0.4406 | -713.0 | -554.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.12 | 201.44 | -2.85 | 173.69 | 0.4321 | -579.0 | -545.7 | |
| 21.39 | -82.00 | 11.51 | -82.00 | -15.50 | 201.35 | -2.94 | 172.71 | 0.3908 | -1359.2 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.17 | -17.39 | 201.16 | -3.13 | 172.87 | 0.4211 | -747.0 | -770.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.89 | 201.06 | -3.23 | 172.79 | 0.4292 | -605.0 | -536.9 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.36 | 200.97 | -3.32 | 172.43 | 0.4210 | -916.0 | -731.9 | |
| 0.00 | 3.13 | 0.00 | 1.73 | -18.56 | 200.89 | -3.40 | 172.62 | 0.4400 | -637.0 | -521.5 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.91 | 200.71 | -3.58 | 173.21 | 0.4918 | -278.0 | -306.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.66 | 200.69 | -3.60 | 172.24 | 0.4420 | -816.0 | -656.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
