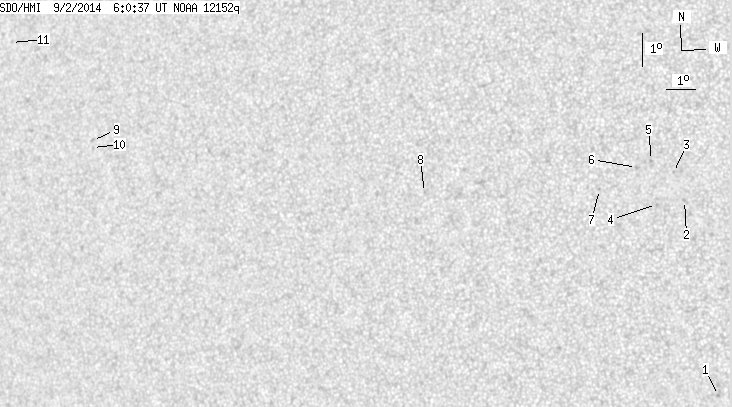

SDO HMI 2014-09-02 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.89 | 0.00 | 6.64 | 11.69 | 178.58 | -25.71 | 77.54 | 0.4306 | -291.2 | -230.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.51 | 5.54 | 187.66 | -16.63 | 94.81 | 0.2872 | -980.0 | -793.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.40 | 186.30 | -17.99 | 75.37 | 0.3142 | -703.0 | -596.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.23 | 185.89 | -18.40 | 73.09 | 0.3239 | -781.0 | -610.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 11.24 | 185.40 | -18.89 | 76.38 | 0.3281 | -848.0 | -688.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 12.57 | 185.14 | -19.15 | 72.63 | 0.3369 | -800.0 | -686.1 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 12.34 | 184.67 | -19.62 | 73.61 | 0.3434 | -746.0 | -611.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 11.62 | 183.50 | -20.79 | 76.28 | 0.3594 | -693.0 | -545.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 11.24 | 177.63 | -26.66 | 79.27 | 0.4498 | 659.0 | 532.4 | |
| 0.00 | 1.34 | 0.00 | 0.85 | 12.02 | 165.27 | -39.02 | 79.77 | 0.6279 | 569.0 | 532.8 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 11.81 | 165.31 | -38.98 | 80.10 | 0.6273 | 613.0 | 530.2 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 14.71 | 161.37 | -42.92 | 76.10 | 0.6808 | 507.0 | 413.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
