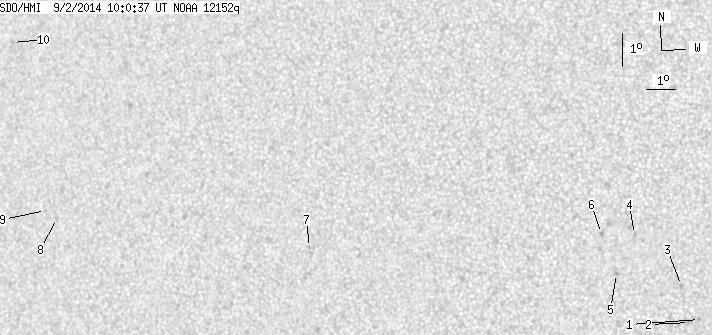

SDO HMI 2014-09-02 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.75 | 0.00 | 8.10 | 11.82 | 178.75 | -23.35 | 76.24 | 0.3937 | -218.3 | -195.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | 9.75 | 188.05 | -14.05 | 78.63 | 0.2451 | -865.0 | -738.8 | |
| 0.00 | 2.33 | 0.00 | 1.19 | 9.65 | 187.74 | -14.36 | 79.23 | 0.2500 | -702.0 | -604.5 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 10.76 | 187.43 | -14.66 | 75.13 | 0.2585 | -841.0 | -657.9 | |
| 0.00 | 1.52 | 0.00 | 0.79 | 12.26 | 185.85 | -16.25 | 71.22 | 0.2902 | -729.0 | -616.6 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 11.05 | 185.34 | -16.76 | 75.65 | 0.2934 | -839.0 | -669.3 | |
| 0.00 | 1.52 | 0.00 | 0.79 | 12.25 | 184.78 | -17.32 | 72.17 | 0.3070 | -850.0 | -645.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 11.39 | 175.09 | -27.01 | 79.02 | 0.4554 | 761.0 | 606.9 | |
| 0.00 | 1.52 | 0.00 | 0.93 | 11.68 | 165.85 | -36.25 | 80.02 | 0.5901 | 532.0 | 328.4 | |
| 0.00 | 1.07 | 0.00 | 0.66 | 11.89 | 165.40 | -36.70 | 79.71 | 0.5966 | 674.0 | 535.9 | |
| 0.00 | 1.52 | 0.00 | 0.97 | 16.88 | 163.09 | -39.00 | 72.06 | 0.6353 | 676.0 | 541.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
