SDO HMI 2014-09-02 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 211.89 | 853.00 | 114.44 | 460.45 | -15.56 | 205.90 | 4.35 | 190.74 | 0.3995 | -76.6 | -0.6 | |
|
previous
or next observation for the same group /

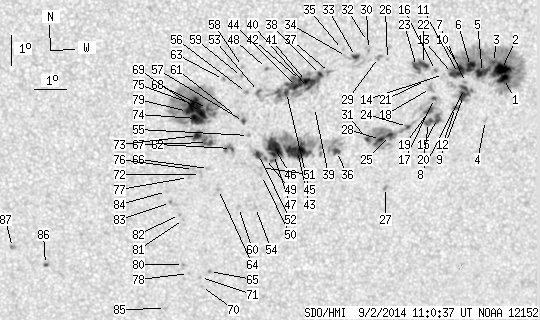

back to the solar disc SDO HMI 2014-09-02 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.80 | 222.81 | 3.68 | 120.16 | -14.63 | 211.06 | 9.51 | 203.35 | 0.4049 | 1054.7 | 499.3 | |
| 13.60 | -1.00 | 7.35 | -1.00 | -14.33 | 210.98 | 9.43 | 203.48 | 0.4001 | 1326.2 | 999999 | |
| 1.43 | -1.00 | 0.77 | -1.00 | -14.10 | 210.72 | 9.17 | 203.13 | 0.3950 | 1174.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -15.99 | 210.54 | 8.99 | 200.96 | 0.4219 | 612.0 | 496.9 | |
| 9.49 | -1.00 | 5.12 | -1.00 | -14.42 | 210.38 | 8.83 | 202.06 | 0.3977 | 1168.3 | 999999 | |
| 9.13 | -1.00 | 4.91 | -1.00 | -14.22 | 210.00 | 8.45 | 201.37 | 0.3923 | 1328.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -14.73 | 209.86 | 8.31 | 200.57 | 0.3993 | 974.0 | 683.8 | |
| 2.95 | 24.07 | 1.60 | 13.02 | -14.93 | 209.83 | 8.28 | 200.34 | 0.4021 | 1057.1 | 624.9 | |
| 6.35 | -8.00 | 3.44 | -8.00 | -15.16 | 209.81 | 8.26 | 200.09 | 0.4054 | 990.2 | 999999 | |
| 5.73 | -1.00 | 3.08 | -1.00 | -14.27 | 209.68 | 8.13 | 200.59 | 0.3914 | 1264.1 | 999999 | |
| 3.76 | -1.00 | 2.02 | -1.00 | -14.44 | 209.63 | 8.08 | 200.31 | 0.3935 | 1078.7 | 999999 | |
| 1.43 | 3.58 | 0.78 | 1.94 | -15.55 | 209.57 | 8.02 | 199.23 | 0.4100 | 832.9 | 664.6 | |
| 3.13 | -1.00 | 1.69 | -1.00 | -14.43 | 209.44 | 7.89 | 199.88 | 0.3924 | 1038.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -14.46 | 209.15 | 7.60 | 199.20 | 0.3913 | 798.0 | 621.3 | |
| 3.67 | 32.84 | 1.99 | 17.81 | -15.90 | 209.01 | 7.46 | 197.71 | 0.4125 | 793.8 | 473.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.32 | 208.90 | 7.35 | 198.71 | 0.3880 | 1041.0 | 900.9 | |
| 1.16 | -15.00 | 0.63 | -15.00 | -15.24 | 208.90 | 7.35 | 197.95 | 0.4019 | 808.3 | 999999 | |
| 0.00 | 4.21 | 0.00 | 2.27 | -14.91 | 208.76 | 7.21 | 197.90 | 0.3962 | 859.0 | 588.7 | |
| 3.49 | -15.00 | 1.89 | -15.00 | -15.63 | 208.75 | 7.20 | 197.32 | 0.4071 | 972.1 | 999999 | |
| 3.40 | -15.00 | 1.85 | -15.00 | -16.02 | 208.73 | 7.18 | 196.99 | 0.4131 | 825.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.64 | 208.59 | 7.04 | 197.72 | 0.3913 | 754.0 | 504.1 | |
| 4.56 | 14.23 | 2.45 | 7.63 | -14.12 | 208.51 | 6.96 | 197.96 | 0.3829 | 1137.2 | 714.6 | |
| 3.94 | -22.00 | 2.11 | -22.00 | -14.18 | 208.30 | 6.75 | 197.38 | 0.3828 | 1017.6 | 999999 | |
| 1.25 | 50.83 | 0.68 | 27.64 | -16.14 | 208.07 | 6.52 | 195.42 | 0.4120 | 852.7 | 147.5 | |
| 2.51 | -24.00 | 1.36 | -24.00 | -16.43 | 207.51 | 5.96 | 193.97 | 0.4141 | 877.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.94 | 207.38 | 5.83 | 195.31 | 0.3749 | 785.0 | 601.0 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -18.16 | 207.44 | 5.89 | 192.83 | 0.4405 | 746.0 | 649.0 | |
| 3.22 | -24.00 | 1.75 | -24.00 | -16.56 | 207.23 | 5.68 | 193.26 | 0.4151 | 656.9 | 999999 | |
| 0.00 | 3.40 | 0.00 | 1.81 | -13.87 | 207.10 | 5.55 | 194.65 | 0.3726 | 1041.0 | 703.1 | |
| 0.00 | 4.56 | 0.00 | 2.43 | -13.61 | 206.78 | 5.23 | 194.01 | 0.3672 | 701.0 | 552.7 | |
| 1.97 | -24.00 | 1.07 | -24.00 | -16.55 | 206.82 | 5.27 | 192.33 | 0.4135 | -857.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.35 | 206.74 | 5.19 | 194.10 | 0.3630 | 814.0 | 780.4 | |
| 2.15 | 6.62 | 1.14 | 3.53 | -13.83 | 206.37 | 4.82 | 192.84 | 0.3692 | 969.7 | 299.1 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -13.83 | 206.09 | 4.54 | 192.11 | 0.3682 | 432.0 | 494.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -13.60 | 205.96 | 4.41 | 191.91 | 0.3641 | 706.0 | 577.2 | |
| 2.95 | 27.29 | 1.61 | 14.84 | -16.94 | 205.84 | 4.29 | 189.94 | 0.4166 | -851.2 | -524.2 | |
| 0.00 | 3.31 | 0.00 | 1.77 | -14.34 | 205.57 | 4.02 | 190.49 | 0.3747 | -890.0 | -662.6 | |
| 1.88 | 79.01 | 1.00 | 42.28 | -14.40 | 205.29 | 3.74 | 189.74 | 0.3749 | -850.0 | 438.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.48 | 205.12 | 3.57 | 188.85 | 0.3917 | -743.0 | -577.9 | |
| 0.27 | -38.00 | 0.14 | -38.00 | -14.82 | 204.92 | 3.37 | 188.62 | 0.3807 | 868.7 | 999999 | |
| 3.67 | -38.00 | 1.96 | -38.00 | -14.63 | 204.86 | 3.31 | 188.54 | 0.3774 | 1232.1 | 999999 | |
| 2.42 | -38.00 | 1.29 | -38.00 | -14.59 | 204.67 | 3.12 | 188.07 | 0.3764 | 1301.1 | 999999 | |
| 25.41 | 115.43 | 13.81 | 62.67 | -16.89 | 204.61 | 3.06 | 187.12 | 0.4130 | -1101.7 | -604.9 | |
| 3.67 | -38.00 | 1.96 | -38.00 | -14.79 | 204.54 | 2.99 | 187.69 | 0.3793 | 1088.0 | 999999 | |
| 2.33 | -38.00 | 1.25 | -38.00 | -14.98 | 204.23 | 2.68 | 186.83 | 0.3817 | 773.8 | 999999 | |
| 16.91 | -43.00 | 9.18 | -43.00 | -16.79 | 203.88 | 2.33 | 185.46 | 0.4100 | -1191.4 | 999999 | |
| 2.95 | -43.00 | 1.61 | -43.00 | -17.02 | 203.85 | 2.30 | 185.34 | 0.4137 | -859.8 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -14.20 | 203.60 | 2.05 | 185.43 | 0.3679 | -794.0 | -732.0 | |
| 0.54 | -43.00 | 0.29 | -43.00 | -17.15 | 203.59 | 2.04 | 184.73 | 0.4154 | -909.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -17.72 | 203.47 | 1.92 | 184.34 | 0.4242 | -701.0 | -589.6 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.45 | 203.44 | 1.89 | 184.31 | 0.4200 | -663.0 | -586.8 | |
| 3.49 | -43.00 | 1.90 | -43.00 | -17.02 | 203.37 | 1.82 | 184.24 | 0.4130 | -1069.3 | 999999 | |
| 0.81 | 5.91 | 0.43 | 3.16 | -14.94 | 203.36 | 1.81 | 184.62 | 0.3797 | -912.4 | -17.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.79 | 203.29 | 1.74 | 183.76 | 0.4409 | -784.0 | -646.0 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -16.39 | 203.05 | 1.50 | 183.59 | 0.4026 | -806.0 | -666.7 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -14.97 | 202.98 | 1.43 | 183.65 | 0.3798 | -979.0 | -830.5 | |
| 1.43 | 4.12 | 0.77 | 2.22 | -15.93 | 202.89 | 1.34 | 183.28 | 0.3950 | -941.7 | -709.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.13 | 202.85 | 1.30 | 183.46 | 0.3659 | -819.0 | -743.6 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.45 | 202.82 | 1.27 | 183.33 | 0.3711 | -955.0 | -759.0 | |
| 0.00 | 2.42 | 0.00 | 1.33 | -18.79 | 202.75 | 1.20 | 182.59 | 0.4404 | -691.0 | -549.9 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -15.76 | 202.67 | 1.12 | 182.76 | 0.3922 | -796.0 | -728.0 | |
| 1.43 | 8.68 | 0.78 | 4.71 | -16.82 | 202.52 | 0.97 | 182.27 | 0.4090 | -987.6 | -766.4 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -14.55 | 202.26 | 0.71 | 181.85 | 0.3723 | -887.0 | -665.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -18.18 | 202.11 | 0.56 | 181.24 | 0.4305 | -892.0 | -615.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.96 | 201.82 | 0.27 | 180.54 | 0.4739 | -786.0 | -635.1 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -17.48 | 201.79 | 0.24 | 180.55 | 0.4193 | -683.0 | -551.7 | |
| 4.74 | 188.27 | 2.57 | 101.16 | -16.61 | 201.76 | 0.21 | 180.49 | 0.4055 | -871.0 | -521.8 | |
| 1.25 | -67.00 | 0.67 | -67.00 | -15.49 | 201.76 | 0.21 | 180.52 | 0.3875 | -1137.1 | 999999 | |
| 8.05 | -67.00 | 4.33 | -67.00 | -15.63 | 201.57 | 0.02 | 180.05 | 0.3896 | -1245.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.48 | 201.56 | 0.01 | 180.03 | 0.4818 | -650.0 | -516.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -21.17 | 201.53 | -0.02 | 179.96 | 0.4771 | -723.0 | -655.9 | |
| 0.00 | 2.77 | 0.00 | 1.51 | -17.68 | 201.54 | -0.01 | 179.97 | 0.4225 | -749.0 | -641.1 | |
| 5.37 | -67.00 | 2.90 | -67.00 | -16.38 | 201.44 | -0.11 | 179.74 | 0.4018 | -897.2 | 999999 | |
| 10.65 | -67.00 | 5.73 | -67.00 | -15.82 | 201.41 | -0.14 | 179.66 | 0.3928 | -944.4 | 999999 | |
| 12.97 | -67.00 | 6.96 | -67.00 | -15.36 | 201.32 | -0.23 | 179.42 | 0.3854 | -1398.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.51 | 201.31 | -0.24 | 179.46 | 0.4198 | -932.0 | -761.9 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.78 | 201.15 | -0.40 | 179.11 | 0.4241 | -786.0 | -599.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -21.03 | 201.14 | -0.41 | 179.20 | 0.4750 | -735.0 | -544.1 | |
| 2.86 | -67.00 | 1.54 | -67.00 | -15.59 | 201.13 | -0.42 | 178.96 | 0.3891 | -1028.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.72 | 200.98 | -0.57 | 178.87 | 0.4702 | -745.0 | -630.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -19.19 | 200.99 | -0.56 | 178.81 | 0.4464 | -681.0 | -557.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -19.02 | 200.86 | -0.69 | 178.53 | 0.4438 | -573.0 | -559.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.62 | 200.58 | -0.97 | 177.88 | 0.4376 | -810.0 | -703.7 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.25 | 200.45 | -1.10 | 177.57 | 0.4318 | -667.0 | -534.0 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -22.24 | 200.39 | -1.16 | 177.81 | 0.4938 | -601.0 | -523.9 | |
| 0.72 | 1.88 | 0.40 | 1.06 | -20.74 | 196.51 | -5.04 | 170.05 | 0.4772 | 781.6 | 727.2 | |
| 0.00 | 2.24 | 0.00 | 1.26 | -20.18 | 195.46 | -6.09 | 167.77 | 0.4717 | -932.0 | -849.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
