SDO HMI 2014-09-02 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.01 | 872.91 | 100.86 | 472.92 | -15.45 | 206.10 | 6.75 | 196.32 | 0.4071 | -113.4 | 27.2 | |
|
previous
or next observation for the same group /

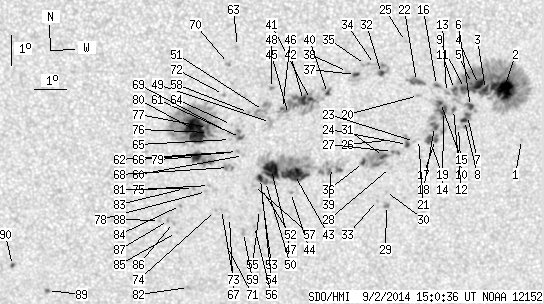

back to the solar disc SDO HMI 2014-09-02 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.02 | 211.70 | 12.36 | 207.72 | 0.4441 | 799.0 | 656.1 | |
| 32.64 | 258.35 | 17.77 | 140.39 | -14.36 | 211.03 | 11.69 | 208.26 | 0.4162 | 1234.2 | 516.2 | |
| 3.58 | -2.00 | 1.94 | -2.00 | -14.35 | 210.46 | 11.11 | 207.09 | 0.4117 | 974.8 | 999999 | |
| 6.62 | -2.00 | 3.59 | -2.00 | -14.18 | 210.23 | 10.88 | 206.79 | 0.4077 | 1365.4 | 999999 | |
| 0.27 | -2.00 | 0.15 | -2.00 | -14.14 | 210.00 | 10.66 | 206.36 | 0.4056 | 1286.0 | 999999 | |
| 2.59 | -2.00 | 1.41 | -2.00 | -14.89 | 210.01 | 10.66 | 205.55 | 0.4163 | 1065.9 | 999999 | |
| 1.61 | -2.00 | 0.88 | -2.00 | -15.18 | 209.93 | 10.58 | 205.07 | 0.4199 | 1086.0 | 999999 | |
| 2.24 | -2.00 | 1.22 | -2.00 | -15.34 | 209.84 | 10.49 | 204.72 | 0.4216 | 957.1 | 999999 | |
| 4.02 | -2.00 | 2.18 | -2.00 | -14.30 | 209.79 | 10.44 | 205.73 | 0.4063 | 1273.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -15.57 | 209.66 | 10.31 | 204.12 | 0.4237 | 642.0 | 420.1 | |
| 1.52 | -2.00 | 0.82 | -2.00 | -14.32 | 209.47 | 10.13 | 205.02 | 0.4045 | 1140.9 | 999999 | |
| 0.89 | 58.04 | 0.49 | 31.59 | -14.98 | 209.47 | 10.12 | 204.33 | 0.4139 | 880.1 | 590.6 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -14.42 | 209.22 | 9.88 | 204.38 | 0.4042 | 969.0 | 805.4 | |
| 5.01 | -12.00 | 2.72 | -12.00 | -15.03 | 209.16 | 9.81 | 203.60 | 0.4127 | 1033.3 | 999999 | |
| 1.34 | -12.00 | 0.73 | -12.00 | -14.74 | 209.05 | 9.70 | 203.66 | 0.4077 | 1062.9 | 999999 | |
| 0.89 | 2.77 | 0.48 | 1.50 | -14.18 | 208.90 | 9.55 | 203.90 | 0.3986 | 907.7 | 653.0 | |
| 1.25 | -12.00 | 0.68 | -12.00 | -15.95 | 208.94 | 9.60 | 202.27 | 0.4247 | 770.0 | 999999 | |
| 2.59 | -12.00 | 1.41 | -12.00 | -15.52 | 208.89 | 9.54 | 202.56 | 0.4182 | 963.7 | 999999 | |
| 3.13 | -12.00 | 1.71 | -12.00 | -15.94 | 208.75 | 9.40 | 201.87 | 0.4235 | 857.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.49 | 208.34 | 8.99 | 202.35 | 0.3997 | 814.0 | 692.5 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -15.93 | 208.40 | 9.05 | 201.14 | 0.4214 | 629.0 | 519.7 | |
| 3.76 | 9.75 | 2.02 | 5.25 | -14.04 | 208.26 | 8.91 | 202.62 | 0.3925 | 1030.0 | 779.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.00 | 208.28 | 8.93 | 200.82 | 0.4216 | 836.0 | 645.0 | |
| 1.52 | 6.08 | 0.83 | 3.32 | -16.09 | 208.06 | 8.71 | 200.27 | 0.4218 | 1011.6 | 383.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -12.73 | 207.87 | 8.52 | 203.05 | 0.3707 | -688.0 | -607.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -15.92 | 207.64 | 8.29 | 199.51 | 0.4169 | 683.0 | 520.0 | |
| 0.36 | 36.31 | 0.20 | 19.84 | -16.31 | 207.59 | 8.24 | 199.08 | 0.4226 | 910.5 | -33.7 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.84 | 207.55 | 8.20 | 198.58 | 0.4303 | 559.0 | 459.9 | |
| 0.00 | 3.13 | 0.00 | 1.73 | -18.10 | 207.48 | 8.13 | 197.50 | 0.4488 | 767.0 | 711.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.63 | 207.42 | 8.07 | 197.72 | 0.4415 | 698.0 | 533.6 | |
| 2.50 | -27.00 | 1.37 | -27.00 | -16.47 | 207.31 | 7.96 | 198.36 | 0.4236 | 658.0 | 999999 | |
| 1.70 | 10.46 | 0.91 | 5.60 | -13.75 | 207.15 | 7.80 | 200.29 | 0.3817 | 779.9 | 591.3 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.93 | 207.18 | 7.83 | 197.02 | 0.4448 | 598.0 | 522.4 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -13.46 | 206.92 | 7.57 | 200.01 | 0.3760 | 793.0 | 605.8 | |
| 0.00 | 3.22 | 0.00 | 1.72 | -13.45 | 206.64 | 7.29 | 199.33 | 0.3743 | 887.0 | 721.9 | |
| 1.61 | -27.00 | 0.88 | -27.00 | -16.66 | 206.68 | 7.33 | 196.86 | 0.4234 | -942.4 | 999999 | |
| 1.52 | 6.35 | 0.81 | 3.40 | -13.77 | 206.33 | 6.98 | 198.30 | 0.3776 | 903.0 | 179.4 | |
| 0.00 | 2.41 | 0.00 | 1.29 | -13.67 | 206.08 | 6.73 | 197.76 | 0.3748 | 712.0 | 582.7 | |
| 0.00 | 18.51 | 0.00 | 10.10 | -16.81 | 205.67 | 6.32 | 194.55 | 0.4213 | -829.0 | -661.1 | |
| 1.16 | 66.26 | 0.62 | 35.53 | -14.37 | 205.47 | 6.12 | 195.72 | 0.3829 | -849.2 | 410.0 | |
| 2.06 | -40.00 | 1.10 | -40.00 | -14.56 | 204.94 | 5.59 | 194.30 | 0.3836 | 1074.7 | 999999 | |
| 4.38 | -40.00 | 2.35 | -40.00 | -14.59 | 204.72 | 5.37 | 193.74 | 0.3832 | 1184.5 | 999999 | |
| 23.43 | 117.59 | 12.78 | 64.02 | -17.02 | 204.50 | 5.15 | 191.83 | 0.4204 | -1057.0 | -551.0 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.62 | 204.39 | 5.04 | 191.29 | 0.4294 | -638.0 | -609.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -15.04 | 204.26 | 4.91 | 192.34 | 0.3887 | 362.0 | 387.0 | |
| 0.45 | -40.00 | 0.24 | -40.00 | -14.84 | 204.07 | 4.72 | 191.98 | 0.3849 | 830.6 | 999999 | |
| 19.32 | -43.00 | 10.51 | -43.00 | -16.85 | 203.76 | 4.42 | 190.26 | 0.4155 | -1200.6 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -14.19 | 203.71 | 4.36 | 191.44 | 0.3733 | -893.0 | -616.3 | |
| 0.00 | 5.99 | 0.00 | 3.22 | -15.30 | 203.70 | 4.35 | 190.84 | 0.3909 | 325.0 | 200.4 | |
| 1.52 | -43.00 | 0.83 | -43.00 | -17.24 | 203.58 | 4.23 | 189.68 | 0.4212 | -809.3 | 999999 | |
| 0.00 | 15.29 | 0.00 | 8.20 | -14.90 | 203.47 | 4.12 | 190.48 | 0.3840 | -275.0 | -180.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.47 | 203.46 | 4.11 | 189.31 | 0.4245 | -753.0 | -576.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.61 | 203.46 | 4.12 | 189.27 | 0.4266 | -631.0 | -495.4 | |
| 2.86 | -43.00 | 1.56 | -43.00 | -17.14 | 203.42 | 4.07 | 189.36 | 0.4192 | -1019.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.17 | 203.41 | 4.06 | 188.94 | 0.4353 | -638.0 | -543.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.74 | 203.26 | 3.92 | 188.42 | 0.4438 | -894.0 | -696.7 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -17.37 | 203.20 | 3.86 | 188.78 | 0.4223 | -881.0 | -674.6 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.96 | 203.00 | 3.66 | 189.28 | 0.3836 | -969.0 | -782.4 | |
| 0.00 | 3.22 | 0.00 | 1.78 | -18.94 | 202.92 | 3.57 | 187.62 | 0.4461 | -693.0 | -637.2 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.37 | 202.87 | 3.52 | 188.39 | 0.4057 | -778.0 | -624.4 | |
| 1.25 | 7.69 | 0.67 | 4.14 | -15.78 | 202.76 | 3.42 | 188.36 | 0.3961 | -919.7 | -807.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -16.24 | 202.68 | 3.33 | 187.98 | 0.4032 | -909.0 | -723.0 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -12.82 | 202.63 | 3.28 | 189.27 | 0.3482 | -641.0 | -541.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -15.35 | 202.48 | 3.13 | 187.82 | 0.3886 | -898.0 | -713.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.84 | 202.45 | 3.10 | 187.58 | 0.3964 | -844.0 | -717.9 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.27 | 202.43 | 3.08 | 187.38 | 0.4031 | -714.0 | -719.6 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -18.43 | 202.46 | 3.11 | 186.79 | 0.4373 | -716.0 | -527.7 | |
| 0.00 | 5.90 | 0.00 | 3.20 | -16.77 | 202.40 | 3.05 | 187.16 | 0.4110 | -1024.0 | -823.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.61 | 202.38 | 3.04 | 187.50 | 0.3926 | -899.0 | -831.2 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -13.36 | 202.36 | 3.01 | 188.28 | 0.3563 | -931.0 | -804.1 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.31 | 202.35 | 3.00 | 186.32 | 0.4508 | -777.0 | -619.1 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -14.37 | 202.21 | 2.86 | 187.50 | 0.3722 | -765.0 | -708.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.16 | 202.20 | 2.85 | 186.30 | 0.4326 | -978.0 | -786.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.20 | 202.01 | 2.66 | 185.88 | 0.4328 | -816.0 | -641.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.36 | 201.81 | 2.46 | 185.63 | 0.4193 | -898.0 | -737.8 | |
| 0.80 | 151.31 | 0.43 | 81.21 | -15.61 | 201.76 | 2.41 | 185.96 | 0.3913 | -1000.4 | -504.8 | |
| 1.79 | -76.00 | 0.96 | -76.00 | -15.44 | 201.72 | 2.38 | 185.93 | 0.3886 | -938.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.56 | 201.71 | 2.37 | 185.37 | 0.4223 | -881.0 | -707.4 | |
| 6.89 | 26.02 | 3.73 | 14.09 | -16.39 | 201.39 | 2.04 | 184.87 | 0.4034 | -960.8 | -718.6 | |
| 35.50 | -76.00 | 19.08 | -76.00 | -15.54 | 201.35 | 2.00 | 184.97 | 0.3896 | -1194.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.46 | 201.30 | 1.95 | 184.46 | 0.4201 | -997.0 | -866.0 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -20.80 | 201.18 | 1.83 | 183.63 | 0.4723 | -888.0 | -683.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.45 | 201.02 | 1.67 | 183.81 | 0.4198 | -538.0 | -518.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.02 | 200.89 | 1.55 | 183.44 | 0.4286 | -800.0 | -682.5 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.93 | 200.77 | 1.42 | 183.06 | 0.4428 | -642.0 | -485.6 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -18.59 | 200.67 | 1.33 | 182.89 | 0.4374 | -785.0 | -646.1 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -18.52 | 200.51 | 1.17 | 182.55 | 0.4362 | -710.0 | -640.1 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.52 | 200.23 | 0.88 | 181.92 | 0.4360 | -771.0 | -512.2 | |
| 0.72 | 2.24 | 0.40 | 1.26 | -20.90 | 196.61 | -2.74 | 174.59 | 0.4749 | 546.6 | 542.1 | |
| 0.72 | 1.79 | 0.40 | 1.00 | -20.05 | 195.50 | -3.85 | 172.15 | 0.4639 | -791.2 | -702.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
