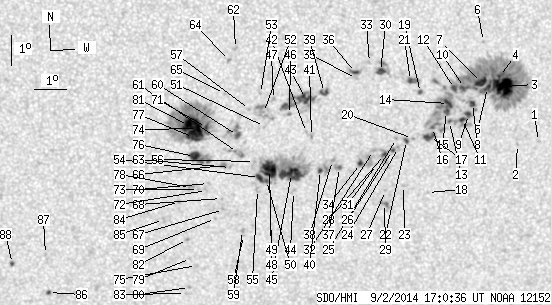

SDO HMI 2014-09-02 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 182.01 | 860.08 | 98.89 | 467.53 | -15.43 | 206.45 | 8.20 | 199.56 | 0.4142 | -106.9 | 65.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.16 | 212.32 | 14.08 | 210.73 | 0.4591 | 647.0 | 572.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.24 | 211.65 | 13.41 | 209.43 | 0.4549 | 749.0 | 581.1 | |
| 27.09 | 374.95 | 14.81 | 204.61 | -14.32 | 211.08 | 12.83 | 210.60 | 0.4246 | 1314.3 | 523.4 | |
| 1.07 | -3.00 | 0.58 | -3.00 | -13.99 | 210.93 | 12.69 | 210.72 | 0.4190 | 1280.2 | 999999 | |
| 2.95 | -3.00 | 1.61 | -3.00 | -14.34 | 210.57 | 12.32 | 209.57 | 0.4208 | 1074.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -12.85 | 210.36 | 12.12 | 211.04 | 0.3987 | -451.0 | -364.2 | |
| 7.42 | -3.00 | 4.04 | -3.00 | -14.17 | 210.36 | 12.12 | 209.37 | 0.4169 | 1378.6 | 999999 | |
| 2.41 | -3.00 | 1.32 | -3.00 | -14.85 | 210.11 | 11.87 | 208.07 | 0.4244 | 1059.7 | 999999 | |
| 2.32 | -3.00 | 1.27 | -3.00 | -15.21 | 210.01 | 11.76 | 207.45 | 0.4285 | 1018.3 | 999999 | |
| 3.40 | -3.00 | 1.85 | -3.00 | -14.32 | 209.83 | 11.59 | 208.10 | 0.4149 | 1275.3 | 999999 | |
| 2.24 | -3.00 | 1.22 | -3.00 | -15.36 | 209.82 | 11.58 | 206.91 | 0.4294 | 927.6 | 999999 | |
| 2.86 | -3.00 | 1.55 | -3.00 | -14.34 | 209.51 | 11.27 | 207.42 | 0.4129 | 1176.2 | 999999 | |
| 0.63 | -3.00 | 0.34 | -3.00 | -15.42 | 209.41 | 11.17 | 206.02 | 0.4273 | 928.1 | 999999 | |
| 3.84 | -3.00 | 2.10 | -3.00 | -14.83 | 209.35 | 11.10 | 206.53 | 0.4185 | 1065.7 | 999999 | |
| 2.50 | -3.00 | 1.37 | -3.00 | -15.09 | 209.30 | 11.05 | 206.15 | 0.4219 | 1032.9 | 999999 | |
| 0.80 | -3.00 | 0.44 | -3.00 | -15.60 | 208.88 | 10.63 | 204.75 | 0.4263 | 1034.1 | 999999 | |
| 5.01 | -3.00 | 2.74 | -3.00 | -15.89 | 208.79 | 10.55 | 204.29 | 0.4300 | 833.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.75 | 208.83 | 10.59 | 202.63 | 0.4568 | 456.0 | 296.3 | |
| 0.98 | 2.15 | 0.53 | 1.16 | -14.45 | 208.44 | 10.20 | 205.03 | 0.4068 | 937.3 | 833.2 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -15.95 | 208.25 | 10.01 | 203.13 | 0.4273 | 811.0 | 652.2 | |
| 1.97 | 5.99 | 1.06 | 3.23 | -14.05 | 208.10 | 9.86 | 204.73 | 0.3988 | 1041.3 | 878.8 | |
| 1.34 | 2.41 | 0.73 | 1.32 | -16.01 | 208.07 | 9.82 | 202.68 | 0.4271 | 1060.3 | 918.2 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.50 | 208.05 | 9.80 | 201.32 | 0.4486 | 724.0 | 580.3 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -16.23 | 207.82 | 9.58 | 201.97 | 0.4289 | 929.0 | 639.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.93 | 207.74 | 9.50 | 202.08 | 0.4241 | 926.0 | 745.5 | |
| 0.89 | 11.98 | 0.49 | 6.57 | -16.33 | 207.63 | 9.39 | 201.49 | 0.4292 | 877.5 | 260.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -17.65 | 207.47 | 9.23 | 200.06 | 0.4477 | 772.0 | 652.0 | |
| 1.43 | -26.00 | 0.78 | -26.00 | -16.45 | 207.38 | 9.14 | 200.86 | 0.4296 | 665.8 | 999999 | |
| 0.00 | 3.75 | 0.00 | 2.09 | -18.08 | 207.46 | 9.22 | 199.69 | 0.4540 | 815.0 | 708.0 | |
| 3.67 | 13.95 | 1.97 | 7.49 | -13.73 | 207.14 | 8.90 | 202.89 | 0.3880 | 756.9 | 581.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.78 | 207.14 | 8.90 | 200.09 | 0.4331 | -435.0 | -270.9 | |
| 0.00 | 2.68 | 0.00 | 1.47 | -16.31 | 207.03 | 8.78 | 200.23 | 0.4256 | -199.0 | -272.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -13.44 | 206.79 | 8.54 | 202.37 | 0.3814 | 836.0 | 658.5 | |
| 1.88 | 12.78 | 1.03 | 7.01 | -16.73 | 206.63 | 8.39 | 199.05 | 0.4297 | -890.0 | -302.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.95 | 206.40 | 8.15 | 200.94 | 0.3867 | 3.0 | 27.5 | |
| 1.70 | 3.40 | 0.91 | 1.82 | -13.75 | 206.36 | 8.11 | 201.04 | 0.3835 | 878.3 | 601.2 | |
| 0.80 | 3.93 | 0.44 | 2.15 | -16.85 | 205.97 | 7.72 | 197.55 | 0.4282 | -718.8 | -706.6 | |
| 0.00 | 2.50 | 0.00 | 1.37 | -16.62 | 205.73 | 7.49 | 197.23 | 0.4236 | -375.0 | -349.5 | |
| 2.77 | 5.63 | 1.49 | 3.02 | -14.38 | 205.40 | 7.16 | 198.21 | 0.3880 | -964.4 | -743.8 | |
| 1.61 | 9.74 | 0.88 | 5.33 | -16.94 | 205.36 | 7.12 | 196.20 | 0.4268 | -912.4 | -706.7 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.81 | 205.04 | 6.80 | 196.27 | 0.4082 | 709.0 | 542.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.68 | 204.88 | 6.63 | 195.99 | 0.4054 | 592.0 | 340.9 | |
| 9.39 | 33.35 | 5.04 | 17.91 | -14.57 | 204.81 | 6.57 | 196.65 | 0.3880 | 1150.2 | 747.7 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -17.63 | 204.53 | 6.28 | 193.97 | 0.4338 | -769.0 | -580.0 | |
| 20.20 | 103.17 | 11.04 | 56.30 | -17.03 | 204.44 | 6.20 | 194.15 | 0.4243 | -1086.1 | -589.6 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -15.08 | 204.32 | 6.08 | 195.12 | 0.3938 | 789.0 | 620.5 | |
| 0.00 | 2.24 | 0.00 | 1.20 | -14.58 | 203.81 | 5.56 | 194.21 | 0.3840 | -36.0 | 13.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.12 | 203.81 | 5.57 | 192.18 | 0.4388 | -608.0 | -513.7 | |
| 18.42 | -45.00 | 10.04 | -45.00 | -16.88 | 203.74 | 5.50 | 192.68 | 0.4195 | -1232.1 | 999999 | |
| 0.98 | -45.00 | 0.54 | -45.00 | -17.25 | 203.65 | 5.41 | 192.29 | 0.4249 | -836.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.46 | 203.54 | 5.30 | 193.03 | 0.3967 | -266.0 | -282.8 | |
| 0.00 | 17.08 | 0.00 | 9.18 | -15.00 | 203.50 | 5.26 | 193.20 | 0.3894 | 552.0 | 76.9 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.38 | 203.39 | 5.15 | 193.31 | 0.3792 | -806.0 | -666.8 | |
| 3.67 | -45.00 | 2.00 | -45.00 | -17.14 | 203.43 | 5.19 | 191.85 | 0.4225 | -1011.6 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -17.54 | 203.38 | 5.13 | 191.53 | 0.4286 | -674.0 | -597.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.61 | 203.26 | 5.01 | 191.73 | 0.4137 | -267.0 | -277.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.90 | 203.06 | 4.82 | 192.18 | 0.3862 | -973.0 | -761.9 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -19.08 | 202.97 | 4.73 | 189.99 | 0.4511 | -496.0 | -500.4 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -18.91 | 202.93 | 4.69 | 189.98 | 0.4484 | -798.0 | -622.3 | |
| 1.88 | 14.04 | 1.01 | 7.57 | -15.75 | 202.70 | 4.46 | 190.87 | 0.3984 | -858.0 | -784.2 | |
| 0.00 | 7.51 | 0.00 | 4.07 | -16.31 | 202.71 | 4.47 | 190.63 | 0.4073 | -899.0 | -806.3 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -12.92 | 202.58 | 4.34 | 192.12 | 0.3530 | -828.0 | -684.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.80 | 202.50 | 4.26 | 189.92 | 0.4144 | -941.0 | -701.4 | |
| 0.00 | 2.06 | 0.00 | 1.09 | -13.30 | 202.40 | 4.16 | 191.41 | 0.3586 | -864.0 | -722.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.37 | 202.27 | 4.02 | 190.48 | 0.3753 | -792.0 | -631.8 | |
| 0.00 | 3.67 | 0.00 | 1.99 | -16.73 | 202.28 | 4.04 | 189.44 | 0.4127 | -954.0 | -850.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.20 | 202.31 | 4.07 | 188.93 | 0.4358 | -968.0 | -821.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.83 | 202.24 | 3.99 | 188.91 | 0.4298 | -798.0 | -747.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.50 | 202.06 | 3.82 | 188.29 | 0.4398 | -674.0 | -506.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.32 | 201.81 | 3.57 | 188.16 | 0.4209 | -959.0 | -705.5 | |
| 1.79 | 139.47 | 0.96 | 74.91 | -15.47 | 201.72 | 3.48 | 188.62 | 0.3914 | -1019.3 | -549.4 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -17.56 | 201.75 | 3.51 | 187.94 | 0.4245 | -966.0 | -712.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.52 | 201.50 | 3.26 | 187.38 | 0.4234 | -792.0 | -714.6 | |
| 13.05 | -71.00 | 7.02 | -71.00 | -15.50 | 201.44 | 3.19 | 187.92 | 0.3913 | -1294.5 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -20.08 | 201.48 | 3.24 | 186.61 | 0.4632 | -370.0 | -351.4 | |
| 7.06 | 20.03 | 3.82 | 10.85 | -16.43 | 201.36 | 3.11 | 187.41 | 0.4058 | -1016.8 | -821.7 | |
| 6.26 | -71.00 | 3.37 | -71.00 | -15.80 | 201.32 | 3.07 | 187.52 | 0.3957 | -861.2 | 999999 | |
| 0.00 | 3.31 | 0.00 | 1.81 | -17.45 | 201.24 | 3.00 | 186.83 | 0.4218 | -874.0 | -773.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.84 | 201.29 | 3.04 | 186.27 | 0.4592 | -705.0 | -509.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.83 | 201.27 | 3.03 | 186.00 | 0.4744 | -917.0 | -740.9 | |
| 13.68 | -71.00 | 7.35 | -71.00 | -15.40 | 201.15 | 2.91 | 187.26 | 0.3891 | -1323.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -19.20 | 201.18 | 2.93 | 186.21 | 0.4490 | -823.0 | -688.2 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -21.04 | 201.15 | 2.90 | 185.71 | 0.4773 | -764.0 | -578.4 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.92 | 200.90 | 2.66 | 185.94 | 0.4285 | -771.0 | -717.9 | |
| 0.00 | 2.06 | 0.00 | 1.13 | -18.52 | 200.40 | 2.16 | 184.70 | 0.4372 | -903.0 | -577.1 | |
| 0.98 | 1.97 | 0.55 | 1.11 | -20.99 | 196.71 | -1.54 | 176.97 | 0.4750 | 562.7 | 455.5 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.69 | 196.62 | -1.62 | 176.63 | 0.4550 | -764.0 | -611.7 | |
| 1.07 | 2.24 | 0.60 | 1.25 | -20.00 | 195.56 | -2.69 | 174.50 | 0.4611 | -790.9 | -595.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
