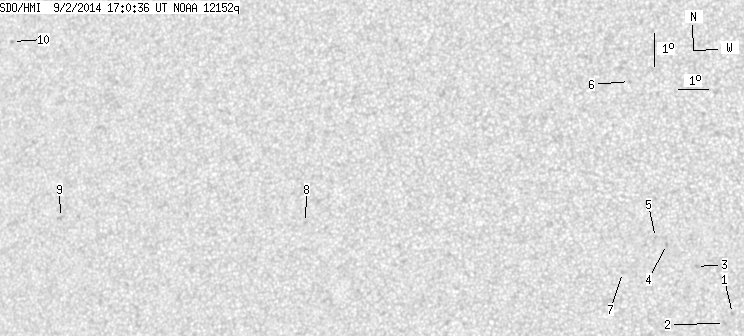

SDO HMI 2014-09-02 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.11 | 0.00 | 7.53 | 12.41 | 179.07 | -19.17 | 71.31 | 0.3337 | -352.6 | -173.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.68 | 9.95 | 188.18 | -10.06 | 73.88 | 0.1800 | -907.0 | -649.7 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 9.64 | 187.94 | -10.30 | 75.85 | 0.1827 | -812.0 | -611.5 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 11.35 | 187.00 | -11.24 | 68.68 | 0.2060 | -882.0 | -666.4 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 11.99 | 186.03 | -12.21 | 67.38 | 0.2251 | -1054.0 | -776.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 12.19 | 185.67 | -12.57 | 67.09 | 0.2319 | -705.0 | -558.0 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 16.92 | 184.56 | -13.68 | 52.73 | 0.2857 | -778.0 | -618.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 11.11 | 184.68 | -13.56 | 72.75 | 0.2420 | -732.0 | -613.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 12.22 | 174.25 | -24.00 | 76.14 | 0.4111 | 773.0 | 614.8 | |
| 0.00 | 2.50 | 0.00 | 1.47 | 11.88 | 165.66 | -32.58 | 79.16 | 0.5386 | 784.0 | 616.2 | |
| 0.00 | 1.25 | 0.00 | 0.76 | 17.10 | 162.95 | -35.29 | 70.66 | 0.5875 | 787.0 | 640.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
