SDO HMI 2014-09-02 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 178.88 | 863.42 | 97.38 | 470.11 | -15.44 | 206.37 | 8.68 | 200.57 | 0.4168 | -103.0 | 62.7 | |
|
previous
or next observation for the same group /

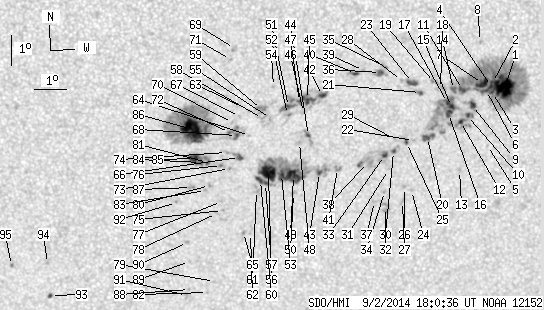

back to the solar disc SDO HMI 2014-09-02 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.85 | 339.16 | 13.62 | 185.52 | -14.31 | 211.13 | 13.44 | 211.79 | 0.4293 | 1344.2 | 541.2 | |
| 0.27 | -1.00 | 0.15 | -1.00 | -14.13 | 210.73 | 13.04 | 211.25 | 0.4238 | 1497.0 | 999999 | |
| 0.27 | -1.00 | 0.15 | -1.00 | -14.46 | 210.75 | 13.06 | 210.88 | 0.4283 | 994.3 | 999999 | |
| 1.52 | -1.00 | 0.83 | -1.00 | -14.26 | 210.71 | 13.02 | 211.04 | 0.4253 | 1310.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.19 | 210.70 | 13.01 | 208.75 | 0.4513 | 560.0 | 468.0 | |
| 0.80 | -1.00 | 0.44 | -1.00 | -14.39 | 210.56 | 12.87 | 210.58 | 0.4257 | 891.9 | 999999 | |
| 7.78 | -1.00 | 4.24 | -1.00 | -14.15 | 210.42 | 12.73 | 210.59 | 0.4215 | 1416.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -12.79 | 210.28 | 12.59 | 212.08 | 0.4019 | -623.0 | -506.4 | |
| 3.31 | -1.00 | 1.81 | -1.00 | -14.86 | 210.14 | 12.45 | 209.19 | 0.4289 | 1049.1 | 999999 | |
| 1.61 | -1.00 | 0.88 | -1.00 | -15.18 | 209.99 | 12.30 | 208.54 | 0.4323 | 1012.9 | 999999 | |
| 3.49 | -1.00 | 1.90 | -1.00 | -14.33 | 209.79 | 12.10 | 209.12 | 0.4189 | 1242.4 | 999999 | |
| 1.88 | -1.00 | 1.03 | -1.00 | -15.37 | 209.78 | 12.09 | 207.91 | 0.4333 | 962.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -16.99 | 209.85 | 12.16 | 206.32 | 0.4562 | 706.0 | 586.1 | |
| 2.06 | -1.00 | 1.12 | -1.00 | -14.32 | 209.50 | 11.81 | 208.55 | 0.4166 | 1251.7 | 999999 | |
| 2.77 | -1.00 | 1.51 | -1.00 | -14.87 | 209.46 | 11.77 | 207.84 | 0.4241 | 1108.5 | 999999 | |
| 3.67 | -1.00 | 2.01 | -1.00 | -15.10 | 209.38 | 11.69 | 207.42 | 0.4266 | 1003.4 | 999999 | |
| 2.23 | -1.00 | 1.22 | -1.00 | -14.74 | 209.33 | 11.64 | 207.72 | 0.4212 | 1004.8 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.65 | -14.28 | 209.08 | 11.39 | 207.75 | 0.4129 | 505.0 | 488.5 | |
| 0.00 | 3.75 | 0.00 | 2.04 | -14.08 | 208.88 | 11.19 | 207.56 | 0.4086 | 926.0 | 770.0 | |
| 4.29 | 7.96 | 2.36 | 4.37 | -15.87 | 208.75 | 11.06 | 205.34 | 0.4330 | 868.3 | 682.3 | |
| 1.07 | 4.11 | 0.58 | 2.23 | -14.39 | 208.45 | 10.76 | 206.30 | 0.4100 | 889.9 | 523.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -15.96 | 208.31 | 10.62 | 204.36 | 0.4314 | 736.0 | 520.7 | |
| 3.40 | 5.63 | 1.84 | 3.05 | -14.06 | 208.18 | 10.49 | 206.09 | 0.4033 | 1051.6 | 806.3 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -17.61 | 208.34 | 10.65 | 202.86 | 0.4552 | 676.0 | 506.0 | |
| 0.98 | 2.50 | 0.54 | 1.37 | -16.02 | 208.09 | 10.40 | 203.85 | 0.4308 | 938.0 | 764.5 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.51 | 208.10 | 10.41 | 202.50 | 0.4523 | 781.0 | 626.4 | |
| 0.00 | 3.22 | 0.00 | 1.79 | -17.97 | 208.07 | 10.38 | 202.02 | 0.4588 | 633.0 | 506.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -13.99 | 207.83 | 10.14 | 205.41 | 0.3999 | 713.0 | 401.4 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.91 | 207.73 | 10.04 | 203.22 | 0.4270 | 800.0 | 617.9 | |
| 1.07 | 15.47 | 0.59 | 8.49 | -16.30 | 207.69 | 10.00 | 202.76 | 0.4325 | 879.8 | 310.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.90 | 207.56 | 9.87 | 201.96 | 0.4403 | 634.0 | 496.0 | |
| 0.00 | 6.44 | 0.00 | 3.58 | -18.16 | 207.53 | 9.84 | 200.83 | 0.4584 | 503.0 | 607.0 | |
| 2.15 | -30.00 | 1.18 | -30.00 | -16.43 | 207.40 | 9.71 | 202.07 | 0.4326 | 605.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.62 | 207.47 | 9.78 | 201.15 | 0.4503 | 707.0 | 637.7 | |
| 0.00 | 2.77 | 0.00 | 1.49 | -13.52 | 207.27 | 9.58 | 204.68 | 0.3893 | 920.0 | 809.3 | |
| 2.23 | 4.11 | 1.20 | 2.21 | -13.71 | 207.16 | 9.47 | 204.21 | 0.3913 | 834.7 | 458.9 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -17.95 | 207.16 | 9.47 | 200.29 | 0.4534 | 529.0 | 431.3 | |
| 0.00 | 15.11 | 0.00 | 8.29 | -16.65 | 206.87 | 9.18 | 200.78 | 0.4327 | -205.0 | -351.7 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -13.63 | 206.62 | 8.93 | 203.05 | 0.3867 | 698.0 | 524.3 | |
| 1.25 | 4.74 | 0.67 | 2.54 | -13.73 | 206.37 | 8.68 | 202.38 | 0.3866 | 790.0 | 607.9 | |
| 0.00 | 3.84 | 0.00 | 2.11 | -16.83 | 205.92 | 8.23 | 198.65 | 0.4304 | -698.0 | -663.1 | |
| 2.59 | 38.89 | 1.39 | 20.91 | -14.42 | 205.35 | 7.66 | 199.36 | 0.3912 | -971.3 | 478.0 | |
| 1.43 | 120.50 | 0.78 | 65.85 | -16.95 | 205.35 | 7.66 | 197.35 | 0.4294 | -891.1 | -538.4 | |
| 1.07 | 7.15 | 0.58 | 3.88 | -15.72 | 204.96 | 7.27 | 197.39 | 0.4090 | 594.6 | 324.1 | |
| 5.27 | -42.00 | 2.84 | -42.00 | -14.54 | 204.88 | 7.19 | 198.16 | 0.3906 | 1122.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -14.96 | 204.77 | 7.08 | 197.56 | 0.3965 | 66.0 | 84.3 | |
| 1.07 | -42.00 | 0.58 | -42.00 | -14.60 | 204.63 | 6.94 | 197.52 | 0.3903 | 1140.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.94 | 204.68 | 6.99 | 196.61 | 0.4111 | -299.0 | -260.6 | |
| 18.33 | -43.00 | 10.03 | -43.00 | -17.03 | 204.53 | 6.84 | 195.52 | 0.4270 | -1028.3 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.43 | -17.63 | 204.55 | 6.86 | 195.19 | 0.4362 | -749.0 | -509.4 | |
| 2.06 | -42.00 | 1.11 | -42.00 | -14.76 | 204.29 | 6.60 | 196.59 | 0.3912 | 912.9 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.40 | -15.02 | 204.27 | 6.58 | 196.34 | 0.3951 | 490.0 | 443.3 | |
| 5.81 | -43.00 | 3.18 | -43.00 | -16.99 | 204.14 | 6.45 | 194.72 | 0.4248 | -1124.8 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -14.10 | 203.80 | 6.11 | 195.90 | 0.3788 | -762.0 | -548.4 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.14 | 203.74 | 6.05 | 195.00 | 0.3947 | 523.0 | 402.0 | |
| 18.68 | -43.00 | 10.20 | -43.00 | -16.92 | 203.73 | 6.04 | 193.85 | 0.4221 | -1227.0 | 999999 | |
| 1.52 | -43.00 | 0.83 | -43.00 | -17.28 | 203.64 | 5.95 | 193.45 | 0.4274 | -816.2 | 999999 | |
| 0.00 | 4.29 | 0.00 | 2.31 | -15.14 | 203.49 | 5.80 | 194.40 | 0.3936 | 420.0 | 301.7 | |
| 0.00 | 7.69 | 0.00 | 4.13 | -14.84 | 203.45 | 5.76 | 194.50 | 0.3888 | -243.0 | -240.7 | |
| 3.31 | -43.00 | 1.81 | -43.00 | -17.18 | 203.48 | 5.79 | 193.16 | 0.4252 | -1010.2 | 999999 | |
| 0.00 | 5.54 | 0.00 | 3.04 | -17.51 | 203.36 | 5.67 | 192.72 | 0.4299 | -539.0 | -627.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.95 | 203.22 | 5.53 | 191.69 | 0.4515 | -573.0 | -538.4 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.87 | 203.07 | 5.38 | 193.57 | 0.3878 | -926.0 | -744.6 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.69 | 203.09 | 5.40 | 193.13 | 0.4007 | 492.0 | 342.5 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.91 | 202.99 | 5.30 | 191.24 | 0.4503 | -796.0 | -708.3 | |
| 2.15 | 6.26 | 1.16 | 3.40 | -16.41 | 202.79 | 5.10 | 192.03 | 0.4109 | -941.6 | -846.4 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -15.06 | 202.76 | 5.07 | 192.70 | 0.3897 | -948.0 | -656.8 | |
| 1.70 | 19.49 | 0.92 | 10.52 | -15.68 | 202.68 | 4.99 | 192.16 | 0.3992 | -833.9 | -653.2 | |
| 0.00 | 3.13 | 0.00 | 1.66 | -12.85 | 202.56 | 4.87 | 193.58 | 0.3540 | -583.0 | -633.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.26 | 202.54 | 4.85 | 192.07 | 0.3920 | -852.0 | -655.4 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -13.21 | 202.44 | 4.75 | 193.03 | 0.3592 | -768.0 | -647.3 | |
| 0.45 | -68.00 | 0.24 | -68.00 | -15.58 | 202.46 | 4.77 | 191.69 | 0.3968 | -1043.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.77 | 202.48 | 4.79 | 191.15 | 0.4155 | -899.0 | -764.6 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -16.24 | 202.38 | 4.69 | 191.16 | 0.4069 | -887.0 | -802.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.17 | 202.30 | 4.61 | 190.11 | 0.4367 | -814.0 | -770.7 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -16.67 | 202.23 | 4.54 | 190.62 | 0.4132 | -1006.0 | -835.1 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.86 | 202.26 | 4.57 | 190.15 | 0.4319 | -898.0 | -570.8 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -18.26 | 202.11 | 4.42 | 189.66 | 0.4377 | -767.0 | -655.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.57 | 202.10 | 4.41 | 188.80 | 0.4731 | -467.0 | -365.4 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -17.33 | 201.86 | 4.17 | 189.50 | 0.4225 | -975.0 | -792.1 | |
| 1.07 | 18.77 | 0.58 | 10.18 | -16.56 | 201.78 | 4.09 | 189.64 | 0.4103 | -877.8 | -830.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.94 | 201.89 | 4.20 | 188.25 | 0.4783 | -521.0 | -387.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.49 | 201.74 | 4.05 | 189.16 | 0.4248 | -972.0 | -778.3 | |
| 1.79 | -81.00 | 0.97 | -81.00 | -16.56 | 201.56 | 3.87 | 189.13 | 0.4097 | -944.2 | 999999 | |
| 7.06 | -81.00 | 3.83 | -81.00 | -16.43 | 201.37 | 3.68 | 188.74 | 0.4071 | -1033.4 | 999999 | |
| 29.41 | 146.25 | 15.83 | 78.59 | -15.47 | 201.29 | 3.60 | 188.93 | 0.3917 | -1286.8 | -541.2 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -17.39 | 201.29 | 3.60 | 188.20 | 0.4221 | -899.0 | -766.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.83 | 201.30 | 3.61 | 187.14 | 0.4755 | -808.0 | -632.5 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.88 | 201.28 | 3.59 | 187.37 | 0.4608 | -722.0 | -517.2 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -19.23 | 201.20 | 3.51 | 187.40 | 0.4506 | -812.0 | -608.2 | |
| 0.00 | 2.68 | 0.00 | 1.51 | -21.04 | 201.21 | 3.52 | 186.90 | 0.4784 | -884.0 | -530.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.88 | 200.82 | 3.13 | 187.00 | 0.4289 | -900.0 | -719.4 | |
| 1.16 | 2.32 | 0.65 | 1.31 | -21.02 | 196.80 | -0.89 | 178.24 | 0.4751 | 455.0 | 373.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.92 | 196.71 | -0.98 | 177.98 | 0.4582 | -734.0 | -607.2 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -19.99 | 195.55 | -2.14 | 175.61 | 0.4603 | -916.0 | -804.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
