SDO HMI 2014-09-02 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.45 | 0.00 | 5.70 | 11.22 | 175.30 | -22.39 | 79.09 | 0.3797 | 134.4 | 175.8 | |
|
previous
or next observation for the same group /

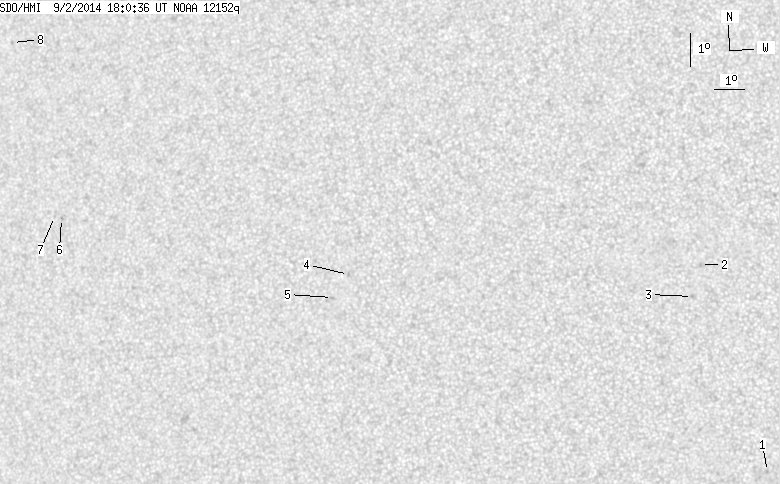

back to the solar disc SDO HMI 2014-09-02 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.67 | 5.17 | 189.21 | -8.48 | 103.10 | 0.1515 | -881.0 | -654.0 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 11.39 | 186.98 | -10.71 | 67.60 | 0.1979 | -879.0 | -747.4 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 10.42 | 186.77 | -10.92 | 72.66 | 0.1961 | -848.0 | -584.1 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 10.71 | 175.70 | -21.99 | 79.22 | 0.3761 | 859.0 | 756.3 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 9.99 | 175.22 | -22.47 | 81.25 | 0.3824 | 743.0 | 550.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 11.86 | 165.63 | -32.06 | 79.12 | 0.5311 | 832.0 | 716.3 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 11.90 | 165.37 | -32.32 | 79.09 | 0.5349 | 555.0 | 414.6 | |
| 0.00 | 1.43 | 0.00 | 0.87 | 17.07 | 162.90 | -34.78 | 70.53 | 0.5806 | 694.0 | 558.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
