SDO HMI 2014-09-02 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.19 | 869.39 | 98.83 | 474.24 | -15.48 | 206.34 | 9.20 | 201.65 | 0.4205 | -94.8 | 38.6 | |
|
previous
or next observation for the same group /

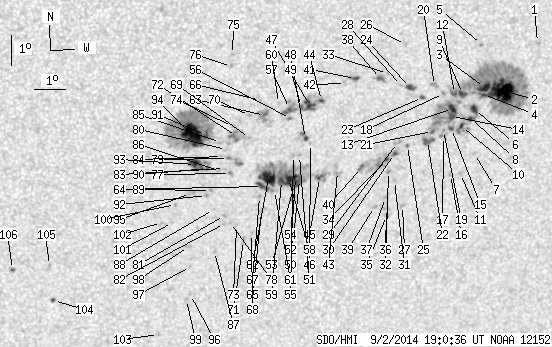

back to the solar disc SDO HMI 2014-09-02 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.22 | -12.74 | 212.09 | 14.95 | 216.74 | 0.4225 | 556.0 | 557.3 | |
| 36.11 | 333.16 | 19.83 | 182.66 | -14.26 | 211.03 | 13.89 | 212.70 | 0.4325 | 1301.3 | 501.0 | |
| 7.24 | -2.00 | 3.96 | -2.00 | -14.14 | 210.47 | 13.34 | 211.80 | 0.4263 | 1426.5 | 999999 | |
| 1.25 | -2.00 | 0.69 | -2.00 | -14.37 | 210.45 | 13.32 | 211.47 | 0.4292 | 962.0 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -12.75 | 210.30 | 13.16 | 213.30 | 0.4063 | -641.0 | -565.2 | |
| 4.38 | -2.00 | 2.41 | -2.00 | -14.85 | 210.19 | 13.06 | 210.39 | 0.4336 | 1000.4 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -16.29 | 210.29 | 13.15 | 208.90 | 0.4538 | 539.0 | 425.6 | |
| 1.70 | -2.00 | 0.93 | -2.00 | -15.14 | 210.08 | 12.95 | 209.83 | 0.4366 | 966.3 | 999999 | |
| 3.49 | -2.00 | 1.90 | -2.00 | -14.31 | 209.78 | 12.64 | 210.23 | 0.4230 | 1209.8 | 999999 | |
| 2.06 | -2.00 | 1.13 | -2.00 | -15.39 | 209.81 | 12.67 | 209.01 | 0.4380 | 961.0 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -16.94 | 209.88 | 12.74 | 207.45 | 0.4596 | 762.0 | 576.7 | |
| 2.15 | -2.00 | 1.17 | -2.00 | -14.31 | 209.52 | 12.39 | 209.73 | 0.4209 | 1223.8 | 999999 | |
| 4.47 | -2.00 | 2.45 | -2.00 | -14.79 | 209.49 | 12.35 | 209.08 | 0.4273 | 1091.5 | 999999 | |
| 3.04 | -2.00 | 1.67 | -2.00 | -15.05 | 209.47 | 12.33 | 208.74 | 0.4308 | 1078.5 | 999999 | |
| 1.34 | -2.00 | 0.74 | -2.00 | -15.45 | 209.49 | 12.36 | 208.34 | 0.4363 | 927.3 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -16.96 | 209.56 | 12.42 | 206.83 | 0.4577 | 766.0 | 661.4 | |
| 0.00 | 4.11 | 0.00 | 2.26 | -15.70 | 209.25 | 12.11 | 207.59 | 0.4381 | 630.0 | 616.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.30 | 209.17 | 12.03 | 209.04 | 0.4180 | 926.0 | 774.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -15.50 | 209.24 | 12.10 | 207.78 | 0.4353 | 1106.0 | 917.1 | |
| 0.00 | 3.93 | 0.00 | 2.14 | -14.03 | 208.87 | 11.73 | 208.74 | 0.4120 | 933.0 | 784.8 | |
| 1.16 | -2.00 | 0.64 | -2.00 | -15.53 | 208.89 | 11.75 | 207.07 | 0.4330 | 945.4 | 999999 | |
| 0.00 | 8.94 | 0.00 | 4.92 | -15.82 | 208.74 | 11.61 | 206.47 | 0.4361 | 949.0 | 716.8 | |
| 1.07 | 2.41 | 0.58 | 1.31 | -14.41 | 208.51 | 11.37 | 207.55 | 0.4146 | 903.0 | 720.4 | |
| 3.04 | 6.17 | 1.65 | 3.34 | -14.07 | 208.11 | 10.97 | 207.10 | 0.4070 | 1050.6 | 750.9 | |
| 0.45 | 1.52 | 0.25 | 0.83 | -15.97 | 208.11 | 10.97 | 205.06 | 0.4339 | 781.6 | 748.9 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -12.68 | 207.89 | 10.75 | 208.30 | 0.3856 | -727.0 | -619.1 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -17.95 | 208.06 | 10.93 | 203.09 | 0.4618 | 737.0 | 586.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -14.00 | 207.82 | 10.68 | 206.57 | 0.4039 | 729.0 | 453.7 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -15.86 | 207.78 | 10.65 | 204.51 | 0.4302 | 681.0 | 769.4 | |
| 1.34 | 33.34 | 0.74 | 18.33 | -16.22 | 207.71 | 10.57 | 204.00 | 0.4349 | 878.5 | -29.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.11 | 207.76 | 10.62 | 203.26 | 0.4480 | 659.0 | 501.1 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -16.81 | 207.55 | 10.41 | 203.12 | 0.4423 | 553.0 | 443.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -13.60 | 207.36 | 10.22 | 206.02 | 0.3949 | 1008.0 | 748.5 | |
| 1.16 | -30.00 | 0.64 | -30.00 | -16.41 | 207.46 | 10.32 | 203.32 | 0.4361 | 715.5 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -18.27 | 207.57 | 10.43 | 201.87 | 0.4635 | 573.0 | 533.7 | |
| 0.00 | 3.04 | 0.00 | 1.69 | -18.04 | 207.55 | 10.42 | 202.04 | 0.4600 | 812.0 | 515.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.67 | 207.50 | 10.36 | 202.25 | 0.4544 | 693.0 | 552.6 | |
| 1.61 | 5.63 | 0.87 | 3.04 | -13.75 | 207.14 | 10.01 | 205.37 | 0.3957 | 890.2 | 580.0 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -17.96 | 207.16 | 10.02 | 201.35 | 0.4567 | 619.0 | 557.0 | |
| 1.25 | -30.00 | 0.69 | -30.00 | -16.66 | 206.67 | 9.54 | 201.50 | 0.4349 | -878.1 | 999999 | |
| 1.52 | 4.11 | 0.82 | 2.21 | -13.74 | 206.35 | 9.22 | 203.61 | 0.3902 | 908.0 | 616.7 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -13.89 | 206.04 | 8.91 | 202.74 | 0.3905 | 115.0 | 122.5 | |
| 0.00 | 7.06 | 0.00 | 3.88 | -16.77 | 205.91 | 8.77 | 199.83 | 0.4324 | -638.0 | -540.8 | |
| 1.43 | 23.78 | 0.77 | 12.80 | -14.43 | 205.31 | 8.17 | 200.53 | 0.3942 | -807.8 | 422.8 | |
| 2.06 | 113.62 | 1.13 | 62.16 | -16.96 | 205.34 | 8.21 | 198.50 | 0.4323 | -804.2 | -548.8 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.83 | 205.01 | 7.88 | 198.66 | 0.4137 | 660.0 | 450.3 | |
| 5.45 | -44.00 | 2.94 | -44.00 | -14.55 | 204.93 | 7.80 | 199.56 | 0.3940 | 1110.4 | 999999 | |
| 1.43 | 7.06 | 0.78 | 3.83 | -15.66 | 204.85 | 7.71 | 198.43 | 0.4103 | 697.6 | 450.9 | |
| 0.98 | -44.00 | 0.53 | -44.00 | -14.61 | 204.68 | 7.55 | 198.92 | 0.3936 | 1100.5 | 999999 | |
| 2.23 | -45.00 | 1.22 | -45.00 | -17.01 | 204.71 | 7.57 | 197.11 | 0.4300 | -885.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.22 | 204.68 | 7.54 | 197.63 | 0.4179 | -981.0 | -740.4 | |
| 3.22 | -45.00 | 1.76 | -45.00 | -16.94 | 204.58 | 7.44 | 196.88 | 0.4284 | -1123.3 | 999999 | |
| 4.56 | -45.00 | 2.50 | -45.00 | -17.17 | 204.55 | 7.42 | 196.67 | 0.4318 | -823.8 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.02 | -17.64 | 204.54 | 7.41 | 196.33 | 0.4387 | -784.0 | -571.7 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -16.21 | 204.49 | 7.35 | 197.21 | 0.4169 | -965.0 | -653.0 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -15.00 | 204.35 | 7.21 | 197.83 | 0.3978 | 711.0 | 539.4 | |
| 0.00 | 12.87 | 0.00 | 6.93 | -14.67 | 204.31 | 7.17 | 198.00 | 0.3925 | 1068.0 | 806.5 | |
| 7.33 | -45.00 | 4.01 | -45.00 | -16.97 | 204.36 | 7.22 | 196.39 | 0.4278 | -1148.4 | 999999 | |
| 5.81 | -45.00 | 3.18 | -45.00 | -17.03 | 204.14 | 7.00 | 195.87 | 0.4278 | -1075.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.50 | 203.96 | 6.82 | 197.30 | 0.3882 | 440.0 | 283.1 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.36 | 203.92 | 6.79 | 195.20 | 0.4319 | -459.0 | -505.0 | |
| 16.27 | -45.00 | 8.89 | -45.00 | -16.93 | 203.72 | 6.58 | 195.04 | 0.4244 | -1253.9 | 999999 | |
| 0.00 | 12.87 | 0.00 | 6.93 | -14.88 | 203.53 | 6.39 | 195.99 | 0.3922 | 184.0 | 59.8 | |
| 4.74 | -45.00 | 2.59 | -45.00 | -17.22 | 203.54 | 6.40 | 194.46 | 0.4282 | -914.6 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.06 | 203.53 | 6.40 | 193.96 | 0.4409 | -706.0 | -555.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.39 | 203.39 | 6.25 | 196.01 | 0.3840 | -697.0 | -600.7 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -17.55 | 203.45 | 6.32 | 194.08 | 0.4330 | -769.0 | -632.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.79 | 203.24 | 6.10 | 192.95 | 0.4510 | -800.0 | -630.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.63 | 203.07 | 5.94 | 194.42 | 0.4019 | 641.0 | 340.9 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.88 | 203.05 | 5.92 | 194.87 | 0.3901 | -923.0 | -732.9 | |
| 0.00 | 3.13 | 0.00 | 1.74 | -19.02 | 202.99 | 5.85 | 192.32 | 0.4537 | -671.0 | -576.7 | |
| 0.00 | 15.20 | 0.00 | 8.20 | -15.56 | 202.66 | 5.53 | 193.50 | 0.3992 | -846.0 | -713.6 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.51 | 202.75 | 5.61 | 192.07 | 0.4452 | -698.0 | -579.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -15.23 | 202.53 | 5.39 | 193.38 | 0.3935 | -886.0 | -779.5 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -12.89 | 202.48 | 5.34 | 194.81 | 0.3565 | -974.0 | -732.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -13.28 | 202.45 | 5.32 | 194.47 | 0.3625 | -858.0 | -687.7 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -16.78 | 202.51 | 5.37 | 192.44 | 0.4176 | -862.0 | -596.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.41 | 202.55 | 5.42 | 191.71 | 0.4429 | -637.0 | -524.7 | |
| 0.45 | 7.87 | 0.24 | 4.27 | -16.28 | 202.43 | 5.29 | 192.54 | 0.4096 | -1041.2 | -852.2 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -15.98 | 202.36 | 5.22 | 192.54 | 0.4047 | -727.0 | -636.2 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -18.17 | 202.35 | 5.22 | 191.41 | 0.4387 | -1053.0 | -801.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.44 | 202.36 | 5.23 | 191.30 | 0.4428 | -688.0 | -597.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.61 | 202.31 | 5.17 | 192.09 | 0.4143 | -623.0 | -566.4 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -16.21 | 202.24 | 5.10 | 192.14 | 0.4078 | -880.0 | -622.8 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -15.75 | 202.16 | 5.03 | 192.21 | 0.4004 | -559.0 | -551.2 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -16.67 | 202.12 | 4.99 | 191.63 | 0.4147 | -864.0 | -726.2 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -19.38 | 202.07 | 4.93 | 190.28 | 0.4564 | -49.0 | -125.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.97 | 202.00 | 4.86 | 190.74 | 0.4344 | -617.0 | -528.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.33 | 201.89 | 4.75 | 190.78 | 0.4242 | -977.0 | -865.1 | |
| 0.80 | 18.77 | 0.44 | 10.19 | -16.60 | 201.77 | 4.64 | 190.87 | 0.4125 | -906.0 | -816.1 | |
| 3.31 | 147.76 | 1.78 | 79.46 | -15.51 | 201.72 | 4.58 | 191.27 | 0.3952 | -1012.2 | -544.5 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.50 | 201.76 | 4.63 | 190.43 | 0.4264 | -845.0 | -705.2 | |
| 9.56 | -90.00 | 5.19 | -90.00 | -16.46 | 201.39 | 4.25 | 190.05 | 0.4092 | -1006.4 | 999999 | |
| 30.12 | -91.00 | 16.22 | -91.00 | -15.51 | 201.28 | 4.14 | 190.22 | 0.3938 | -1255.0 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.91 | -17.43 | 201.25 | 4.12 | 189.33 | 0.4239 | -877.0 | -703.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.84 | 201.33 | 4.20 | 188.28 | 0.4768 | -729.0 | -552.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.88 | 201.31 | 4.17 | 188.55 | 0.4621 | -720.0 | -572.2 | |
| 0.00 | 2.15 | 0.00 | 1.19 | -19.20 | 201.23 | 4.09 | 188.62 | 0.4515 | -854.0 | -620.6 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -21.01 | 201.21 | 4.07 | 187.99 | 0.4791 | -811.0 | -627.7 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.79 | 200.78 | 3.65 | 188.16 | 0.4285 | -898.0 | -670.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.39 | 200.70 | 3.56 | 187.77 | 0.4377 | -236.0 | -190.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.39 | 200.35 | 3.21 | 187.02 | 0.4369 | -718.0 | -579.2 | |
| 0.00 | 1.70 | 0.00 | 0.97 | -22.21 | 200.33 | 3.19 | 185.99 | 0.4957 | -741.0 | -491.3 | |
| 0.98 | 2.06 | 0.55 | 1.16 | -21.02 | 196.90 | -0.24 | 179.53 | 0.4750 | 589.6 | 509.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.82 | 196.77 | -0.36 | 179.25 | 0.4564 | -801.0 | -703.8 | |
| 0.63 | 1.88 | 0.35 | 1.05 | -19.96 | 195.58 | -1.56 | 176.80 | 0.4592 | -875.6 | -633.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
