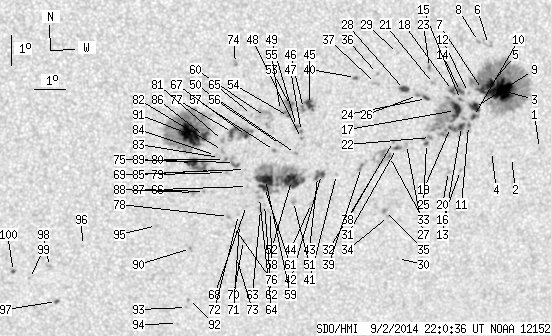

SDO HMI 2014-09-02 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 169.34 | 832.54 | 92.78 | 456.80 | -15.43 | 206.47 | 10.99 | 205.34 | 0.4316 | -41.4 | 33.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.40 | -16.22 | 212.48 | 17.00 | 215.56 | 0.4846 | 533.0 | 530.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.48 | 211.58 | 16.10 | 213.79 | 0.4801 | 578.0 | 513.2 | |
| 31.38 | 219.56 | 17.37 | 121.43 | -14.27 | 211.08 | 15.60 | 215.76 | 0.4479 | 1269.9 | 433.4 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -16.26 | 210.90 | 15.42 | 212.93 | 0.4716 | 569.0 | 497.1 | |
| 4.83 | -3.00 | 2.66 | -3.00 | -14.06 | 210.71 | 15.23 | 215.39 | 0.4419 | 1476.0 | 999999 | |
| 0.00 | 4.20 | 0.00 | 2.30 | -12.77 | 210.56 | 15.08 | 216.93 | 0.4242 | 334.0 | 413.8 | |
| 3.40 | -3.00 | 1.87 | -3.00 | -14.22 | 210.46 | 14.98 | 214.74 | 0.4416 | 1188.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -12.66 | 210.23 | 14.76 | 216.48 | 0.4197 | -747.0 | -549.4 | |
| 6.35 | 113.36 | 3.51 | 62.66 | -14.80 | 210.24 | 14.76 | 213.59 | 0.4471 | 1005.9 | 534.4 | |
| 1.79 | -9.00 | 0.99 | -9.00 | -15.09 | 210.23 | 14.75 | 213.20 | 0.4508 | 920.2 | 999999 | |
| 0.54 | -9.00 | 0.30 | -9.00 | -15.38 | 210.09 | 14.61 | 212.59 | 0.4534 | 680.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -14.30 | 210.01 | 14.54 | 213.82 | 0.4388 | 807.0 | 745.9 | |
| 2.86 | -9.00 | 1.59 | -9.00 | -15.40 | 209.86 | 14.38 | 212.16 | 0.4518 | 967.3 | 999999 | |
| 2.23 | 15.47 | 1.23 | 8.50 | -14.26 | 209.75 | 14.28 | 213.40 | 0.4360 | 1171.1 | 721.1 | |
| 0.45 | -9.00 | 0.25 | -9.00 | -14.52 | 209.77 | 14.29 | 213.10 | 0.4395 | 923.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -16.85 | 209.94 | 14.46 | 210.59 | 0.4714 | 689.0 | 510.7 | |
| 10.37 | -9.00 | 5.72 | -9.00 | -14.87 | 209.63 | 14.15 | 212.40 | 0.4430 | 1018.8 | 999999 | |
| 1.97 | -14.00 | 1.08 | -14.00 | -14.22 | 209.49 | 14.02 | 212.97 | 0.4332 | 1146.9 | 999999 | |
| 0.98 | -9.00 | 0.54 | -9.00 | -15.42 | 209.51 | 14.03 | 211.49 | 0.4492 | 980.9 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -16.87 | 209.55 | 14.07 | 209.89 | 0.4687 | 671.0 | 580.5 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -13.97 | 208.87 | 13.39 | 212.10 | 0.4246 | 1016.0 | 795.7 | |
| 0.00 | 2.41 | 0.00 | 1.34 | -15.73 | 208.88 | 13.40 | 209.98 | 0.4483 | 943.0 | 774.8 | |
| 0.00 | 2.77 | 0.00 | 1.51 | -13.45 | 208.71 | 13.23 | 212.48 | 0.4163 | 923.0 | 731.8 | |
| 1.52 | 3.04 | 0.83 | 1.67 | -14.45 | 208.67 | 13.19 | 211.12 | 0.4295 | 788.9 | 651.3 | |
| 0.98 | 4.20 | 0.54 | 2.33 | -15.93 | 208.77 | 13.29 | 209.55 | 0.4500 | 683.2 | 656.6 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -14.34 | 208.38 | 12.90 | 210.68 | 0.4256 | 844.0 | 660.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -15.94 | 208.12 | 12.64 | 208.33 | 0.4453 | 1008.0 | 719.3 | |
| 3.93 | 5.90 | 2.14 | 3.22 | -14.14 | 207.95 | 12.47 | 210.10 | 0.4194 | 928.7 | 619.4 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -12.96 | 207.67 | 12.19 | 211.01 | 0.4011 | -679.0 | -493.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -19.74 | 208.10 | 12.62 | 204.53 | 0.4973 | 388.0 | 361.9 | |
| 1.16 | 4.11 | 0.64 | 2.27 | -16.06 | 207.81 | 12.33 | 207.60 | 0.4447 | 858.5 | 677.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.83 | 207.70 | 12.22 | 207.64 | 0.4407 | 653.0 | 648.1 | |
| 0.54 | 19.76 | 0.30 | 10.92 | -16.32 | 207.60 | 12.12 | 206.93 | 0.4468 | 686.8 | 13.1 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.31 | 207.70 | 12.22 | 205.13 | 0.4751 | 389.0 | 381.2 | |
| 0.00 | 2.68 | 0.00 | 1.50 | -18.11 | 207.55 | 12.07 | 205.06 | 0.4713 | 808.0 | 553.8 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -13.59 | 207.06 | 11.58 | 208.95 | 0.4050 | 895.0 | 722.4 | |
| 0.00 | 2.86 | 0.00 | 1.55 | -13.91 | 207.01 | 11.54 | 208.46 | 0.4091 | 788.0 | 635.1 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -16.80 | 207.18 | 11.70 | 205.63 | 0.4506 | -240.0 | -272.6 | |
| 0.00 | 3.13 | 0.00 | 1.73 | -16.66 | 206.72 | 11.24 | 204.88 | 0.4455 | -864.0 | -670.6 | |
| 0.54 | 1.88 | 0.29 | 1.01 | -13.70 | 206.37 | 10.89 | 207.35 | 0.4013 | 858.0 | 676.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.87 | 205.92 | 10.45 | 203.13 | 0.4435 | -759.0 | -576.4 | |
| 2.15 | 7.15 | 1.18 | 3.94 | -16.85 | 205.44 | 9.96 | 202.18 | 0.4404 | -823.0 | -365.2 | |
| 1.61 | -42.00 | 0.89 | -42.00 | -16.92 | 205.32 | 9.84 | 201.87 | 0.4406 | -549.7 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -17.81 | 205.17 | 9.69 | 200.82 | 0.4528 | -670.0 | -521.7 | |
| 4.29 | 7.24 | 2.32 | 3.92 | -14.54 | 204.95 | 9.47 | 203.34 | 0.4038 | 1115.2 | 781.3 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -14.67 | 204.76 | 9.29 | 202.80 | 0.4045 | 1071.0 | 844.1 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.42 | 204.73 | 9.26 | 202.02 | 0.4153 | 638.0 | 512.1 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.65 | 204.74 | 9.27 | 201.83 | 0.4188 | 584.0 | 462.6 | |
| 0.72 | 2.68 | 0.39 | 1.46 | -15.25 | 204.57 | 9.09 | 201.81 | 0.4119 | 716.9 | 557.6 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.14 | 204.57 | 9.10 | 201.03 | 0.4250 | -793.0 | -635.5 | |
| 0.00 | 3.13 | 0.00 | 1.73 | -17.73 | 204.59 | 9.11 | 199.73 | 0.4485 | -768.0 | -612.7 | |
| 15.73 | 102.81 | 8.66 | 56.48 | -17.03 | 204.49 | 9.01 | 200.09 | 0.4377 | -1032.6 | -590.6 | |
| 0.00 | 9.39 | 0.00 | 5.07 | -14.56 | 204.35 | 8.87 | 201.98 | 0.4004 | 1023.0 | 830.4 | |
| 0.45 | 2.86 | 0.24 | 1.55 | -14.92 | 204.30 | 8.82 | 201.54 | 0.4054 | 363.0 | 578.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -14.72 | 204.04 | 8.56 | 201.14 | 0.4009 | 520.0 | 448.9 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -15.83 | 204.08 | 8.61 | 200.25 | 0.4177 | -149.0 | -302.8 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -16.03 | 203.90 | 8.42 | 199.69 | 0.4196 | -848.0 | -690.2 | |
| 0.00 | 2.77 | 0.00 | 1.54 | -18.05 | 203.86 | 8.38 | 198.04 | 0.4495 | -490.0 | -479.2 | |
| 13.68 | -52.00 | 7.51 | -52.00 | -16.98 | 203.65 | 8.18 | 198.41 | 0.4326 | -1253.2 | 999999 | |
| 0.00 | 12.43 | 0.00 | 6.72 | -14.91 | 203.57 | 8.09 | 199.92 | 0.4011 | 316.0 | -7.4 | |
| 5.10 | -52.00 | 2.80 | -52.00 | -17.25 | 203.63 | 8.16 | 198.16 | 0.4365 | -828.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.81 | 203.66 | 8.18 | 197.80 | 0.4450 | -411.0 | -414.9 | |
| 0.00 | 3.04 | 0.00 | 1.68 | -17.98 | 203.54 | 8.06 | 197.44 | 0.4469 | -762.0 | -571.2 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -17.58 | 203.49 | 8.01 | 197.62 | 0.4407 | -811.0 | -601.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.83 | 203.13 | 7.65 | 198.96 | 0.3976 | -614.0 | -565.9 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.20 | 203.09 | 7.61 | 197.05 | 0.4332 | -465.0 | -494.3 | |
| 1.61 | 24.58 | 0.87 | 13.31 | -15.52 | 202.99 | 7.51 | 198.10 | 0.4073 | 215.1 | -310.9 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -17.83 | 203.08 | 7.60 | 196.60 | 0.4427 | -254.0 | -198.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.64 | 203.00 | 7.52 | 197.27 | 0.4243 | -599.0 | -575.1 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.01 | 203.04 | 7.56 | 195.75 | 0.4601 | -435.0 | -401.0 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.47 | 202.88 | 7.41 | 195.79 | 0.4513 | -494.0 | -501.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.13 | 202.84 | 7.36 | 195.91 | 0.4461 | -634.0 | -523.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.58 | 202.84 | 7.36 | 195.01 | 0.4678 | -232.0 | -233.7 | |
| 0.00 | 2.50 | 0.00 | 1.33 | -13.17 | 202.57 | 7.09 | 199.09 | 0.3693 | -897.0 | -738.1 | |
| 0.00 | 5.99 | 0.00 | 3.27 | -16.40 | 202.64 | 7.17 | 196.67 | 0.4190 | -577.0 | -721.5 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.53 | 202.69 | 7.22 | 195.36 | 0.4515 | -660.0 | -541.2 | |
| 4.29 | -67.00 | 2.32 | -67.00 | -15.41 | 202.55 | 7.07 | 197.17 | 0.4035 | -967.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.19 | 202.52 | 7.04 | 195.21 | 0.4457 | -840.0 | -791.2 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.72 | 202.40 | 6.92 | 195.91 | 0.4229 | -705.0 | -620.9 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -16.29 | 202.32 | 6.84 | 196.03 | 0.4160 | -854.0 | -769.5 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -15.67 | 202.24 | 6.76 | 196.28 | 0.4061 | -976.0 | -796.2 | |
| 0.00 | 2.15 | 0.00 | 1.17 | -16.00 | 202.25 | 6.77 | 196.07 | 0.4111 | -880.0 | -727.1 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.23 | 202.16 | 6.68 | 195.72 | 0.4143 | -900.0 | -771.7 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.16 | 202.03 | 6.55 | 195.47 | 0.4127 | -568.0 | -540.8 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.65 | 201.92 | 6.44 | 194.91 | 0.4198 | -723.0 | -669.1 | |
| 4.56 | 140.18 | 2.46 | 75.57 | -15.53 | 201.67 | 6.19 | 195.06 | 0.4014 | -945.5 | -522.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.34 | 201.72 | 6.24 | 194.04 | 0.4296 | -636.0 | -594.7 | |
| 0.00 | 3.04 | 0.00 | 1.67 | -17.37 | 201.37 | 5.89 | 193.27 | 0.4288 | -949.0 | -656.8 | |
| 6.62 | 19.76 | 3.60 | 10.75 | -16.38 | 201.31 | 5.83 | 193.71 | 0.4132 | -909.9 | -823.9 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -19.25 | 201.34 | 5.86 | 192.22 | 0.4573 | -897.0 | -675.7 | |
| 31.11 | -86.00 | 16.79 | -86.00 | -15.45 | 201.19 | 5.71 | 193.99 | 0.3984 | -1285.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -20.99 | 201.34 | 5.86 | 191.41 | 0.4836 | -591.0 | -556.4 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.26 | 201.28 | 5.80 | 191.19 | 0.4875 | -591.0 | -547.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.81 | 201.01 | 5.53 | 190.46 | 0.4949 | -160.0 | -289.2 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.46 | 200.22 | 4.75 | 190.27 | 0.4419 | -584.0 | -587.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.11 | 197.87 | 2.39 | 185.08 | 0.4471 | -415.0 | -411.8 | |
| 0.80 | 1.88 | 0.45 | 1.06 | -21.01 | 197.05 | 1.57 | 183.10 | 0.4757 | 639.7 | 558.7 | |
| 0.00 | 3.58 | 0.00 | 1.99 | -19.82 | 196.82 | 1.34 | 182.77 | 0.4570 | -830.0 | -585.3 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.22 | 196.17 | 0.70 | 181.42 | 0.4629 | -390.0 | -233.3 | |
| 0.80 | 2.15 | 0.45 | 1.20 | -19.98 | 195.66 | 0.18 | 180.37 | 0.4591 | -690.1 | -540.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
