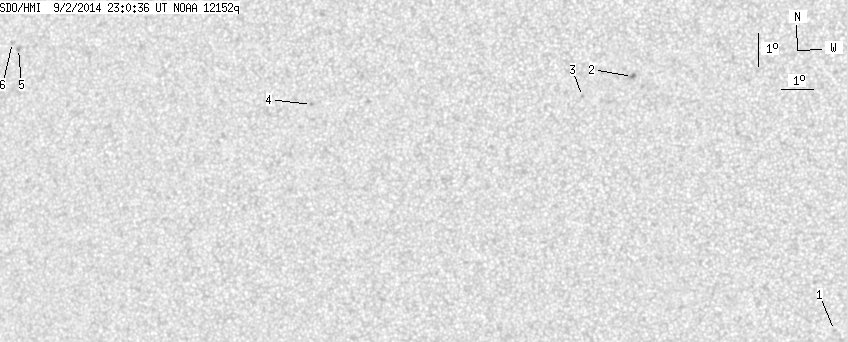

SDO HMI 2014-09-02 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.35 | 0.00 | 6.04 | 10.97 | 175.96 | -18.97 | 79.25 | 0.3286 | -46.2 | -2.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-02 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.58 | 4.22 | 192.21 | -2.71 | 137.91 | 0.0707 | -868.0 | -679.0 | |
| 0.00 | 2.77 | 0.00 | 1.39 | 11.83 | 185.90 | -9.03 | 61.94 | 0.1749 | -1202.0 | -950.6 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 11.20 | 184.35 | -10.57 | 68.37 | 0.1945 | -738.0 | -613.1 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 10.69 | 175.73 | -19.19 | 78.23 | 0.3314 | 962.0 | 727.7 | |
| 0.00 | 2.68 | 0.00 | 1.52 | 11.90 | 165.70 | -29.23 | 78.51 | 0.4895 | 874.0 | 625.8 | |
| 0.00 | 2.15 | 0.00 | 1.22 | 12.07 | 165.47 | -29.46 | 78.22 | 0.4933 | 695.0 | 512.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
