SDO HMI 2014-09-03 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.98 | 0.00 | 9.41 | 10.98 | 177.56 | -16.81 | 72.09 | 0.2951 | 205.1 | -45.3 | |
|
previous
or next observation for the same group /

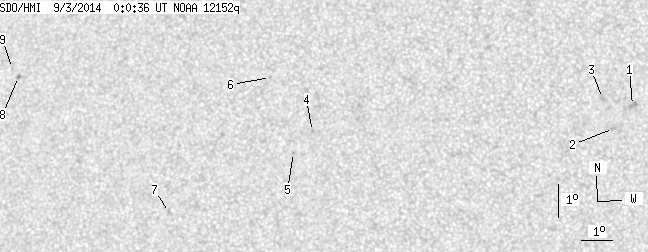

back to the solar disc SDO HMI 2014-09-03 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.65 | 0.00 | 2.34 | 11.79 | 185.85 | -8.53 | 60.89 | 0.1669 | -1080.0 | -841.7 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 11.08 | 185.28 | -9.10 | 66.12 | 0.1705 | -733.0 | -710.6 | |
| 0.00 | 2.24 | 0.00 | 1.13 | 11.98 | 184.90 | -9.47 | 62.29 | 0.1827 | -700.0 | -638.4 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 10.72 | 175.73 | -18.64 | 77.90 | 0.3226 | 961.0 | 763.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 10.06 | 175.16 | -19.22 | 80.15 | 0.3304 | 725.0 | 591.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 12.30 | 174.25 | -20.13 | 74.09 | 0.3511 | 711.0 | 603.0 | |
| 0.00 | 3.22 | 0.00 | 1.73 | 8.07 | 171.20 | -23.17 | 86.37 | 0.3921 | 564.0 | 494.9 | |
| 0.00 | 1.88 | 0.00 | 1.06 | 11.90 | 165.71 | -28.66 | 78.37 | 0.4811 | 820.0 | 689.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 12.13 | 165.47 | -28.90 | 77.96 | 0.4851 | 578.0 | 456.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
