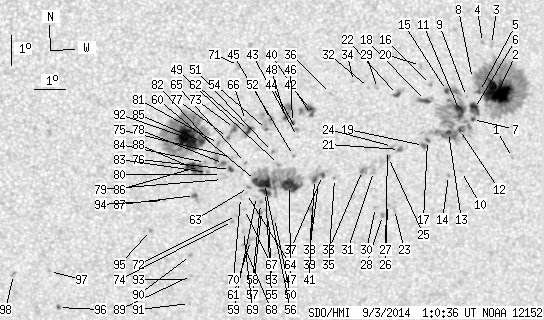

SDO HMI 2014-09-03 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.77 | 812.85 | 95.27 | 448.54 | -15.44 | 206.36 | 12.54 | 208.32 | 0.4424 | -99.6 | 24.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.39 | 211.70 | 17.87 | 216.72 | 0.4944 | 627.0 | 504.3 | |
| 41.41 | 209.17 | 23.10 | 116.69 | -14.23 | 211.02 | 17.19 | 218.48 | 0.4623 | 1232.2 | 409.0 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -12.67 | 210.71 | 16.88 | 220.22 | 0.4406 | 647.0 | 570.4 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -12.59 | 210.41 | 16.59 | 219.84 | 0.4368 | -624.0 | -430.4 | |
| 1.16 | -2.00 | 0.65 | -2.00 | -14.17 | 210.43 | 16.60 | 217.59 | 0.4560 | 895.9 | 999999 | |
| 7.33 | 127.61 | 4.09 | 71.09 | -14.72 | 210.31 | 16.48 | 216.65 | 0.4616 | 958.4 | 553.1 | |
| 1.16 | -6.00 | 0.65 | -6.00 | -15.08 | 210.27 | 16.44 | 216.11 | 0.4656 | 718.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -13.74 | 210.17 | 16.34 | 217.75 | 0.4483 | 291.0 | 252.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -14.32 | 210.01 | 16.19 | 216.70 | 0.4539 | 675.0 | 646.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.78 | 210.05 | 16.22 | 213.63 | 0.4849 | 567.0 | 452.1 | |
| 8.67 | -6.00 | 4.83 | -6.00 | -14.77 | 209.82 | 16.00 | 215.77 | 0.4577 | 972.5 | 999999 | |
| 1.43 | -6.00 | 0.80 | -6.00 | -15.39 | 209.87 | 16.04 | 215.04 | 0.4659 | 893.0 | 999999 | |
| 2.24 | -6.00 | 1.25 | -6.00 | -15.48 | 209.52 | 15.69 | 214.34 | 0.4639 | 915.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -16.90 | 209.63 | 15.81 | 212.81 | 0.4829 | 662.0 | 577.1 | |
| 1.79 | -6.00 | 0.99 | -6.00 | -14.10 | 209.35 | 15.53 | 215.85 | 0.4451 | 1011.0 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -13.89 | 208.82 | 14.99 | 215.19 | 0.4376 | 785.0 | 679.2 | |
| 0.89 | -6.00 | 0.50 | -6.00 | -15.72 | 208.85 | 15.02 | 212.90 | 0.4613 | 867.5 | 999999 | |
| 3.13 | 8.76 | 1.73 | 4.84 | -14.40 | 208.69 | 14.87 | 214.28 | 0.4430 | 617.8 | 555.2 | |
| 1.43 | 3.76 | 0.80 | 2.10 | -15.88 | 208.73 | 14.91 | 212.50 | 0.4624 | 784.4 | 615.1 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -13.26 | 208.46 | 14.63 | 215.39 | 0.4263 | 605.0 | 518.2 | |
| 0.80 | 3.40 | 0.45 | 1.89 | -15.98 | 207.96 | 14.13 | 211.02 | 0.4574 | 988.9 | 713.2 | |
| 1.79 | 5.37 | 0.98 | 2.94 | -14.18 | 207.77 | 13.95 | 212.89 | 0.4322 | 667.7 | 295.0 | |
| 0.00 | 2.15 | 0.00 | 1.21 | -17.97 | 207.95 | 14.12 | 208.80 | 0.4837 | 714.0 | 589.3 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -15.87 | 207.72 | 13.90 | 210.72 | 0.4542 | 264.0 | 454.8 | |
| 0.00 | 2.15 | 0.00 | 1.19 | -16.23 | 207.62 | 13.79 | 210.12 | 0.4581 | 758.0 | 536.8 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -17.79 | 207.70 | 13.88 | 208.57 | 0.4796 | 546.0 | 515.8 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.00 | 207.57 | 13.75 | 210.30 | 0.4546 | 209.0 | 268.6 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -18.16 | 207.57 | 13.74 | 207.96 | 0.4834 | 763.0 | 615.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -13.96 | 207.12 | 13.29 | 211.92 | 0.4238 | 639.0 | 561.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.88 | 207.32 | 13.49 | 207.81 | 0.4780 | 594.0 | 540.4 | |
| 0.00 | 3.13 | 0.00 | 1.75 | -16.68 | 207.16 | 13.34 | 208.80 | 0.4607 | -576.0 | -461.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -13.92 | 206.83 | 13.00 | 211.41 | 0.4208 | 690.0 | 623.1 | |
| 0.72 | 6.71 | 0.40 | 3.73 | -16.63 | 206.80 | 12.98 | 208.19 | 0.4574 | -935.8 | -640.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -13.71 | 206.34 | 12.51 | 210.70 | 0.4140 | 769.0 | 724.3 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.87 | 205.91 | 12.09 | 206.29 | 0.4544 | -627.0 | -477.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.08 | 205.62 | 11.80 | 208.80 | 0.4134 | -397.0 | -378.4 | |
| 1.43 | 11.36 | 0.79 | 6.29 | -16.76 | 205.52 | 11.69 | 205.66 | 0.4501 | -784.8 | -225.5 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -16.99 | 205.40 | 11.58 | 205.21 | 0.4526 | -452.0 | -524.5 | |
| 2.06 | -37.00 | 1.14 | -37.00 | -16.89 | 205.27 | 11.44 | 205.05 | 0.4502 | -455.9 | 999999 | |
| 0.98 | 10.73 | 0.54 | 5.84 | -14.75 | 205.05 | 11.23 | 206.86 | 0.4186 | 800.3 | 782.8 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -17.92 | 205.24 | 11.41 | 204.01 | 0.4645 | -776.0 | -699.1 | |
| 1.61 | -40.00 | 0.88 | -40.00 | -14.58 | 205.01 | 11.19 | 206.96 | 0.4160 | 1013.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.45 | 204.64 | 10.82 | 205.26 | 0.4258 | 181.0 | 293.5 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -15.22 | 204.60 | 10.77 | 205.41 | 0.4222 | 647.0 | 532.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.08 | 204.55 | 10.72 | 204.43 | 0.4340 | -540.0 | -565.9 | |
| 0.72 | 2.15 | 0.39 | 1.17 | -14.99 | 204.46 | 10.64 | 205.36 | 0.4179 | 676.0 | 515.6 | |
| 15.83 | 99.71 | 8.76 | 55.04 | -17.06 | 204.47 | 10.65 | 203.34 | 0.4477 | -964.2 | -529.8 | |
| 1.34 | 12.43 | 0.73 | 6.75 | -14.82 | 204.23 | 10.40 | 205.06 | 0.4140 | 697.5 | 757.1 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -16.36 | 204.08 | 10.26 | 203.22 | 0.4352 | -675.0 | -599.7 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.15 | 204.05 | 10.23 | 201.57 | 0.4608 | -240.0 | -397.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.93 | 203.87 | 10.04 | 203.19 | 0.4276 | -489.0 | -463.0 | |
| 0.54 | 14.58 | 0.29 | 7.92 | -14.87 | 203.75 | 9.93 | 203.99 | 0.4116 | 653.3 | 29.1 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.08 | 203.85 | 10.03 | 201.25 | 0.4586 | -697.0 | -529.5 | |
| 0.36 | -52.00 | 0.19 | -52.00 | -15.20 | 203.64 | 9.82 | 203.43 | 0.4156 | -359.8 | 999999 | |
| 4.56 | -47.00 | 2.52 | -47.00 | -17.28 | 203.71 | 9.89 | 201.65 | 0.4462 | -795.3 | 999999 | |
| 10.91 | -47.00 | 6.02 | -47.00 | -16.98 | 203.67 | 9.84 | 201.82 | 0.4416 | -1201.8 | 999999 | |
| 0.00 | 4.29 | 0.00 | 2.39 | -17.91 | 203.62 | 9.79 | 200.94 | 0.4548 | -469.0 | -553.3 | |
| 0.00 | 2.59 | 0.00 | 1.44 | -17.64 | 203.57 | 9.75 | 201.07 | 0.4507 | -778.0 | -550.9 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -17.40 | 203.43 | 9.61 | 200.99 | 0.4465 | -200.0 | -351.8 | |
| 2.95 | -47.00 | 1.62 | -47.00 | -16.87 | 203.37 | 9.55 | 201.32 | 0.4384 | -1101.4 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.05 | -18.87 | 203.32 | 9.49 | 199.59 | 0.4672 | -758.0 | -497.7 | |
| 3.31 | 10.46 | 1.80 | 5.68 | -15.22 | 203.07 | 9.25 | 202.18 | 0.4124 | 545.6 | 58.9 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -17.10 | 203.16 | 9.33 | 200.69 | 0.4405 | -852.0 | -706.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.30 | 203.10 | 9.28 | 200.42 | 0.4431 | -644.0 | -482.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.27 | 203.02 | 9.20 | 201.12 | 0.4276 | -424.0 | -564.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -14.89 | 202.96 | 9.14 | 202.26 | 0.4069 | -627.0 | -538.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.83 | 203.07 | 9.24 | 199.92 | 0.4507 | -498.0 | -424.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.00 | 203.10 | 9.27 | 199.08 | 0.4680 | -518.0 | -551.5 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -18.57 | 203.07 | 9.25 | 199.36 | 0.4615 | -812.0 | -564.5 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -17.43 | 202.92 | 9.09 | 199.94 | 0.4440 | -700.0 | -510.5 | |
| 0.00 | 2.86 | 0.00 | 1.53 | -13.10 | 202.67 | 8.85 | 203.41 | 0.3786 | -725.0 | -481.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.02 | 202.82 | 8.99 | 199.27 | 0.4523 | -587.0 | -575.4 | |
| 1.16 | 8.32 | 0.63 | 4.51 | -15.14 | 202.62 | 8.80 | 201.28 | 0.4086 | -997.6 | -761.2 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.22 | 202.70 | 8.88 | 198.89 | 0.4546 | -630.0 | -629.2 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.09 | 202.60 | 8.78 | 200.38 | 0.4226 | -554.0 | -446.4 | |
| 1.70 | 3.22 | 0.93 | 1.76 | -16.49 | 202.55 | 8.73 | 199.95 | 0.4282 | -867.5 | -688.2 | |
| 0.36 | -73.00 | 0.19 | -73.00 | -15.43 | 202.41 | 8.59 | 200.55 | 0.4118 | -924.8 | 999999 | |
| 0.98 | 10.37 | 0.54 | 5.66 | -16.29 | 202.32 | 8.50 | 199.63 | 0.4240 | -951.9 | -842.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.82 | 202.31 | 8.49 | 199.18 | 0.4318 | -116.0 | -143.0 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.65 | 202.27 | 8.45 | 199.23 | 0.4291 | -441.0 | -336.8 | |
| 0.00 | 2.33 | 0.00 | 1.26 | -15.62 | 202.14 | 8.31 | 199.78 | 0.4131 | -863.0 | -704.5 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.82 | 202.11 | 8.29 | 199.56 | 0.4159 | -825.0 | -734.5 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -16.57 | 201.82 | 8.00 | 198.34 | 0.4257 | -845.0 | -678.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.24 | 201.75 | 7.92 | 198.43 | 0.4204 | -804.0 | -562.3 | |
| 2.86 | 144.96 | 1.55 | 78.41 | -15.55 | 201.59 | 7.77 | 198.64 | 0.4091 | -974.3 | -516.3 | |
| 1.79 | 16.72 | 0.98 | 9.13 | -16.37 | 201.56 | 7.74 | 197.93 | 0.4214 | -1031.8 | -643.1 | |
| 1.25 | 5.28 | 0.69 | 2.90 | -17.33 | 201.44 | 7.62 | 196.97 | 0.4352 | -729.2 | -599.1 | |
| 9.93 | -86.00 | 5.42 | -86.00 | -16.43 | 201.37 | 7.55 | 197.47 | 0.4214 | -938.6 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.02 | 201.46 | 7.64 | 195.29 | 0.4755 | -339.0 | -378.2 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.34 | 201.40 | 7.57 | 195.57 | 0.4652 | -758.0 | -605.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.98 | 201.44 | 7.62 | 194.71 | 0.4896 | -646.0 | -558.0 | |
| 31.39 | -85.00 | 17.00 | -85.00 | -15.44 | 201.18 | 7.35 | 197.79 | 0.4055 | -1246.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -20.15 | 201.31 | 7.48 | 194.91 | 0.4769 | -412.0 | -422.8 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.48 | 200.49 | 6.66 | 194.86 | 0.4334 | -728.0 | -585.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.47 | 200.08 | 6.25 | 193.41 | 0.4470 | -812.0 | -702.3 | |
| 0.80 | 2.15 | 0.45 | 1.21 | -21.05 | 197.18 | 3.36 | 186.58 | 0.4787 | 752.1 | 547.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.82 | 196.87 | 3.04 | 186.27 | 0.4592 | -825.0 | -667.9 | |
| 0.00 | 2.68 | 0.00 | 1.49 | -19.91 | 195.71 | 1.88 | 183.88 | 0.4591 | -775.0 | -487.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
