SDO HMI 2014-09-03 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.93 | 78.77 | 21.06 | 53.62 | -17.90 | 158.12 | -35.70 | 125.94 | 0.6877 | 169.3 | -9.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

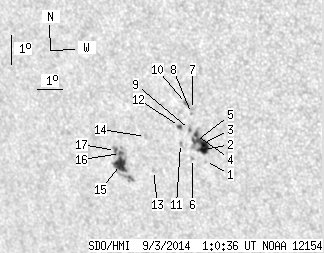

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.19 | 159.76 | -34.06 | 127.53 | 0.6733 | 217.0 | 355.5 | |
| 5.54 | 28.17 | 3.69 | 18.74 | -17.79 | 159.77 | -34.05 | 127.05 | 0.6703 | 854.5 | 463.5 | |
| 5.46 | -2.00 | 3.62 | -2.00 | -17.59 | 159.78 | -34.05 | 126.80 | 0.6688 | 942.6 | 999999 | |
| 2.59 | -2.00 | 1.72 | -2.00 | -17.34 | 159.60 | -34.22 | 126.35 | 0.6688 | 879.0 | 999999 | |
| 2.50 | -2.00 | 1.67 | -2.00 | -17.55 | 159.52 | -34.30 | 126.54 | 0.6711 | 801.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -18.13 | 159.27 | -34.55 | 127.07 | 0.6778 | 143.0 | 252.0 | |
| 0.00 | 1.97 | 0.00 | 1.30 | -16.48 | 159.63 | -34.19 | 125.28 | 0.6624 | 113.0 | 206.3 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -16.62 | 159.56 | -34.26 | 125.40 | 0.6641 | 352.0 | 391.8 | |
| 0.36 | 2.68 | 0.24 | 1.78 | -17.16 | 159.37 | -34.45 | 125.94 | 0.6699 | 403.0 | 478.3 | |
| 0.00 | 2.77 | 0.00 | 1.83 | -16.30 | 159.44 | -34.39 | 124.90 | 0.6632 | 678.0 | 517.5 | |
| 0.00 | 1.88 | 0.00 | 1.26 | -17.66 | 158.92 | -34.91 | 126.21 | 0.6781 | 399.0 | 338.4 | |
| 1.34 | 2.41 | 0.90 | 1.61 | -17.09 | 159.00 | -34.82 | 125.57 | 0.6733 | 459.0 | 442.0 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -18.66 | 157.62 | -36.20 | 126.46 | 0.6982 | 60.0 | 138.3 | |
| 0.00 | 1.97 | 0.00 | 1.34 | -17.53 | 157.58 | -36.25 | 125.05 | 0.6910 | 256.0 | 203.6 | |
| 11.00 | 32.37 | 7.72 | 22.69 | -18.56 | 156.33 | -37.50 | 125.42 | 0.7104 | -815.1 | -582.4 | |
| 1.16 | -15.00 | 0.81 | -15.00 | -18.18 | 156.42 | -37.40 | 125.03 | 0.7071 | -815.9 | 999999 | |
| 0.98 | -15.00 | 0.69 | -15.00 | -18.10 | 156.24 | -37.58 | 124.80 | 0.7083 | -728.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
