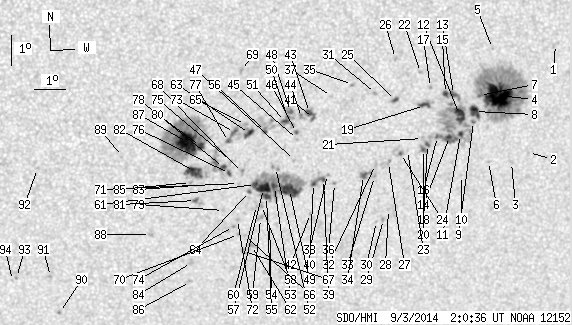

SDO HMI 2014-09-03 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.97 | 793.90 | 102.17 | 438.96 | -15.40 | 206.27 | 13.00 | 209.23 | 0.4453 | -41.8 | 4.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.04 | 0.00 | 1.70 | -12.62 | 212.80 | 19.53 | 224.45 | 0.4677 | 697.0 | 456.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -16.10 | 212.22 | 18.94 | 218.68 | 0.5010 | 528.0 | 420.4 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -16.41 | 211.68 | 18.41 | 217.49 | 0.4996 | 642.0 | 454.7 | |
| 40.07 | 205.44 | 22.43 | 114.99 | -14.19 | 211.06 | 17.78 | 219.48 | 0.4675 | 1241.8 | 414.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -12.66 | 210.74 | 17.47 | 221.20 | 0.4465 | 745.0 | 588.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -16.34 | 210.91 | 17.64 | 216.41 | 0.4918 | 382.0 | 485.0 | |
| 0.63 | -4.00 | 0.35 | -4.00 | -14.17 | 210.43 | 17.16 | 218.51 | 0.4612 | 1006.3 | 999999 | |
| 7.87 | 11.72 | 4.40 | 6.56 | -14.68 | 210.31 | 17.03 | 217.61 | 0.4662 | 978.2 | 581.8 | |
| 0.54 | 1.70 | 0.30 | 0.95 | -15.01 | 210.30 | 17.03 | 217.16 | 0.4701 | 837.0 | 655.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.77 | 210.06 | 16.78 | 214.54 | 0.4896 | 645.0 | 462.2 | |
| 2.15 | 99.55 | 1.20 | 55.61 | -15.42 | 209.91 | 16.63 | 215.99 | 0.4715 | 833.4 | 543.5 | |
| 10.55 | -11.00 | 5.89 | -11.00 | -14.76 | 209.82 | 16.55 | 216.71 | 0.4627 | 1006.4 | 999999 | |
| 2.50 | -11.00 | 1.39 | -11.00 | -14.10 | 209.58 | 16.30 | 217.19 | 0.4523 | 990.0 | 999999 | |
| 1.97 | -11.00 | 1.10 | -11.00 | -15.47 | 209.55 | 16.28 | 215.34 | 0.4690 | 996.9 | 999999 | |
| 2.06 | -11.00 | 1.14 | -11.00 | -14.06 | 209.32 | 16.04 | 216.80 | 0.4493 | 974.5 | 999999 | |
| 0.89 | -11.00 | 0.50 | -11.00 | -15.45 | 209.16 | 15.89 | 214.70 | 0.4653 | 776.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -13.84 | 208.82 | 15.54 | 216.23 | 0.4420 | 958.0 | 738.3 | |
| 1.34 | 11.54 | 0.75 | 6.45 | -15.70 | 208.85 | 15.58 | 213.87 | 0.4658 | 828.6 | 413.8 | |
| 3.31 | 7.96 | 1.83 | 4.41 | -14.42 | 208.66 | 15.39 | 215.17 | 0.4479 | 791.8 | 526.4 | |
| 1.34 | -18.00 | 0.75 | -18.00 | -15.86 | 208.74 | 15.46 | 213.47 | 0.4669 | 726.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -15.50 | 208.67 | 15.40 | 213.81 | 0.4617 | -369.0 | -150.7 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -13.35 | 208.46 | 15.18 | 216.28 | 0.4325 | 765.0 | 602.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -15.88 | 208.21 | 14.94 | 212.56 | 0.4627 | 737.0 | 615.4 | |
| 0.63 | 1.61 | 0.35 | 0.90 | -15.97 | 207.99 | 14.72 | 212.06 | 0.4620 | 936.1 | 788.5 | |
| 1.34 | 2.95 | 0.74 | 1.62 | -14.23 | 207.71 | 14.44 | 213.73 | 0.4370 | 774.8 | 465.2 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -12.87 | 207.63 | 14.35 | 215.42 | 0.4187 | -763.0 | -580.3 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -16.25 | 207.62 | 14.35 | 211.08 | 0.4627 | 671.0 | 519.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -17.81 | 207.75 | 14.47 | 209.56 | 0.4842 | 478.0 | 435.1 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -18.14 | 207.61 | 14.33 | 208.98 | 0.4876 | 737.0 | 548.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.20 | 207.38 | 14.11 | 208.54 | 0.4867 | 351.0 | 401.2 | |
| 0.00 | 2.06 | 0.00 | 1.13 | -13.98 | 207.05 | 13.78 | 212.83 | 0.4281 | 871.0 | 634.7 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -16.30 | 207.21 | 13.93 | 210.28 | 0.4601 | -267.0 | -286.5 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -16.70 | 207.20 | 13.93 | 209.83 | 0.4654 | -531.0 | -536.2 | |
| 2.33 | 6.17 | 1.30 | 3.44 | -16.66 | 206.84 | 13.57 | 209.23 | 0.4620 | -907.5 | -692.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -13.66 | 206.30 | 13.02 | 211.78 | 0.4175 | 783.0 | 627.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.89 | 205.92 | 12.64 | 207.30 | 0.4585 | -583.0 | -503.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.03 | 205.65 | 12.37 | 210.02 | 0.4172 | -696.0 | -483.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.59 | 205.67 | 12.39 | 207.16 | 0.4525 | -586.0 | -563.6 | |
| 1.07 | 8.68 | 0.60 | 4.82 | -16.75 | 205.55 | 12.28 | 206.77 | 0.4539 | -816.8 | -242.4 | |
| 1.52 | -39.00 | 0.84 | -39.00 | -16.87 | 205.24 | 11.96 | 206.05 | 0.4535 | -503.2 | 999999 | |
| 0.63 | 7.60 | 0.34 | 4.15 | -14.73 | 205.11 | 11.83 | 208.11 | 0.4228 | 800.0 | 780.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.87 | 205.20 | 11.93 | 205.02 | 0.4671 | -642.0 | -474.6 | |
| 3.22 | -41.00 | 1.76 | -41.00 | -14.53 | 204.97 | 11.70 | 208.06 | 0.4190 | 1047.3 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.90 | -14.69 | 204.72 | 11.45 | 207.37 | 0.4194 | 992.0 | 844.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -15.40 | 204.63 | 11.36 | 206.40 | 0.4288 | 210.0 | 315.0 | |
| 0.72 | 1.79 | 0.39 | 0.98 | -15.17 | 204.59 | 11.31 | 206.56 | 0.4252 | 636.5 | 487.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.09 | 204.58 | 11.30 | 205.57 | 0.4381 | -651.0 | -568.9 | |
| 1.25 | 16.90 | 0.68 | 9.20 | -14.48 | 204.36 | 11.09 | 206.86 | 0.4139 | 1082.3 | 706.1 | |
| 18.07 | 99.72 | 10.02 | 55.16 | -17.05 | 204.47 | 11.20 | 204.42 | 0.4509 | -930.7 | -521.6 | |
| 0.63 | -48.00 | 0.34 | -48.00 | -14.68 | 204.28 | 11.00 | 206.47 | 0.4160 | 893.4 | 999999 | |
| 2.24 | -48.00 | 1.22 | -48.00 | -14.80 | 204.22 | 10.94 | 206.21 | 0.4174 | 659.2 | 999999 | |
| 0.00 | 3.40 | 0.00 | 1.87 | -16.31 | 203.98 | 10.70 | 204.17 | 0.4372 | -333.0 | -560.6 | |
| 3.13 | -49.00 | 1.73 | -49.00 | -16.94 | 203.98 | 10.71 | 203.58 | 0.4462 | -1036.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -18.10 | 203.89 | 10.61 | 202.35 | 0.4622 | -563.0 | -562.4 | |
| 3.22 | -49.00 | 1.78 | -49.00 | -17.26 | 203.74 | 10.47 | 202.81 | 0.4494 | -879.6 | 999999 | |
| 0.80 | 14.76 | 0.44 | 8.03 | -15.11 | 203.60 | 10.32 | 204.58 | 0.4176 | -458.3 | 73.8 | |
| 9.30 | -49.00 | 5.14 | -49.00 | -16.99 | 203.63 | 10.36 | 202.83 | 0.4449 | -1192.9 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -17.56 | 203.60 | 10.32 | 202.27 | 0.4528 | -642.0 | -494.1 | |
| 0.00 | 3.13 | 0.00 | 1.74 | -17.99 | 203.59 | 10.32 | 201.88 | 0.4590 | -657.0 | -565.2 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -17.55 | 203.44 | 10.16 | 201.95 | 0.4518 | -511.0 | -530.2 | |
| 3.31 | -49.00 | 1.83 | -49.00 | -16.85 | 203.37 | 10.09 | 202.43 | 0.4413 | -1129.4 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.45 | -18.89 | 203.35 | 10.08 | 200.69 | 0.4706 | -825.0 | -549.8 | |
| 3.85 | 7.16 | 2.09 | 3.89 | -15.17 | 203.09 | 9.82 | 203.46 | 0.4151 | 529.4 | 174.3 | |
| 0.72 | 1.70 | 0.40 | 0.94 | -17.08 | 203.19 | 9.91 | 201.87 | 0.4435 | -851.1 | -727.5 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -14.87 | 202.95 | 9.68 | 203.45 | 0.4099 | -593.0 | -520.3 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.55 | 203.11 | 9.83 | 200.49 | 0.4643 | -576.0 | -444.8 | |
| 0.00 | 3.13 | 0.00 | 1.76 | -19.09 | 203.10 | 9.83 | 200.07 | 0.4721 | -750.0 | -524.8 | |
| 0.00 | 2.68 | 0.00 | 1.47 | -16.45 | 202.93 | 9.65 | 201.91 | 0.4328 | -908.0 | -692.2 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -13.11 | 202.75 | 9.48 | 204.87 | 0.3830 | -932.0 | -573.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.51 | 202.91 | 9.63 | 200.14 | 0.4627 | -596.0 | -451.7 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.81 | 202.82 | 9.54 | 201.37 | 0.4374 | -573.0 | -544.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.01 | 202.85 | 9.57 | 200.43 | 0.4550 | -641.0 | -514.5 | |
| 1.70 | 11.72 | 0.92 | 6.37 | -15.12 | 202.61 | 9.34 | 202.47 | 0.4115 | -925.7 | -589.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.24 | 202.73 | 9.46 | 200.02 | 0.4578 | -607.0 | -588.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -16.07 | 202.56 | 9.28 | 201.48 | 0.4252 | -597.0 | -440.7 | |
| 1.16 | 21.64 | 0.64 | 11.83 | -16.47 | 202.51 | 9.24 | 201.04 | 0.4307 | -884.6 | -728.2 | |
| 1.07 | -73.00 | 0.58 | -73.00 | -15.41 | 202.43 | 9.16 | 201.81 | 0.4148 | -809.2 | 999999 | |
| 2.41 | -76.00 | 1.32 | -76.00 | -16.27 | 202.31 | 9.04 | 200.79 | 0.4266 | -879.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.69 | 202.38 | 9.11 | 199.75 | 0.4480 | -721.0 | -563.3 | |
| 4.02 | 143.28 | 2.19 | 77.59 | -15.56 | 201.55 | 8.28 | 199.76 | 0.4120 | -942.7 | -527.2 | |
| 0.98 | 4.92 | 0.54 | 2.71 | -17.34 | 201.47 | 8.19 | 198.16 | 0.4382 | -785.6 | -565.6 | |
| 11.63 | 20.03 | 6.35 | 10.95 | -16.38 | 201.39 | 8.12 | 198.74 | 0.4234 | -938.9 | -644.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.84 | 201.41 | 8.14 | 198.43 | 0.4304 | -213.0 | -435.1 | |
| 0.00 | 3.13 | 0.00 | 1.75 | -19.42 | 201.44 | 8.16 | 196.66 | 0.4689 | -814.0 | -590.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.74 | 201.28 | 8.01 | 198.22 | 0.4283 | -374.0 | -475.8 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -20.07 | 201.44 | 8.16 | 196.25 | 0.4784 | -731.0 | -522.4 | |
| 28.80 | -80.00 | 15.61 | -80.00 | -15.42 | 201.13 | 7.86 | 198.95 | 0.4077 | -1279.8 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -18.45 | 200.07 | 6.79 | 194.55 | 0.4487 | -452.0 | -604.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.84 | 199.09 | 5.82 | 193.99 | 0.4050 | -516.0 | -453.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.06 | 197.22 | 3.94 | 187.71 | 0.4799 | 917.0 | 752.7 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -19.83 | 196.90 | 3.62 | 187.45 | 0.4604 | -782.0 | -606.1 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.21 | 196.42 | 3.14 | 187.54 | 0.4027 | -6.0 | -52.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.85 | 195.80 | 2.53 | 185.21 | 0.4589 | -559.0 | -588.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.95 | 195.67 | 2.40 | 184.92 | 0.4603 | -524.0 | -455.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
