SDO HMI 2014-09-03 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.65 | 76.04 | 18.68 | 51.08 | -17.96 | 158.15 | -34.58 | 126.87 | 0.6767 | 107.8 | 122.4 | |
|
previous
or next observation for the same group /

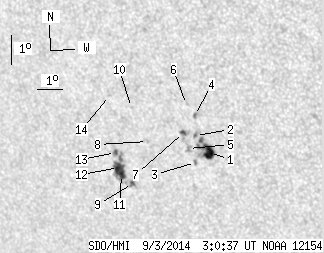

back to the solar disc SDO HMI 2014-09-03 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.30 | 24.06 | 6.10 | 15.79 | -17.74 | 159.94 | -32.79 | 128.00 | 0.6568 | 932.0 | 558.2 | |
| 0.54 | 2.24 | 0.35 | 1.47 | -17.20 | 159.52 | -33.21 | 126.98 | 0.6572 | 716.2 | 550.7 | |
| 0.36 | 1.97 | 0.24 | 1.30 | -18.11 | 159.33 | -33.40 | 127.97 | 0.6659 | 523.0 | 326.4 | |
| 0.45 | 2.06 | 0.29 | 1.34 | -16.54 | 159.62 | -33.11 | 126.21 | 0.6513 | 742.8 | 612.2 | |
| 0.00 | 4.47 | 0.00 | 2.96 | -17.66 | 159.16 | -33.57 | 127.26 | 0.6643 | 581.0 | 440.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -16.19 | 159.38 | -33.34 | 125.58 | 0.6513 | 589.0 | 537.4 | |
| 1.79 | 6.98 | 1.18 | 4.60 | -17.14 | 159.08 | -33.65 | 126.54 | 0.6613 | 644.2 | 442.5 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -17.54 | 157.60 | -35.12 | 125.90 | 0.6795 | 524.0 | 417.7 | |
| 1.43 | 3.76 | 0.99 | 2.60 | -19.01 | 156.66 | -36.06 | 127.00 | 0.6992 | -796.1 | -684.7 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -16.45 | 157.22 | -35.50 | 124.25 | 0.6761 | -320.0 | -273.3 | |
| 5.46 | 27.28 | 3.78 | 18.86 | -18.74 | 156.30 | -36.43 | 126.40 | 0.7010 | -801.0 | -583.8 | |
| 7.07 | -11.00 | 4.89 | -11.00 | -18.51 | 156.23 | -36.49 | 126.08 | 0.7001 | -734.8 | 999999 | |
| 1.25 | -11.00 | 0.86 | -11.00 | -18.01 | 156.24 | -36.49 | 125.47 | 0.6967 | -771.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -16.12 | 156.44 | -36.29 | 123.25 | 0.6822 | 556.0 | 468.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
