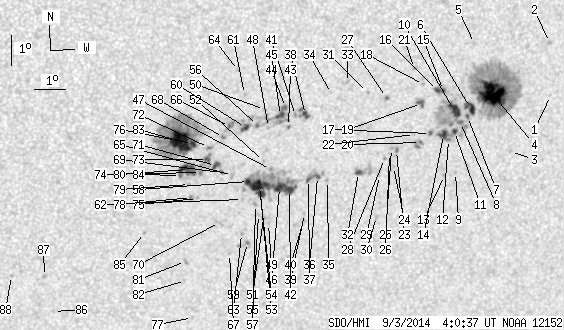

SDO HMI 2014-09-03 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.35 | 797.73 | 103.51 | 443.21 | -15.40 | 206.39 | 14.21 | 211.42 | 0.4546 | -66.9 | 5.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.15 | -14.37 | 213.02 | 20.84 | 223.75 | 0.5004 | -670.0 | -549.3 | |
| 0.00 | 2.24 | 0.00 | 1.26 | -12.65 | 212.83 | 20.65 | 226.03 | 0.4802 | 828.0 | 617.4 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -16.14 | 211.86 | 19.68 | 219.71 | 0.5084 | 481.0 | 376.0 | |
| 43.75 | 332.07 | 24.66 | 186.96 | -14.21 | 211.08 | 18.90 | 221.18 | 0.4789 | 1255.2 | 428.0 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -12.57 | 210.36 | 18.18 | 222.49 | 0.4528 | -572.0 | -437.6 | |
| 7.78 | -4.00 | 4.38 | -4.00 | -14.64 | 210.39 | 18.21 | 219.54 | 0.4770 | 954.2 | 999999 | |
| 0.81 | -4.00 | 0.45 | -4.00 | -14.93 | 210.32 | 18.14 | 219.03 | 0.4796 | 730.8 | 999999 | |
| 1.16 | -4.00 | 0.66 | -4.00 | -15.11 | 210.10 | 17.93 | 218.45 | 0.4798 | 926.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.76 | 210.09 | 17.91 | 216.32 | 0.4992 | 638.0 | 520.1 | |
| 9.66 | -4.00 | 5.43 | -4.00 | -14.71 | 209.87 | 17.69 | 218.63 | 0.4728 | 1052.7 | 999999 | |
| 2.15 | -4.00 | 1.21 | -4.00 | -15.40 | 209.93 | 17.75 | 217.80 | 0.4816 | 846.1 | 999999 | |
| 0.27 | -4.00 | 0.15 | -4.00 | -15.66 | 209.76 | 17.58 | 217.19 | 0.4830 | 533.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.84 | 209.73 | 17.55 | 215.67 | 0.4971 | 551.0 | 512.5 | |
| 5.19 | -4.00 | 2.93 | -4.00 | -15.48 | 209.58 | 17.40 | 217.13 | 0.4793 | 963.5 | 999999 | |
| 1.43 | 7.43 | 0.80 | 4.14 | -14.05 | 209.46 | 17.28 | 218.89 | 0.4609 | 1040.3 | 687.1 | |
| 2.24 | -15.00 | 1.25 | -15.00 | -14.04 | 209.26 | 17.08 | 218.58 | 0.4589 | 1005.0 | 999999 | |
| 0.98 | -4.00 | 0.55 | -4.00 | -15.43 | 209.14 | 16.97 | 216.51 | 0.4747 | 692.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -13.82 | 208.79 | 16.61 | 218.09 | 0.4518 | 902.0 | 666.4 | |
| 2.86 | 6.62 | 1.59 | 3.69 | -14.44 | 208.77 | 16.59 | 217.21 | 0.4591 | 896.6 | 536.8 | |
| 0.45 | 6.44 | 0.25 | 3.62 | -15.72 | 208.84 | 16.66 | 215.65 | 0.4754 | 817.6 | 677.4 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -13.29 | 208.46 | 16.28 | 218.29 | 0.4422 | 827.0 | 635.3 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -15.45 | 208.62 | 16.44 | 215.64 | 0.4701 | -125.0 | -148.2 | |
| 0.00 | 2.15 | 0.00 | 1.20 | -15.95 | 208.07 | 15.89 | 214.10 | 0.4716 | 944.0 | 767.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.48 | 208.02 | 15.84 | 213.37 | 0.4778 | 517.0 | 396.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -15.88 | 207.90 | 15.73 | 213.90 | 0.4693 | 608.0 | 607.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -16.04 | 207.85 | 15.67 | 213.62 | 0.4709 | 430.0 | 459.9 | |
| 0.36 | 1.43 | 0.20 | 0.79 | -14.20 | 207.62 | 15.44 | 215.56 | 0.4456 | 898.5 | 791.9 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.20 | 207.70 | 15.52 | 213.17 | 0.4716 | 634.0 | 598.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.76 | 207.58 | 15.40 | 212.31 | 0.4778 | 385.0 | 389.5 | |
| 0.00 | 2.59 | 0.00 | 1.48 | -18.12 | 207.60 | 15.42 | 210.81 | 0.4954 | 329.0 | 327.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -14.02 | 206.99 | 14.81 | 214.69 | 0.4376 | 788.0 | 633.1 | |
| 2.59 | 13.15 | 1.45 | 7.38 | -16.63 | 206.88 | 14.71 | 211.27 | 0.4705 | -891.2 | -465.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -13.67 | 206.32 | 14.15 | 213.93 | 0.4272 | 822.0 | 701.8 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -14.01 | 205.83 | 13.65 | 212.55 | 0.4274 | -551.0 | -454.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -16.86 | 205.89 | 13.71 | 209.27 | 0.4659 | -638.0 | -500.5 | |
| 1.61 | 12.26 | 0.90 | 6.83 | -16.72 | 205.56 | 13.38 | 208.83 | 0.4615 | -638.3 | -273.9 | |
| 1.34 | -36.00 | 0.75 | -36.00 | -16.81 | 205.27 | 13.09 | 208.21 | 0.4606 | -654.9 | 999999 | |
| 2.86 | 8.32 | 1.57 | 4.56 | -14.67 | 205.04 | 12.86 | 210.20 | 0.4297 | 960.0 | 841.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.94 | 205.22 | 13.04 | 206.96 | 0.4756 | -773.0 | -593.6 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -18.17 | 205.21 | 13.03 | 206.70 | 0.4786 | -557.0 | -410.9 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -14.69 | 204.72 | 12.54 | 209.55 | 0.4276 | 868.0 | 782.2 | |
| 5.99 | 95.81 | 3.34 | 53.20 | -17.12 | 204.67 | 12.50 | 206.80 | 0.4606 | -808.2 | -491.2 | |
| 0.36 | 1.34 | 0.20 | 0.74 | -15.04 | 204.51 | 12.33 | 208.74 | 0.4308 | 485.5 | 493.0 | |
| 0.98 | 30.15 | 0.54 | 16.47 | -14.42 | 204.38 | 12.20 | 209.21 | 0.4213 | 1084.2 | 352.2 | |
| 3.67 | -44.00 | 2.00 | -44.00 | -14.68 | 204.24 | 12.06 | 208.62 | 0.4237 | 931.0 | 999999 | |
| 9.57 | -42.00 | 5.33 | -42.00 | -17.05 | 204.35 | 12.17 | 206.26 | 0.4573 | -1022.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.44 | 204.02 | 11.84 | 206.26 | 0.4466 | -738.0 | -579.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -15.06 | 203.87 | 11.69 | 207.46 | 0.4263 | 205.0 | 323.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.24 | 204.07 | 11.89 | 204.60 | 0.4720 | -389.0 | -376.0 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -14.47 | 203.71 | 11.54 | 207.81 | 0.4169 | -585.0 | -384.8 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -18.03 | 203.89 | 11.71 | 204.47 | 0.4680 | -694.0 | -536.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.17 | 203.78 | 11.60 | 206.07 | 0.4412 | -720.0 | -539.3 | |
| 4.65 | -42.00 | 2.59 | -42.00 | -17.23 | 203.74 | 11.57 | 204.95 | 0.4558 | -879.6 | 999999 | |
| 16.28 | -42.00 | 9.03 | -42.00 | -16.96 | 203.69 | 11.52 | 205.12 | 0.4517 | -1162.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.93 | 203.72 | 11.55 | 204.25 | 0.4655 | -564.0 | -592.0 | |
| 0.72 | -44.00 | 0.39 | -44.00 | -14.98 | 203.52 | 11.34 | 206.82 | 0.4227 | -348.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -17.59 | 203.60 | 11.43 | 204.34 | 0.4600 | -771.0 | -615.8 | |
| 3.22 | -42.00 | 1.78 | -42.00 | -16.82 | 203.33 | 11.15 | 204.56 | 0.4474 | -1070.2 | 999999 | |
| 0.45 | 4.47 | 0.25 | 2.52 | -18.86 | 203.43 | 11.25 | 202.88 | 0.4767 | -724.2 | -529.9 | |
| 3.40 | 12.52 | 1.85 | 6.83 | -15.04 | 203.14 | 10.96 | 205.98 | 0.4208 | 716.6 | -110.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -13.96 | 203.05 | 10.87 | 207.00 | 0.4049 | -767.0 | -682.8 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -17.41 | 203.17 | 10.99 | 203.69 | 0.4548 | -702.0 | -627.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.55 | 203.21 | 11.03 | 202.75 | 0.4711 | -696.0 | -577.0 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -13.18 | 202.83 | 10.65 | 207.44 | 0.3921 | -831.0 | -704.8 | |
| 0.00 | 3.31 | 0.00 | 1.83 | -16.61 | 202.80 | 10.63 | 203.73 | 0.4410 | -759.0 | -574.8 | |
| 0.81 | 6.17 | 0.44 | 3.36 | -14.99 | 202.62 | 10.45 | 204.97 | 0.4167 | -954.6 | -733.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -19.21 | 202.86 | 10.69 | 201.56 | 0.4785 | -350.0 | -470.3 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -15.35 | 202.45 | 10.27 | 204.24 | 0.4206 | -924.0 | -830.7 | |
| 0.63 | 7.78 | 0.34 | 4.28 | -16.50 | 202.44 | 10.27 | 203.11 | 0.4372 | -795.7 | -662.2 | |
| 0.00 | 3.40 | 0.00 | 1.90 | -18.16 | 202.47 | 10.30 | 201.70 | 0.4613 | -559.0 | -559.5 | |
| 2.68 | -69.00 | 1.47 | -69.00 | -16.26 | 202.24 | 10.06 | 202.92 | 0.4325 | -848.0 | 999999 | |
| 0.36 | 2.77 | 0.20 | 1.51 | -15.66 | 201.99 | 9.81 | 202.96 | 0.4223 | -810.2 | -672.0 | |
| 2.06 | 9.75 | 1.13 | 5.34 | -16.06 | 201.97 | 9.80 | 202.56 | 0.4280 | -1022.0 | -840.4 | |
| 0.00 | 2.68 | 0.00 | 1.47 | -16.48 | 201.77 | 9.59 | 201.76 | 0.4329 | -850.0 | -697.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.34 | 201.72 | 9.54 | 200.91 | 0.4452 | -785.0 | -575.9 | |
| 2.95 | 149.22 | 1.61 | 81.02 | -15.52 | 201.47 | 9.29 | 202.00 | 0.4171 | -940.8 | -535.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.37 | 201.79 | 9.61 | 198.06 | 0.5038 | -356.0 | -272.1 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -17.30 | 201.52 | 9.35 | 200.55 | 0.4436 | -939.0 | -712.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.87 | 201.44 | 9.26 | 200.74 | 0.4367 | -608.0 | -421.4 | |
| 11.63 | 19.41 | 6.37 | 10.64 | -16.37 | 201.35 | 9.17 | 200.98 | 0.4289 | -979.4 | -661.8 | |
| 0.00 | 2.42 | 0.00 | 1.36 | -19.45 | 201.45 | 9.27 | 198.75 | 0.4744 | -854.0 | -661.3 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.10 | 201.48 | 9.30 | 198.36 | 0.4840 | -543.0 | -452.0 | |
| 27.73 | -76.00 | 15.08 | -76.00 | -15.45 | 201.09 | 8.91 | 201.24 | 0.4137 | -1294.9 | 999999 | |
| 0.72 | -80.00 | 0.39 | -80.00 | -16.57 | 201.14 | 8.96 | 200.37 | 0.4306 | -728.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.44 | 200.07 | 7.89 | 196.77 | 0.4531 | -769.0 | -664.2 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.08 | 197.23 | 5.05 | 189.83 | 0.4828 | 633.0 | 493.8 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -19.88 | 196.90 | 4.72 | 189.65 | 0.4637 | -711.0 | -601.2 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.83 | 195.83 | 3.66 | 187.51 | 0.4605 | -199.0 | -296.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
