SDO HMI 2014-09-03 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.51 | 0.00 | 6.34 | 9.07 | 183.14 | -8.49 | 79.48 | 0.1572 | -589.9 | -595.1 | |
|
previous
or next observation for the same group /

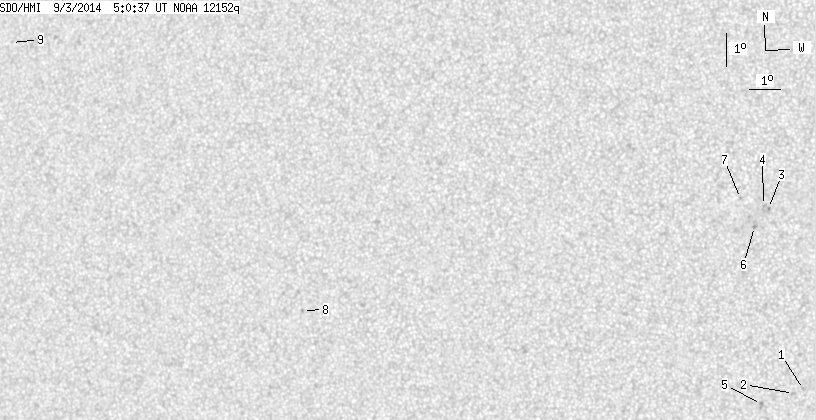

back to the solar disc SDO HMI 2014-09-03 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.58 | 6.18 | 187.02 | -4.61 | 102.62 | 0.0823 | -910.0 | -749.8 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 6.05 | 186.71 | -4.92 | 103.21 | 0.0879 | -831.0 | -656.0 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 11.64 | 185.87 | -5.76 | 51.69 | 0.1258 | -1095.0 | -831.0 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.73 | 185.71 | -5.92 | 51.86 | 0.1289 | -801.0 | -737.9 | |
| 0.00 | 2.95 | 0.00 | 1.47 | 5.71 | 185.74 | -5.89 | 104.17 | 0.1058 | -1071.0 | -835.6 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 11.09 | 185.45 | -6.18 | 57.18 | 0.1263 | -1072.0 | -856.9 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.94 | 184.99 | -6.64 | 53.73 | 0.1409 | -818.0 | -669.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 8.16 | 171.27 | -20.36 | 85.99 | 0.3467 | 772.0 | 675.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 15.76 | 160.47 | -31.16 | 71.58 | 0.5269 | 517.0 | 357.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
