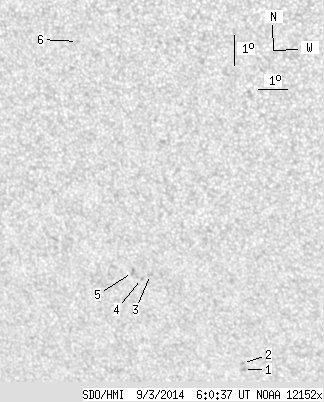

SDO HMI 2014-09-03 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.38 | 0.00 | 6.29 | -19.74 | 168.28 | -22.80 | 140.46 | 0.5785 | 623.7 | 528.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.31 | -22.38 | 170.42 | -20.66 | 146.16 | 0.5880 | 615.0 | 542.4 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -22.17 | 170.42 | -20.66 | 145.94 | 0.5856 | 677.0 | 481.5 | |
| 0.00 | 2.33 | 0.00 | 1.41 | -19.27 | 167.66 | -23.42 | 139.30 | 0.5776 | 467.0 | 454.1 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -19.42 | 167.32 | -23.76 | 139.08 | 0.5824 | 624.0 | 595.8 | |
| 0.00 | 2.68 | 0.00 | 1.63 | -19.23 | 167.03 | -24.05 | 138.52 | 0.5831 | 688.0 | 583.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.72 | 166.10 | -24.99 | 127.13 | 0.5208 | 671.0 | 512.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
