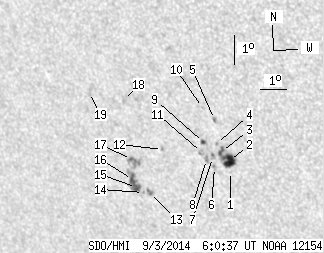

SDO HMI 2014-09-03 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.49 | 79.80 | 16.76 | 52.56 | -17.84 | 158.00 | -33.09 | 127.92 | 0.6606 | 280.6 | 50.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.23 | -18.12 | 160.05 | -31.03 | 129.99 | 0.6417 | 320.0 | 340.5 | |
| 10.74 | 22.46 | 6.89 | 14.43 | -17.75 | 160.09 | -31.00 | 129.55 | 0.6384 | 930.7 | 647.9 | |
| 2.51 | -2.00 | 1.61 | -2.00 | -17.47 | 159.84 | -31.24 | 128.98 | 0.6386 | 802.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -17.21 | 159.71 | -31.37 | 128.54 | 0.6380 | 713.0 | 614.1 | |
| 0.00 | 2.15 | 0.00 | 1.37 | -16.41 | 159.78 | -31.30 | 127.57 | 0.6310 | 797.0 | 666.9 | |
| 0.00 | 1.79 | 0.00 | 1.16 | -18.02 | 159.47 | -31.61 | 129.36 | 0.6469 | 580.0 | 387.2 | |
| 0.00 | 2.59 | 0.00 | 1.68 | -17.69 | 159.46 | -31.62 | 128.93 | 0.6443 | 771.0 | 521.2 | |
| 0.00 | 3.31 | 0.00 | 2.15 | -17.77 | 159.22 | -31.86 | 128.83 | 0.6475 | 593.0 | 415.6 | |
| 1.43 | 2.68 | 0.92 | 1.73 | -17.21 | 159.22 | -31.86 | 128.12 | 0.6431 | 636.6 | 538.7 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -16.05 | 159.40 | -31.68 | 126.76 | 0.6322 | 472.0 | 407.2 | |
| 0.00 | 2.59 | 0.00 | 1.68 | -17.55 | 159.08 | -32.00 | 128.43 | 0.6472 | 478.0 | 470.4 | |
| 0.00 | 1.61 | 0.00 | 1.06 | -17.56 | 157.61 | -33.48 | 127.21 | 0.6626 | 422.0 | 375.2 | |
| 1.25 | 3.94 | 0.85 | 2.66 | -19.05 | 156.77 | -34.31 | 128.38 | 0.6820 | -824.6 | -684.3 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -19.07 | 156.53 | -34.55 | 128.21 | 0.6845 | -591.0 | -542.5 | |
| 4.38 | 16.55 | 2.98 | 11.23 | -18.92 | 156.29 | -34.79 | 127.85 | 0.6858 | -707.2 | -503.0 | |
| 4.29 | -15.00 | 2.91 | -15.00 | -18.66 | 156.20 | -34.88 | 127.46 | 0.6849 | -774.5 | 999999 | |
| 0.89 | 10.74 | 0.60 | 7.22 | -17.98 | 156.32 | -34.76 | 126.72 | 0.6789 | -753.9 | -723.6 | |
| 0.00 | 2.68 | 0.00 | 1.77 | -16.03 | 156.43 | -34.65 | 124.34 | 0.6641 | 605.0 | 475.1 | |
| 0.00 | 3.40 | 0.00 | 2.28 | -15.86 | 155.15 | -35.93 | 123.18 | 0.6767 | 133.0 | 229.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
