SDO HMI 2014-09-03 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.44 | 0.00 | 8.23 | 9.08 | 183.31 | -5.58 | 80.19 | 0.1130 | -497.8 | -482.8 | |
|
previous
or next observation for the same group /

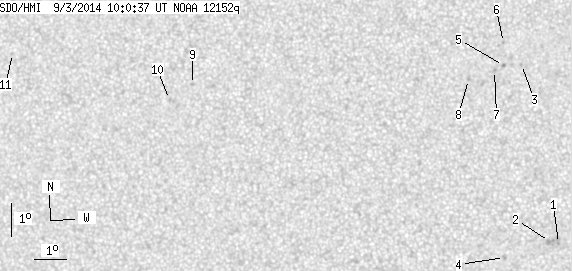

back to the solar disc SDO HMI 2014-09-03 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.49 | 6.11 | 187.39 | -1.50 | 126.44 | 0.0324 | -1018.0 | -809.7 | |
| 0.00 | 3.58 | 0.00 | 1.77 | 6.17 | 187.12 | -1.77 | 120.53 | 0.0358 | -973.0 | -827.0 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.52 | 186.24 | -2.66 | 31.08 | 0.0883 | -878.0 | -739.7 | |
| 0.00 | 2.24 | 0.00 | 1.11 | 5.68 | 185.75 | -3.14 | 115.97 | 0.0609 | -979.0 | -744.2 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 11.49 | 185.68 | -3.21 | 36.28 | 0.0932 | -992.0 | -808.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 12.19 | 185.67 | -3.22 | 32.27 | 0.1033 | -863.0 | -696.2 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.34 | 185.40 | -3.49 | 39.58 | 0.0940 | -1009.0 | -824.2 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 11.06 | 184.60 | -4.29 | 47.42 | 0.1001 | -865.0 | -697.4 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 10.76 | 176.01 | -12.88 | 73.48 | 0.2295 | 821.0 | 596.7 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 10.29 | 175.30 | -13.59 | 76.14 | 0.2392 | 680.0 | 467.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 11.51 | 170.20 | -18.69 | 75.46 | 0.3259 | 600.0 | 353.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
