SDO HMI 2014-09-03 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 173.34 | 776.79 | 97.94 | 439.80 | -15.28 | 206.26 | 17.92 | 217.77 | 0.4852 | -86.4 | 15.6 | |
|
previous
or next observation for the same group /

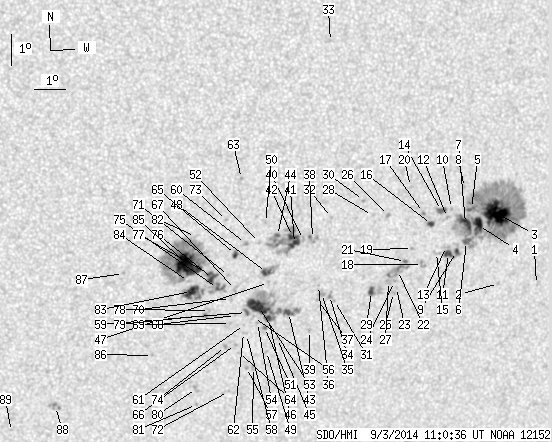

back to the solar disc SDO HMI 2014-09-03 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.59 | -16.58 | 212.74 | 24.40 | 225.23 | 0.5598 | 537.0 | 475.1 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -16.48 | 211.42 | 23.08 | 223.78 | 0.5453 | 780.0 | 575.0 | |
| 35.69 | 299.08 | 20.64 | 172.81 | -14.17 | 211.08 | 22.74 | 226.54 | 0.5184 | 1218.5 | 415.8 | |
| 11.45 | -3.00 | 6.61 | -3.00 | -14.53 | 210.51 | 22.17 | 225.30 | 0.5160 | 1008.7 | 999999 | |
| 1.88 | -3.00 | 1.08 | -3.00 | -13.97 | 210.22 | 21.88 | 225.73 | 0.5070 | 1057.5 | 999999 | |
| 2.95 | -3.00 | 1.71 | -3.00 | -15.04 | 210.16 | 21.82 | 224.14 | 0.5175 | 806.1 | 999999 | |
| 8.05 | -3.00 | 4.63 | -3.00 | -14.45 | 210.07 | 21.72 | 224.84 | 0.5103 | 1087.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.27 | 209.92 | 21.58 | 226.35 | 0.4966 | 876.0 | 620.9 | |
| 1.79 | 12.97 | 1.03 | 7.49 | -15.35 | 209.86 | 21.51 | 223.31 | 0.5177 | 799.8 | 618.0 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.93 | 209.54 | 21.20 | 224.88 | 0.4995 | 820.0 | 701.6 | |
| 4.29 | -9.00 | 2.48 | -9.00 | -15.40 | 209.59 | 21.25 | 222.88 | 0.5155 | 915.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -14.22 | 209.44 | 21.10 | 224.32 | 0.5014 | 940.0 | 659.2 | |
| 0.00 | 2.24 | 0.00 | 1.29 | -15.17 | 209.50 | 21.16 | 223.08 | 0.5121 | 379.0 | 479.4 | |
| 2.50 | 5.28 | 1.43 | 3.01 | -13.98 | 209.22 | 20.87 | 224.36 | 0.4965 | 1061.2 | 853.5 | |
| 0.00 | 3.04 | 0.00 | 1.75 | -15.35 | 209.18 | 20.84 | 222.40 | 0.5108 | 225.0 | 299.9 | |
| 2.24 | 3.94 | 1.28 | 2.24 | -14.42 | 208.92 | 20.58 | 223.33 | 0.4982 | 970.4 | 747.2 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -14.02 | 208.62 | 20.28 | 223.48 | 0.4906 | 869.0 | 765.1 | |
| 0.00 | 3.04 | 0.00 | 1.75 | -15.72 | 208.75 | 20.41 | 221.31 | 0.5106 | 729.0 | 706.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -15.18 | 208.36 | 20.02 | 221.49 | 0.5007 | 892.0 | 817.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -13.16 | 208.11 | 19.77 | 224.02 | 0.4759 | 477.0 | 613.6 | |
| 0.54 | 2.06 | 0.31 | 1.18 | -15.59 | 208.17 | 19.83 | 220.66 | 0.5035 | 977.2 | 832.9 | |
| 0.00 | 14.13 | 0.00 | 8.10 | -15.88 | 207.93 | 19.59 | 219.94 | 0.5044 | 501.0 | 240.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.44 | 207.96 | 19.61 | 219.24 | 0.5110 | 765.0 | 613.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.24 | 207.87 | 19.53 | 219.38 | 0.5078 | 790.0 | 577.4 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -16.60 | 207.87 | 19.53 | 218.92 | 0.5120 | 646.0 | 543.7 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -14.06 | 207.46 | 19.12 | 221.74 | 0.4792 | -875.0 | -712.2 | |
| 0.00 | 3.31 | 0.00 | 1.90 | -16.23 | 207.67 | 19.32 | 219.10 | 0.5058 | 280.0 | 145.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -14.04 | 206.93 | 18.59 | 220.98 | 0.4736 | 481.0 | 332.3 | |
| 2.86 | 5.01 | 1.64 | 2.87 | -16.53 | 207.13 | 18.79 | 217.92 | 0.5044 | -810.5 | -577.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -13.54 | 206.60 | 18.26 | 221.18 | 0.4645 | 724.0 | 674.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.78 | 205.92 | 17.58 | 215.80 | 0.4964 | -544.0 | -442.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -14.05 | 205.59 | 17.25 | 218.85 | 0.4604 | -700.0 | -489.6 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -8.42 | 205.22 | 16.88 | 227.39 | 0.3919 | -602.0 | -432.4 | |
| 0.00 | 3.40 | 0.00 | 1.93 | -16.61 | 205.74 | 17.40 | 215.73 | 0.4927 | -706.0 | -638.3 | |
| 0.00 | 4.29 | 0.00 | 2.44 | -16.53 | 205.47 | 17.13 | 215.40 | 0.4893 | -350.0 | -266.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -16.26 | 205.35 | 17.01 | 215.54 | 0.4850 | 596.0 | 462.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.72 | 205.36 | 17.01 | 214.98 | 0.4907 | -846.0 | -670.0 | |
| 0.00 | 6.08 | 0.00 | 3.40 | -14.71 | 205.02 | 16.68 | 217.01 | 0.4630 | 712.0 | 732.5 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -17.75 | 205.19 | 16.84 | 213.51 | 0.5019 | -807.0 | -619.6 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -14.73 | 204.73 | 16.39 | 216.50 | 0.4606 | 740.0 | 642.9 | |
| 6.26 | 49.37 | 3.49 | 27.44 | -14.85 | 204.44 | 16.10 | 215.87 | 0.4595 | 834.6 | 424.8 | |
| 5.01 | -41.00 | 2.79 | -41.00 | -14.62 | 204.36 | 16.02 | 216.03 | 0.4558 | 1033.5 | 999999 | |
| 3.49 | 65.65 | 1.98 | 37.01 | -17.12 | 204.43 | 16.09 | 213.04 | 0.4878 | -842.6 | -613.5 | |
| 1.07 | -41.00 | 0.59 | -41.00 | -14.57 | 203.87 | 15.53 | 215.25 | 0.4508 | 779.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.97 | 204.15 | 15.81 | 211.61 | 0.4963 | -636.0 | -494.2 | |
| 3.31 | -43.00 | 1.87 | -43.00 | -17.29 | 203.79 | 15.45 | 211.79 | 0.4848 | -778.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.10 | 203.69 | 15.35 | 213.02 | 0.4687 | -633.0 | -510.6 | |
| 4.29 | 12.43 | 2.40 | 6.94 | -15.77 | 203.60 | 15.26 | 213.27 | 0.4637 | -897.6 | -405.4 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -18.39 | 203.82 | 15.48 | 210.62 | 0.4992 | -629.0 | -473.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -14.13 | 203.45 | 15.11 | 215.10 | 0.4415 | -755.0 | -650.9 | |
| 0.36 | 1.52 | 0.20 | 0.86 | -17.59 | 203.68 | 15.34 | 211.28 | 0.4878 | -661.0 | -561.7 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -14.77 | 203.30 | 14.96 | 213.99 | 0.4484 | 508.0 | 330.8 | |
| 19.59 | -43.00 | 11.02 | -43.00 | -16.88 | 203.43 | 15.09 | 211.65 | 0.4766 | -1103.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.41 | 203.44 | 15.10 | 211.07 | 0.4836 | -636.0 | -491.5 | |
| 0.00 | 2.59 | 0.00 | 1.48 | -18.92 | 203.44 | 15.10 | 209.46 | 0.5031 | -758.0 | -566.0 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -17.24 | 203.29 | 14.95 | 211.01 | 0.4802 | -667.0 | -533.1 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -18.91 | 203.21 | 14.87 | 209.09 | 0.5013 | -675.0 | -648.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -17.80 | 203.11 | 14.77 | 210.09 | 0.4861 | -494.0 | -518.0 | |
| 0.00 | 3.31 | 0.00 | 1.86 | -17.07 | 203.05 | 14.71 | 210.80 | 0.4760 | -920.0 | -817.6 | |
| 0.00 | 2.15 | 0.00 | 1.19 | -14.79 | 202.85 | 14.51 | 213.16 | 0.4447 | -896.0 | -819.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -17.46 | 203.02 | 14.68 | 210.30 | 0.4810 | -697.0 | -555.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.73 | 203.01 | 14.66 | 209.99 | 0.4843 | -435.0 | -428.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -12.68 | 202.59 | 14.25 | 215.52 | 0.4151 | -814.0 | -660.0 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -18.40 | 202.90 | 14.56 | 209.11 | 0.4923 | -566.0 | -498.1 | |
| 2.15 | 4.65 | 1.19 | 2.57 | -15.14 | 202.55 | 14.21 | 212.18 | 0.4468 | -799.8 | -548.2 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -18.12 | 202.78 | 14.43 | 209.19 | 0.4878 | -757.0 | -616.9 | |
| 0.00 | 3.94 | 0.00 | 2.20 | -16.29 | 202.63 | 14.29 | 210.95 | 0.4626 | -695.0 | -513.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.15 | 202.70 | 14.36 | 210.09 | 0.4744 | -880.0 | -648.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.41 | 202.55 | 14.21 | 209.56 | 0.4768 | -731.0 | -588.7 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -16.58 | 202.49 | 14.15 | 210.37 | 0.4653 | -580.0 | -556.1 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -15.82 | 202.37 | 14.03 | 211.03 | 0.4543 | -592.0 | -436.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -19.70 | 202.68 | 14.34 | 207.45 | 0.5079 | -598.0 | -421.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.02 | 202.19 | 13.85 | 212.92 | 0.4290 | 762.0 | 574.4 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.18 | 202.45 | 14.11 | 208.58 | 0.4861 | -711.0 | -614.1 | |
| 0.89 | 194.80 | 0.50 | 107.37 | -16.24 | 202.04 | 13.70 | 209.96 | 0.4573 | -865.0 | -519.0 | |
| 4.47 | -75.00 | 2.48 | -75.00 | -15.90 | 201.86 | 13.52 | 210.01 | 0.4513 | -1001.4 | 999999 | |
| 1.79 | -75.00 | 0.99 | -75.00 | -15.77 | 201.75 | 13.41 | 209.97 | 0.4487 | -951.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.96 | 201.83 | 13.49 | 208.79 | 0.4653 | -774.0 | -603.4 | |
| 0.54 | 2.06 | 0.30 | 1.15 | -17.12 | 201.68 | 13.34 | 208.35 | 0.4664 | -809.5 | -741.8 | |
| 0.00 | 3.94 | 0.00 | 2.25 | -19.56 | 201.61 | 13.27 | 205.80 | 0.4989 | -671.0 | -615.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.11 | 201.66 | 13.32 | 205.38 | 0.5065 | -757.0 | -607.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.51 | 201.22 | 12.88 | 210.46 | 0.4276 | -226.0 | -207.4 | |
| 9.75 | -75.00 | 5.41 | -75.00 | -16.31 | 201.21 | 12.86 | 208.35 | 0.4519 | -982.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -15.98 | 201.09 | 12.75 | 208.49 | 0.4465 | -659.0 | -460.9 | |
| 36.13 | -75.00 | 19.89 | -75.00 | -15.42 | 200.99 | 12.65 | 208.93 | 0.4381 | -1178.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.41 | 200.08 | 11.74 | 204.19 | 0.4732 | -708.0 | -580.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.66 | 198.98 | 10.64 | 204.70 | 0.4272 | -856.0 | -678.0 | |
| 0.00 | 5.55 | 0.00 | 3.13 | -20.05 | 197.03 | 8.68 | 197.25 | 0.4802 | -712.0 | -730.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -20.88 | 195.63 | 7.29 | 194.16 | 0.4866 | -456.0 | -488.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
