SDO HMI 2014-09-03 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.21 | 765.66 | 92.54 | 435.03 | -15.26 | 206.31 | 18.52 | 218.72 | 0.4903 | -48.5 | 13.3 | |
|
previous
or next observation for the same group /

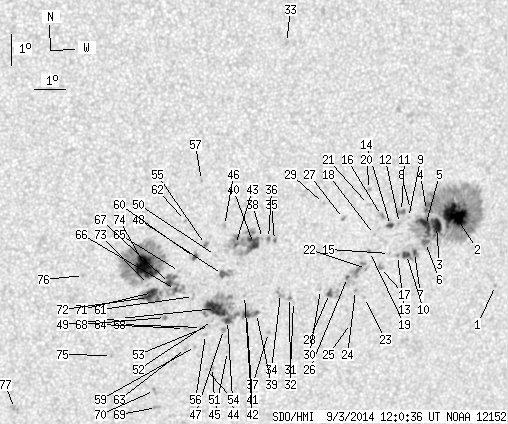

back to the solar disc SDO HMI 2014-09-03 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.70 | -16.56 | 212.78 | 24.98 | 225.94 | 0.5655 | 767.0 | 607.5 | |
| 32.82 | 297.51 | 19.07 | 172.61 | -14.18 | 211.11 | 23.31 | 227.25 | 0.5246 | 1201.0 | 413.0 | |
| 12.52 | -2.00 | 7.26 | -2.00 | -14.50 | 210.50 | 22.70 | 226.02 | 0.5213 | 1022.2 | 999999 | |
| 1.25 | -2.00 | 0.72 | -2.00 | -13.96 | 210.10 | 22.31 | 226.30 | 0.5116 | 1107.6 | 999999 | |
| 11.09 | -2.00 | 6.41 | -2.00 | -14.45 | 210.12 | 22.33 | 225.62 | 0.5168 | 1040.1 | 999999 | |
| 2.68 | -2.00 | 1.56 | -2.00 | -15.01 | 210.18 | 22.39 | 224.91 | 0.5231 | 810.1 | 999999 | |
| 1.61 | 13.86 | 0.93 | 8.04 | -15.32 | 209.84 | 22.05 | 224.05 | 0.5228 | 900.1 | 635.5 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -13.90 | 209.56 | 21.77 | 225.68 | 0.5051 | 658.0 | 573.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -14.16 | 209.52 | 21.72 | 225.25 | 0.5074 | 821.0 | 738.6 | |
| 3.49 | -7.00 | 2.02 | -7.00 | -15.37 | 209.57 | 21.78 | 223.63 | 0.5206 | 956.5 | 999999 | |
| 0.00 | 4.29 | 0.00 | 2.46 | -13.95 | 209.26 | 21.47 | 225.21 | 0.5025 | 1015.0 | 909.0 | |
| 0.00 | 2.68 | 0.00 | 1.54 | -14.34 | 209.23 | 21.44 | 224.62 | 0.5062 | 788.0 | 500.6 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -15.39 | 209.27 | 21.48 | 223.21 | 0.5177 | 722.0 | 594.3 | |
| 2.24 | 4.29 | 1.28 | 2.46 | -14.39 | 208.93 | 21.14 | 224.14 | 0.5037 | 930.7 | 725.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.31 | 208.99 | 21.20 | 222.95 | 0.5140 | -374.0 | -228.3 | |
| 0.00 | 2.68 | 0.00 | 1.53 | -14.05 | 208.60 | 20.81 | 224.18 | 0.4965 | 905.0 | 735.8 | |
| 0.00 | 2.77 | 0.00 | 1.60 | -15.75 | 208.74 | 20.95 | 222.00 | 0.5163 | 735.0 | 707.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -14.66 | 208.43 | 20.63 | 223.07 | 0.5012 | 788.0 | 704.6 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -15.21 | 208.31 | 20.52 | 222.15 | 0.5061 | 804.0 | 658.0 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -13.19 | 208.12 | 20.33 | 224.78 | 0.4822 | 773.0 | 583.1 | |
| 0.00 | 2.06 | 0.00 | 1.17 | -13.67 | 208.13 | 20.34 | 224.07 | 0.4875 | 170.0 | 93.8 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -15.76 | 208.27 | 20.48 | 221.34 | 0.5117 | 730.0 | 693.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -16.72 | 208.31 | 20.51 | 220.14 | 0.5227 | 734.0 | 598.6 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -16.47 | 207.98 | 20.18 | 220.00 | 0.5168 | 768.0 | 654.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.56 | 207.93 | 20.14 | 218.56 | 0.5286 | 527.0 | 464.4 | |
| 0.72 | 16.54 | 0.41 | 9.51 | -16.03 | 207.66 | 19.87 | 220.14 | 0.5088 | -625.9 | 266.8 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -14.09 | 207.34 | 19.55 | 222.34 | 0.4839 | -778.0 | -604.6 | |
| 2.15 | 9.57 | 1.23 | 5.51 | -16.53 | 207.11 | 19.32 | 218.70 | 0.5092 | -843.0 | -291.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -13.57 | 206.64 | 18.85 | 222.04 | 0.4708 | 817.0 | 625.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.38 | 206.79 | 19.00 | 218.43 | 0.5046 | -638.0 | -473.8 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -16.74 | 205.93 | 18.14 | 216.70 | 0.5009 | -502.0 | -437.7 | |
| 0.36 | 1.52 | 0.20 | 0.87 | -16.60 | 205.78 | 17.99 | 216.65 | 0.4979 | -758.8 | -661.8 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -8.39 | 205.11 | 17.32 | 228.21 | 0.3967 | -797.0 | -697.7 | |
| 0.00 | 4.02 | 0.00 | 2.29 | -16.46 | 205.47 | 17.68 | 216.35 | 0.4934 | -248.0 | -40.8 | |
| 0.45 | 1.61 | 0.25 | 0.90 | -14.71 | 205.12 | 17.33 | 218.07 | 0.4691 | 650.4 | 518.8 | |
| 0.54 | 2.68 | 0.30 | 1.50 | -14.63 | 204.92 | 17.13 | 217.85 | 0.4663 | 924.0 | 764.4 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -17.74 | 205.20 | 17.41 | 214.38 | 0.5065 | -778.0 | -663.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -14.63 | 204.72 | 16.93 | 217.54 | 0.4644 | 805.0 | 674.9 | |
| 1.16 | 74.49 | 0.66 | 42.11 | -17.09 | 204.74 | 16.94 | 214.43 | 0.4946 | -690.3 | -623.6 | |
| 10.37 | 51.42 | 5.79 | 28.66 | -14.78 | 204.44 | 16.65 | 216.87 | 0.4636 | 914.3 | 425.8 | |
| 3.67 | -39.00 | 2.08 | -39.00 | -17.11 | 204.41 | 16.62 | 213.89 | 0.4921 | -844.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.48 | 204.29 | 16.49 | 214.45 | 0.4832 | -361.0 | -302.2 | |
| 1.07 | -40.00 | 0.60 | -40.00 | -14.79 | 203.85 | 16.06 | 215.88 | 0.4583 | 658.7 | 999999 | |
| 2.86 | -39.00 | 1.62 | -39.00 | -17.29 | 203.80 | 16.00 | 212.70 | 0.4892 | -786.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.32 | 203.89 | 16.10 | 211.69 | 0.5031 | -428.0 | -424.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -14.16 | 203.45 | 15.66 | 216.03 | 0.4468 | -847.0 | -703.8 | |
| 0.00 | 2.77 | 0.00 | 1.58 | -17.58 | 203.69 | 15.90 | 212.20 | 0.4921 | -687.0 | -514.3 | |
| 2.68 | 8.76 | 1.50 | 4.91 | -15.76 | 203.50 | 15.71 | 214.05 | 0.4674 | -907.4 | -543.8 | |
| 19.32 | -39.00 | 10.90 | -39.00 | -16.87 | 203.37 | 15.57 | 212.48 | 0.4804 | -1078.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -15.12 | 203.23 | 15.44 | 214.37 | 0.4570 | -567.0 | -426.5 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -18.84 | 203.44 | 15.65 | 210.42 | 0.5063 | -734.0 | -576.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -17.27 | 203.30 | 15.51 | 211.91 | 0.4850 | -662.0 | -558.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -17.43 | 203.22 | 15.42 | 211.59 | 0.4864 | -600.0 | -470.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.90 | 203.25 | 15.46 | 210.05 | 0.5056 | -721.0 | -598.4 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -14.75 | 202.88 | 15.08 | 214.23 | 0.4492 | -935.0 | -738.5 | |
| 0.00 | 1.97 | 0.00 | 1.12 | -17.73 | 203.11 | 15.32 | 211.09 | 0.4893 | -586.0 | -445.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -12.67 | 202.61 | 14.82 | 216.60 | 0.4203 | -785.0 | -636.2 | |
| 0.00 | 2.24 | 0.00 | 1.26 | -17.49 | 202.96 | 15.17 | 211.10 | 0.4851 | -694.0 | -557.2 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -18.12 | 202.81 | 15.02 | 210.17 | 0.4921 | -745.0 | -630.9 | |
| 1.70 | 3.67 | 0.94 | 2.03 | -15.17 | 202.55 | 14.76 | 213.13 | 0.4517 | -759.7 | -597.3 | |
| 0.00 | 2.50 | 0.00 | 1.40 | -16.45 | 202.61 | 14.82 | 211.69 | 0.4688 | -603.0 | -569.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -13.95 | 202.18 | 14.39 | 214.02 | 0.4327 | 631.0 | 574.8 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -18.17 | 202.49 | 14.70 | 209.58 | 0.4904 | -721.0 | -597.8 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -17.50 | 202.40 | 14.61 | 210.15 | 0.4809 | -782.0 | -660.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -15.61 | 202.09 | 14.30 | 211.78 | 0.4537 | -673.0 | -460.2 | |
| 1.43 | 52.04 | 0.80 | 28.97 | -16.20 | 202.01 | 14.21 | 210.93 | 0.4607 | -844.4 | -654.9 | |
| 2.86 | -66.00 | 1.59 | -66.00 | -15.99 | 201.80 | 14.01 | 210.79 | 0.4563 | -1044.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -17.11 | 201.75 | 13.96 | 209.44 | 0.4708 | -896.0 | -722.6 | |
| 0.00 | 2.86 | 0.00 | 1.65 | -20.14 | 201.70 | 13.91 | 206.34 | 0.5108 | -764.0 | -578.6 | |
| 0.00 | 2.50 | 0.00 | 1.43 | -19.55 | 201.59 | 13.79 | 206.69 | 0.5022 | -769.0 | -685.0 | |
| 5.45 | -66.00 | 3.03 | -66.00 | -16.27 | 201.27 | 13.47 | 209.51 | 0.4559 | -1047.6 | 999999 | |
| 4.74 | -66.00 | 2.64 | -66.00 | -16.43 | 201.15 | 13.36 | 209.12 | 0.4572 | -866.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.00 | 201.12 | 13.33 | 209.54 | 0.4512 | -529.0 | -427.6 | |
| 33.98 | 140.31 | 18.75 | 77.30 | -15.41 | 200.98 | 13.19 | 209.97 | 0.4421 | -1191.6 | -499.1 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.33 | 200.08 | 12.29 | 205.24 | 0.4756 | -736.0 | -572.3 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -15.64 | 199.00 | 11.21 | 205.87 | 0.4309 | -786.0 | -647.9 | |
| 0.00 | 4.38 | 0.00 | 2.48 | -20.04 | 197.03 | 9.23 | 198.28 | 0.4825 | -816.0 | -706.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
