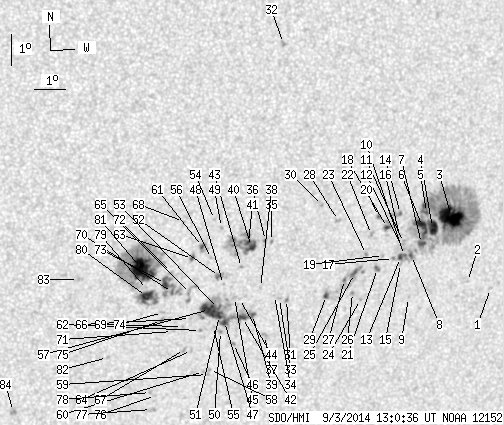

SDO HMI 2014-09-03 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.12 | 772.95 | 95.63 | 440.81 | -15.23 | 206.38 | 19.14 | 219.68 | 0.4959 | -73.4 | 23.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.97 | -16.59 | 212.75 | 25.51 | 226.50 | 0.5712 | 797.0 | 585.7 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -16.31 | 211.91 | 24.67 | 225.91 | 0.5599 | 635.0 | 598.5 | |
| 33.08 | 305.06 | 19.30 | 177.75 | -14.14 | 211.10 | 23.86 | 227.95 | 0.5302 | 1181.9 | 390.5 | |
| 11.18 | -3.00 | 6.50 | -3.00 | -14.46 | 210.49 | 23.24 | 226.75 | 0.5267 | 1037.9 | 999999 | |
| 0.80 | -3.00 | 0.47 | -3.00 | -13.96 | 210.23 | 22.99 | 227.15 | 0.5190 | 1122.2 | 999999 | |
| 11.18 | -3.00 | 6.48 | -3.00 | -14.41 | 210.14 | 22.90 | 226.39 | 0.5225 | 1035.4 | 999999 | |
| 3.31 | -3.00 | 1.93 | -3.00 | -14.97 | 210.17 | 22.93 | 225.65 | 0.5284 | 790.7 | 999999 | |
| 1.43 | 13.32 | 0.83 | 7.76 | -15.34 | 209.87 | 22.63 | 224.75 | 0.5291 | 849.4 | 673.0 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -16.73 | 209.93 | 22.69 | 222.98 | 0.5440 | 571.0 | 469.2 | |
| 0.72 | -8.00 | 0.42 | -8.00 | -15.33 | 209.63 | 22.39 | 224.47 | 0.5265 | 1066.9 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.55 | -14.90 | 209.55 | 22.31 | 224.96 | 0.5212 | 515.0 | 400.5 | |
| 0.00 | 1.79 | 0.00 | 1.04 | -15.13 | 209.57 | 22.33 | 224.67 | 0.5238 | 394.0 | 391.4 | |
| 2.32 | -8.00 | 1.35 | -8.00 | -15.39 | 209.50 | 22.26 | 224.22 | 0.5257 | 902.7 | 999999 | |
| 0.54 | 5.54 | 0.31 | 3.18 | -13.95 | 209.35 | 22.11 | 226.05 | 0.5093 | 974.5 | 815.4 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -15.59 | 209.52 | 22.28 | 223.98 | 0.5280 | -121.0 | -25.4 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -14.67 | 209.39 | 22.15 | 225.08 | 0.5171 | 709.0 | 560.2 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -15.41 | 209.27 | 22.02 | 223.89 | 0.5235 | 780.0 | 605.1 | |
| 1.97 | 7.42 | 1.13 | 4.27 | -14.38 | 208.95 | 21.71 | 224.91 | 0.5096 | 904.1 | 727.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -15.29 | 208.92 | 21.67 | 223.59 | 0.5187 | -441.0 | -263.2 | |
| 0.54 | 2.24 | 0.31 | 1.28 | -14.01 | 208.62 | 21.37 | 225.00 | 0.5021 | 916.2 | 786.2 | |
| 1.43 | 3.40 | 0.83 | 1.97 | -15.71 | 208.76 | 21.52 | 222.82 | 0.5215 | 769.8 | 634.5 | |
| 0.00 | 2.50 | 0.00 | 1.44 | -14.59 | 208.44 | 21.20 | 223.94 | 0.5063 | 892.0 | 724.2 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -15.23 | 208.34 | 21.09 | 222.90 | 0.5121 | 1007.0 | 743.5 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.71 | 208.30 | 21.05 | 220.88 | 0.5278 | 680.0 | 593.0 | |
| 2.06 | 17.97 | 1.19 | 10.38 | -15.84 | 208.00 | 20.75 | 221.62 | 0.5153 | 560.3 | 274.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -16.46 | 208.00 | 20.76 | 220.80 | 0.5222 | 688.0 | 603.6 | |
| 0.54 | -25.00 | 0.31 | -25.00 | -16.02 | 207.68 | 20.44 | 220.94 | 0.5142 | -662.5 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.47 | -14.08 | 207.29 | 20.05 | 223.07 | 0.4888 | -761.0 | -568.6 | |
| 1.52 | 3.49 | 0.88 | 2.01 | -16.52 | 207.13 | 19.89 | 219.52 | 0.5145 | -850.4 | -628.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -13.57 | 206.71 | 19.47 | 222.98 | 0.4772 | 836.0 | 633.9 | |
| 0.36 | 1.97 | 0.20 | 1.13 | -16.59 | 205.80 | 18.56 | 217.51 | 0.5029 | -694.8 | -654.8 | |
| 0.00 | 2.50 | 0.00 | 1.35 | -8.34 | 205.10 | 17.86 | 229.18 | 0.4027 | -843.0 | -736.5 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -16.55 | 205.56 | 18.32 | 217.21 | 0.5002 | -403.0 | -361.1 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -16.44 | 205.38 | 18.14 | 217.08 | 0.4974 | 536.0 | 430.3 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -14.66 | 205.13 | 17.88 | 219.01 | 0.4739 | 687.0 | 580.1 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -14.62 | 204.92 | 17.68 | 218.75 | 0.4715 | 849.0 | 798.2 | |
| 0.00 | 2.95 | 0.00 | 1.70 | -17.76 | 205.18 | 17.94 | 215.17 | 0.5114 | -750.0 | -588.6 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.16 | 204.89 | 17.65 | 216.68 | 0.4895 | 683.0 | 412.4 | |
| 1.34 | 77.96 | 0.77 | 44.21 | -17.04 | 204.71 | 17.47 | 215.31 | 0.4986 | -738.3 | -589.0 | |
| 5.81 | 43.45 | 3.26 | 24.29 | -14.80 | 204.48 | 17.24 | 217.80 | 0.4693 | 926.4 | 541.4 | |
| 2.77 | -40.00 | 1.55 | -40.00 | -14.67 | 204.37 | 17.13 | 217.81 | 0.4667 | 1058.2 | 999999 | |
| 4.02 | -39.00 | 2.29 | -39.00 | -17.13 | 204.39 | 17.15 | 214.70 | 0.4969 | -850.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -15.48 | 204.21 | 16.97 | 216.48 | 0.4750 | 711.0 | 577.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -16.50 | 204.23 | 16.99 | 215.23 | 0.4877 | -517.0 | -375.9 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -16.46 | 204.06 | 16.82 | 215.01 | 0.4857 | -152.0 | -165.9 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -17.99 | 204.17 | 16.93 | 213.37 | 0.5056 | -717.0 | -619.2 | |
| 4.38 | -39.00 | 2.49 | -39.00 | -17.24 | 203.80 | 16.56 | 213.65 | 0.4932 | -799.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -16.01 | 203.66 | 16.42 | 214.91 | 0.4767 | -601.0 | -448.9 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -14.14 | 203.45 | 16.21 | 217.00 | 0.4517 | -765.0 | -632.2 | |
| 0.00 | 1.70 | 0.00 | 0.97 | -17.57 | 203.70 | 16.46 | 213.11 | 0.4965 | -655.0 | -550.7 | |
| 5.28 | -39.00 | 2.99 | -39.00 | -17.03 | 203.62 | 16.38 | 213.60 | 0.4891 | -926.7 | 999999 | |
| 0.00 | 5.19 | 0.00 | 2.91 | -15.74 | 203.51 | 16.27 | 214.99 | 0.4721 | -923.0 | -769.0 | |
| 1.61 | -39.00 | 0.91 | -39.00 | -16.80 | 203.57 | 16.32 | 213.79 | 0.4857 | -863.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -13.87 | 203.20 | 15.96 | 216.94 | 0.4461 | -716.0 | -554.7 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -17.39 | 203.45 | 16.21 | 212.92 | 0.4922 | -496.0 | -428.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -15.14 | 203.20 | 15.96 | 215.24 | 0.4618 | -595.0 | -365.3 | |
| 15.29 | -39.00 | 8.64 | -39.00 | -16.82 | 203.27 | 16.03 | 213.29 | 0.4835 | -1099.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -18.83 | 203.46 | 16.22 | 211.33 | 0.5104 | -730.0 | -611.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -19.00 | 203.41 | 16.17 | 211.07 | 0.5121 | -518.0 | -443.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -18.89 | 203.26 | 16.02 | 210.96 | 0.5097 | -798.0 | -646.3 | |
| 1.52 | 5.81 | 0.84 | 3.23 | -14.74 | 202.88 | 15.64 | 215.22 | 0.4539 | -810.4 | -203.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.51 | 203.04 | 15.79 | 212.11 | 0.4903 | -730.0 | -678.8 | |
| 1.25 | 3.93 | 0.70 | 2.19 | -15.12 | 202.58 | 15.34 | 214.21 | 0.4561 | -830.1 | -585.0 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -18.17 | 202.80 | 15.56 | 210.99 | 0.4968 | -765.0 | -634.6 | |
| 0.00 | 8.40 | 0.00 | 4.71 | -16.27 | 202.60 | 15.36 | 212.83 | 0.4709 | -429.0 | -596.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.10 | 202.67 | 15.43 | 211.98 | 0.4821 | -812.0 | -638.4 | |
| 0.00 | 1.88 | 0.00 | 1.07 | -18.12 | 202.56 | 15.32 | 210.65 | 0.4945 | -788.0 | -646.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -13.90 | 202.20 | 14.96 | 215.14 | 0.4372 | 553.0 | 476.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.35 | 202.43 | 15.19 | 211.28 | 0.4835 | -829.0 | -677.7 | |
| 0.72 | 23.43 | 0.40 | 13.08 | -16.21 | 202.01 | 14.77 | 211.88 | 0.4654 | -847.9 | -750.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.51 | 202.11 | 14.87 | 210.58 | 0.4830 | -636.0 | -596.4 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -15.55 | 201.93 | 14.69 | 212.53 | 0.4561 | 33.0 | -63.0 | |
| 5.19 | -70.00 | 2.89 | -70.00 | -15.91 | 201.76 | 14.52 | 211.80 | 0.4594 | -1020.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -16.86 | 201.73 | 14.49 | 210.65 | 0.4717 | -795.0 | -637.4 | |
| 0.00 | 2.15 | 0.00 | 1.21 | -17.13 | 201.72 | 14.48 | 210.34 | 0.4751 | -804.0 | -697.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -19.64 | 201.74 | 14.50 | 207.76 | 0.5082 | -648.0 | -576.9 | |
| 0.00 | 3.84 | 0.00 | 2.22 | -20.12 | 201.65 | 14.41 | 207.16 | 0.5138 | -582.0 | -500.1 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -19.54 | 201.56 | 14.32 | 207.58 | 0.5056 | -780.0 | -612.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.09 | 201.19 | 13.95 | 210.58 | 0.4571 | -164.0 | -305.2 | |
| 9.66 | 24.50 | 5.38 | 13.66 | -16.32 | 201.17 | 13.93 | 210.29 | 0.4601 | -933.9 | -569.1 | |
| 36.30 | 141.62 | 20.08 | 78.21 | -15.42 | 200.98 | 13.74 | 210.98 | 0.4467 | -1166.6 | -477.0 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -18.31 | 200.05 | 12.81 | 206.19 | 0.4787 | -705.0 | -561.3 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -15.69 | 198.94 | 11.70 | 206.79 | 0.4349 | -735.0 | -567.4 | |
| 0.00 | 3.58 | 0.00 | 2.02 | -20.05 | 197.10 | 9.86 | 199.41 | 0.4857 | -833.0 | -692.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
