SDO HMI 2014-09-03 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.74 | 49.51 | 10.43 | 31.02 | -17.74 | 158.69 | -28.55 | 131.86 | 0.6131 | 267.6 | 154.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

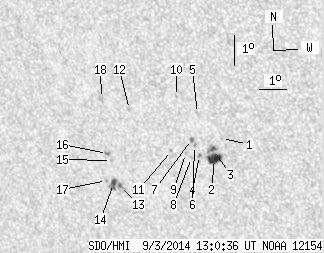

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.49 | -17.14 | 160.75 | -26.49 | 133.16 | 0.5865 | 675.0 | 524.4 | |
| 9.75 | 17.88 | 6.00 | 11.01 | -17.83 | 160.39 | -26.85 | 133.66 | 0.5965 | 836.6 | 690.3 | |
| 1.52 | -2.00 | 0.93 | -2.00 | -17.53 | 160.41 | -26.83 | 133.29 | 0.5936 | 923.5 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -17.76 | 159.87 | -27.37 | 133.03 | 0.6012 | 703.0 | 566.6 | |
| 0.00 | 2.32 | 0.00 | 1.42 | -16.36 | 160.02 | -27.22 | 131.37 | 0.5870 | 597.0 | 461.6 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -17.43 | 159.74 | -27.50 | 132.48 | 0.5995 | 824.0 | 744.3 | |
| 0.72 | 2.15 | 0.44 | 1.32 | -17.24 | 159.67 | -27.57 | 132.16 | 0.5986 | 756.5 | 655.5 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.84 | 159.57 | -27.67 | 132.83 | 0.6050 | 642.0 | 549.4 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -17.72 | 159.37 | -27.87 | 132.47 | 0.6059 | 542.0 | 466.8 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -15.84 | 159.35 | -27.89 | 130.00 | 0.5896 | 444.0 | 421.6 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -17.65 | 158.88 | -28.36 | 131.89 | 0.6103 | 559.0 | 462.7 | |
| 0.00 | 1.52 | 0.00 | 0.95 | -16.38 | 157.58 | -29.66 | 128.99 | 0.6132 | -413.0 | -451.2 | |
| 0.72 | 9.92 | 0.46 | 6.41 | -18.96 | 156.76 | -30.48 | 131.51 | 0.6429 | -786.1 | -560.8 | |
| 3.58 | -13.00 | 2.31 | -13.00 | -18.90 | 156.51 | -30.73 | 131.22 | 0.6449 | -716.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.92 | -18.13 | 156.60 | -30.65 | 130.34 | 0.6378 | -699.0 | -613.5 | |
| 0.45 | 2.15 | 0.29 | 1.38 | -17.90 | 156.49 | -30.75 | 129.96 | 0.6370 | -795.0 | -706.4 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -18.82 | 156.27 | -30.97 | 130.90 | 0.6467 | -641.0 | -515.7 | |
| 0.00 | 3.93 | 0.00 | 2.48 | -16.08 | 156.61 | -30.63 | 127.71 | 0.6212 | 432.0 | 341.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
