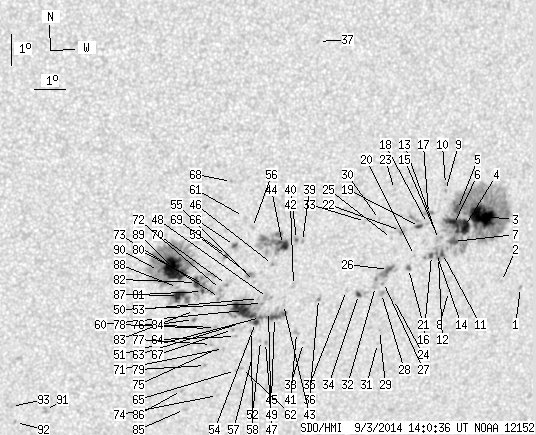

SDO HMI 2014-09-03 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 169.42 | 762.84 | 96.81 | 436.77 | -15.25 | 206.42 | 19.73 | 220.51 | 0.5017 | -63.2 | 25.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.92 | -16.59 | 212.72 | 26.03 | 227.07 | 0.5767 | 769.0 | 599.9 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -16.35 | 212.02 | 25.33 | 226.61 | 0.5671 | 597.0 | 525.3 | |
| 36.12 | 316.19 | 21.16 | 185.01 | -14.17 | 211.09 | 24.40 | 228.55 | 0.5365 | 1151.3 | 407.0 | |
| 12.25 | -3.00 | 7.16 | -3.00 | -14.46 | 210.51 | 23.82 | 227.45 | 0.5329 | 995.5 | 999999 | |
| 4.65 | -3.00 | 2.70 | -3.00 | -13.90 | 210.21 | 23.52 | 227.90 | 0.5241 | 1051.6 | 999999 | |
| 11.17 | -3.00 | 6.51 | -3.00 | -14.38 | 210.13 | 23.43 | 227.11 | 0.5279 | 1055.8 | 999999 | |
| 4.11 | -3.00 | 2.41 | -3.00 | -14.93 | 210.19 | 23.50 | 226.40 | 0.5341 | 809.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -16.57 | 210.22 | 23.53 | 224.21 | 0.5508 | 677.0 | 611.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -13.26 | 209.74 | 23.05 | 228.26 | 0.5127 | 863.0 | 742.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -13.06 | 209.72 | 23.03 | 228.53 | 0.5106 | 831.0 | 650.3 | |
| 1.70 | -3.00 | 0.99 | -3.00 | -15.31 | 209.86 | 23.17 | 225.47 | 0.5343 | 832.0 | 999999 | |
| 0.54 | -3.00 | 0.31 | -3.00 | -15.43 | 209.73 | 23.04 | 225.15 | 0.5343 | 686.3 | 999999 | |
| 0.00 | 4.83 | 0.00 | 2.81 | -14.84 | 209.67 | 22.98 | 225.89 | 0.5276 | 728.0 | 533.6 | |
| 0.54 | -3.00 | 0.31 | -3.00 | -15.30 | 209.65 | 22.96 | 225.23 | 0.5320 | 1014.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -14.64 | 209.58 | 22.89 | 226.06 | 0.5246 | 746.0 | 618.1 | |
| 1.52 | -3.00 | 0.89 | -3.00 | -15.35 | 209.49 | 22.80 | 224.95 | 0.5309 | 924.6 | 999999 | |
| 0.00 | 4.92 | 0.00 | 2.84 | -13.97 | 209.23 | 22.54 | 226.58 | 0.5143 | 1042.0 | 877.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -14.30 | 209.23 | 22.54 | 226.11 | 0.5175 | 771.0 | 651.4 | |
| 1.70 | 7.96 | 0.98 | 4.59 | -14.38 | 208.97 | 22.28 | 225.66 | 0.5156 | 842.4 | 759.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.32 | 208.91 | 22.21 | 224.25 | 0.5246 | -588.0 | -415.6 | |
| 1.16 | 2.86 | 0.68 | 1.67 | -15.74 | 208.75 | 22.06 | 223.48 | 0.5273 | 788.5 | 658.1 | |
| 0.00 | 7.06 | 0.00 | 4.06 | -14.48 | 208.34 | 21.65 | 224.70 | 0.5099 | 818.0 | 644.6 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.14 | 208.01 | 21.32 | 226.22 | 0.4924 | 603.0 | 539.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -16.74 | 208.36 | 21.67 | 221.65 | 0.5340 | 715.0 | 530.9 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -14.73 | 208.07 | 21.37 | 223.98 | 0.5096 | 622.0 | 360.1 | |
| 2.77 | 13.41 | 1.61 | 7.77 | -15.74 | 208.07 | 21.38 | 222.60 | 0.5205 | 843.5 | 153.4 | |
| 0.00 | 2.15 | 0.00 | 1.25 | -16.16 | 207.95 | 21.26 | 221.87 | 0.5238 | 271.0 | 397.9 | |
| 0.00 | 2.86 | 0.00 | 1.67 | -16.52 | 207.92 | 21.23 | 221.37 | 0.5274 | 768.0 | 581.7 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -17.75 | 208.00 | 21.31 | 219.91 | 0.5416 | 633.0 | 478.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -14.09 | 207.60 | 20.91 | 224.26 | 0.4980 | -548.0 | -365.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -18.18 | 207.99 | 21.30 | 219.36 | 0.5462 | 470.0 | 401.1 | |
| 0.00 | 3.04 | 0.00 | 1.76 | -16.28 | 207.69 | 21.00 | 221.37 | 0.5226 | 193.0 | 177.3 | |
| 0.00 | 2.77 | 0.00 | 1.58 | -14.13 | 207.14 | 20.45 | 223.56 | 0.4936 | -819.0 | -582.0 | |
| 1.52 | 6.53 | 0.88 | 3.78 | -16.52 | 207.15 | 20.45 | 220.32 | 0.5199 | -789.7 | -476.6 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -16.36 | 206.73 | 20.03 | 219.93 | 0.5141 | -637.0 | -503.2 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -16.59 | 205.81 | 19.12 | 218.34 | 0.5080 | -398.0 | -579.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -8.31 | 205.19 | 18.50 | 230.25 | 0.4101 | -762.0 | -632.8 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -18.03 | 205.46 | 18.77 | 216.07 | 0.5218 | -585.0 | -476.7 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -14.69 | 205.10 | 18.41 | 219.79 | 0.4793 | 627.0 | 558.9 | |
| 0.54 | 1.97 | 0.30 | 1.11 | -14.61 | 204.90 | 18.21 | 219.58 | 0.4764 | 924.2 | 790.0 | |
| 0.00 | 2.50 | 0.00 | 1.44 | -17.69 | 205.19 | 18.50 | 216.08 | 0.5153 | -805.0 | -614.1 | |
| 0.00 | 2.68 | 0.00 | 1.53 | -16.12 | 204.93 | 18.24 | 217.64 | 0.4944 | 547.0 | 286.7 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -16.73 | 204.66 | 17.97 | 216.45 | 0.4993 | -390.0 | -360.6 | |
| 8.58 | 39.24 | 4.82 | 22.00 | -14.76 | 204.45 | 17.76 | 218.69 | 0.4738 | 938.9 | 605.8 | |
| 3.93 | 59.98 | 2.25 | 34.12 | -17.15 | 204.40 | 17.71 | 215.54 | 0.5020 | -843.9 | -645.3 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -15.40 | 204.17 | 17.48 | 217.40 | 0.4788 | 740.0 | 545.9 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.95 | 204.18 | 17.49 | 215.46 | 0.4976 | -372.0 | -387.5 | |
| 0.00 | 5.45 | 0.00 | 3.10 | -16.48 | 204.11 | 17.41 | 215.91 | 0.4913 | -184.0 | -246.4 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -17.98 | 204.18 | 17.49 | 214.24 | 0.5102 | -666.0 | -569.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.67 | 203.96 | 17.27 | 215.44 | 0.4923 | -678.0 | -494.7 | |
| 1.07 | -45.00 | 0.61 | -45.00 | -17.13 | 203.93 | 17.24 | 214.85 | 0.4978 | -762.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.90 | 204.01 | 17.32 | 214.06 | 0.5078 | -675.0 | -521.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.50 | 203.81 | 17.12 | 215.42 | 0.4889 | -603.0 | -543.2 | |
| 2.15 | -45.00 | 1.22 | -45.00 | -17.29 | 203.78 | 17.09 | 214.43 | 0.4984 | -795.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -15.93 | 203.63 | 16.94 | 215.84 | 0.4804 | -467.0 | -454.4 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -14.16 | 203.42 | 16.73 | 217.84 | 0.4568 | -766.0 | -616.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -18.40 | 203.79 | 17.10 | 213.17 | 0.5121 | -622.0 | -498.0 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -17.59 | 203.68 | 16.99 | 213.92 | 0.5012 | -652.0 | -563.8 | |
| 0.00 | 5.27 | 0.00 | 2.97 | -15.73 | 203.48 | 16.79 | 215.86 | 0.4765 | -892.0 | -722.7 | |
| 20.29 | -45.00 | 11.51 | -45.00 | -16.88 | 203.35 | 16.66 | 214.23 | 0.4896 | -1034.2 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -13.79 | 203.10 | 16.41 | 217.82 | 0.4493 | -347.0 | -486.0 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -18.82 | 203.47 | 16.78 | 212.21 | 0.5147 | -679.0 | -535.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.31 | 203.26 | 16.57 | 213.58 | 0.4941 | -459.0 | -379.3 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -17.74 | 203.16 | 16.47 | 212.94 | 0.4987 | -658.0 | -476.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -18.88 | 203.27 | 16.58 | 211.84 | 0.5139 | -698.0 | -609.9 | |
| 1.16 | 2.23 | 0.65 | 1.24 | -14.73 | 202.88 | 16.19 | 216.17 | 0.4587 | -816.7 | -695.1 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -17.50 | 203.04 | 16.35 | 213.02 | 0.4947 | -710.0 | -581.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -12.65 | 202.63 | 15.94 | 218.66 | 0.4308 | -797.0 | -634.3 | |
| 0.54 | 2.68 | 0.30 | 1.50 | -15.04 | 202.64 | 15.95 | 215.35 | 0.4605 | -796.2 | -692.0 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -16.00 | 202.71 | 16.02 | 214.27 | 0.4731 | -301.0 | -329.9 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.12 | 202.80 | 16.11 | 211.93 | 0.5007 | -759.0 | -650.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.15 | 202.53 | 15.84 | 213.77 | 0.4735 | -781.0 | -682.9 | |
| 0.00 | 3.67 | 0.00 | 2.06 | -16.42 | 202.52 | 15.83 | 213.44 | 0.4768 | -718.0 | -647.6 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -19.70 | 202.76 | 16.07 | 210.18 | 0.5203 | -540.0 | -439.4 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -18.15 | 202.54 | 15.85 | 211.49 | 0.4989 | -720.0 | -650.2 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -17.41 | 202.47 | 15.78 | 212.20 | 0.4890 | -863.0 | -781.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.97 | 202.39 | 15.70 | 211.44 | 0.4955 | -636.0 | -552.5 | |
| 0.00 | 2.59 | 0.00 | 1.47 | -17.43 | 202.21 | 15.52 | 211.75 | 0.4872 | -805.0 | -653.8 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -18.67 | 202.26 | 15.57 | 210.47 | 0.5034 | -739.0 | -543.2 | |
| 0.45 | 31.74 | 0.25 | 17.76 | -15.97 | 201.96 | 15.27 | 213.04 | 0.4664 | -891.0 | -689.8 | |
| 0.98 | -80.00 | 0.55 | -80.00 | -16.20 | 201.95 | 15.26 | 212.73 | 0.4692 | -873.7 | 999999 | |
| 4.65 | -80.00 | 2.60 | -80.00 | -15.90 | 201.73 | 15.04 | 212.72 | 0.4635 | -1032.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -16.82 | 201.73 | 15.04 | 211.65 | 0.4754 | -739.0 | -580.2 | |
| 0.36 | 1.79 | 0.20 | 1.01 | -17.12 | 201.73 | 15.03 | 211.29 | 0.4792 | -788.0 | -642.4 | |
| 0.00 | 2.06 | 0.00 | 1.19 | -20.14 | 201.70 | 15.01 | 208.10 | 0.5183 | -726.0 | -593.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.49 | 201.54 | 14.85 | 208.47 | 0.5087 | -644.0 | -566.4 | |
| 8.40 | 22.17 | 4.69 | 12.39 | -16.30 | 201.17 | 14.48 | 211.27 | 0.4642 | -987.6 | -560.7 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -16.04 | 201.12 | 14.43 | 211.49 | 0.4603 | -683.0 | -517.3 | |
| 35.94 | 140.44 | 19.92 | 77.72 | -15.41 | 200.94 | 14.25 | 211.93 | 0.4507 | -1168.5 | -479.8 | |
| 0.63 | -89.00 | 0.35 | -89.00 | -15.46 | 200.46 | 13.77 | 211.00 | 0.4474 | -875.1 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.72 | -20.03 | 197.10 | 10.41 | 200.43 | 0.4883 | -762.0 | -674.3 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -20.42 | 196.14 | 9.45 | 198.42 | 0.4890 | -782.0 | -643.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.87 | 195.98 | 9.29 | 198.50 | 0.4803 | -707.0 | -605.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
