SDO HMI 2014-09-03 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.90 | 50.22 | 10.44 | 31.35 | -17.99 | 158.78 | -27.91 | 132.83 | 0.6088 | 265.6 | 93.6 | |
|
previous
or next observation for the same group /

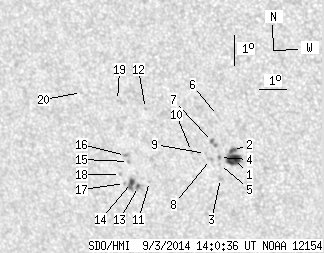

back to the solar disc SDO HMI 2014-09-03 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.82 | 18.06 | 6.63 | 11.06 | -17.83 | 160.41 | -26.28 | 134.27 | 0.5908 | 820.0 | 664.2 | |
| 2.15 | -1.00 | 1.31 | -1.00 | -17.53 | 160.42 | -26.27 | 133.90 | 0.5879 | 885.6 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.61 | -18.49 | 159.84 | -26.85 | 134.50 | 0.6028 | 559.0 | 505.4 | |
| 0.00 | 1.61 | 0.00 | 0.99 | -17.79 | 159.92 | -26.77 | 133.70 | 0.5954 | 737.0 | 568.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -18.02 | 159.88 | -26.81 | 133.95 | 0.5980 | 603.0 | 493.9 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -16.39 | 160.07 | -26.62 | 132.04 | 0.5810 | 648.0 | 518.9 | |
| 0.63 | 4.02 | 0.38 | 2.47 | -17.27 | 159.76 | -26.93 | 132.86 | 0.5923 | 741.4 | 676.3 | |
| 0.00 | 2.50 | 0.00 | 1.55 | -17.87 | 159.59 | -27.11 | 133.45 | 0.5996 | 637.0 | 474.3 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.68 | 159.44 | -27.25 | 133.06 | 0.5993 | 568.0 | 525.2 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.65 | 158.94 | -27.75 | 132.51 | 0.6040 | 591.0 | 487.3 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -18.76 | 157.22 | -29.47 | 132.20 | 0.6312 | -757.0 | -669.1 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -16.32 | 157.51 | -29.18 | 129.37 | 0.6075 | -627.0 | -565.8 | |
| 0.98 | 10.82 | 0.63 | 6.95 | -18.95 | 156.77 | -29.92 | 132.02 | 0.6373 | -761.5 | -587.7 | |
| 2.32 | -13.00 | 1.49 | -13.00 | -18.83 | 156.54 | -30.15 | 131.66 | 0.6386 | -799.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.13 | 156.56 | -30.13 | 130.81 | 0.6325 | -715.0 | -667.5 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -17.94 | 156.49 | -30.20 | 130.50 | 0.6316 | -857.0 | -747.6 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.89 | 156.27 | -30.42 | 131.48 | 0.6418 | -528.0 | -439.5 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -18.59 | 156.18 | -30.51 | 131.03 | 0.6402 | -639.0 | -523.8 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -16.12 | 156.53 | -30.16 | 128.18 | 0.6164 | 530.0 | 475.5 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.94 | 155.24 | -31.45 | 126.81 | 0.6289 | 324.0 | 365.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
