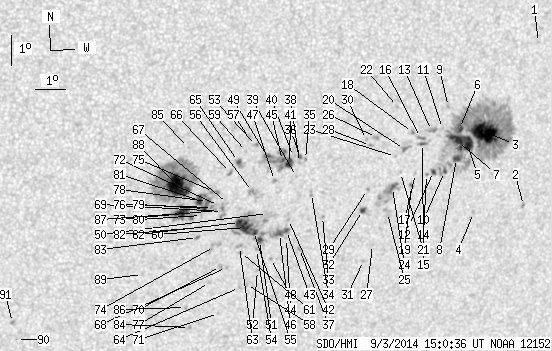

SDO HMI 2014-09-03 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.95 | 770.72 | 98.56 | 442.93 | -15.21 | 206.50 | 20.36 | 221.46 | 0.5075 | -23.1 | 43.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.63 | -11.34 | 212.61 | 26.47 | 235.07 | 0.5351 | 555.0 | 351.5 | |
| 0.00 | 1.79 | 0.00 | 1.09 | -16.62 | 212.74 | 26.60 | 227.63 | 0.5829 | 720.0 | 567.2 | |
| 37.09 | 324.45 | 21.83 | 190.68 | -14.14 | 211.08 | 24.95 | 229.22 | 0.5422 | 1176.2 | 398.8 | |
| 0.00 | 1.52 | 0.00 | 0.91 | -16.75 | 211.00 | 24.86 | 225.55 | 0.5662 | 668.0 | 491.7 | |
| 11.26 | -3.00 | 6.61 | -3.00 | -14.46 | 210.50 | 24.36 | 228.09 | 0.5389 | 1015.8 | 999999 | |
| 4.65 | -3.00 | 2.71 | -3.00 | -13.96 | 210.17 | 24.03 | 228.43 | 0.5304 | 1054.5 | 999999 | |
| 12.51 | -3.00 | 7.32 | -3.00 | -14.38 | 210.15 | 24.01 | 227.80 | 0.5342 | 1058.0 | 999999 | |
| 3.66 | -3.00 | 2.15 | -3.00 | -14.93 | 210.18 | 24.04 | 227.05 | 0.5399 | 811.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -13.22 | 209.72 | 23.58 | 228.96 | 0.5183 | 867.0 | 770.4 | |
| 1.34 | -3.00 | 0.79 | -3.00 | -15.34 | 209.82 | 23.68 | 226.06 | 0.5400 | 869.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -13.93 | 209.59 | 23.45 | 227.77 | 0.5237 | 758.0 | 648.2 | |
| 1.61 | -3.00 | 0.94 | -3.00 | -15.32 | 209.44 | 23.30 | 225.62 | 0.5358 | 916.8 | 999999 | |
| 0.00 | 5.27 | 0.00 | 3.05 | -13.97 | 209.22 | 23.08 | 227.26 | 0.5201 | 1000.0 | 834.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -15.40 | 209.21 | 23.07 | 225.22 | 0.5343 | 494.0 | 515.9 | |
| 0.89 | 4.38 | 0.52 | 2.54 | -14.38 | 208.96 | 22.82 | 226.34 | 0.5213 | 899.8 | 720.4 | |
| 0.00 | 2.95 | 0.00 | 1.71 | -14.18 | 208.87 | 22.73 | 226.52 | 0.5184 | 1034.0 | 815.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.35 | 208.83 | 22.69 | 224.82 | 0.5298 | -342.0 | -249.2 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -14.00 | 208.58 | 22.44 | 226.41 | 0.5135 | 953.0 | 767.2 | |
| 0.54 | 2.23 | 0.31 | 1.31 | -15.74 | 208.74 | 22.60 | 224.18 | 0.5328 | 734.8 | 610.4 | |
| 0.80 | 4.20 | 0.46 | 2.43 | -14.54 | 208.37 | 22.23 | 225.36 | 0.5167 | 857.2 | 712.5 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -15.29 | 208.31 | 22.17 | 224.25 | 0.5238 | 811.0 | 675.6 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.13 | 207.99 | 21.85 | 226.93 | 0.4982 | 753.0 | 562.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -14.76 | 208.09 | 21.95 | 224.69 | 0.5159 | 631.0 | 541.1 | |
| 2.86 | 25.12 | 1.66 | 14.62 | -15.77 | 208.10 | 21.96 | 223.31 | 0.5266 | 877.3 | 164.1 | |
| 0.00 | 5.72 | 0.00 | 3.35 | -16.59 | 208.02 | 21.88 | 222.13 | 0.5345 | 694.0 | 516.6 | |
| 0.00 | 3.04 | 0.00 | 1.74 | -14.10 | 207.38 | 21.24 | 224.69 | 0.5017 | -865.0 | -719.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -17.63 | 207.64 | 21.50 | 220.30 | 0.5420 | 461.0 | 512.2 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -14.36 | 207.21 | 21.07 | 224.09 | 0.5025 | -699.0 | -577.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -15.79 | 207.25 | 21.11 | 222.17 | 0.5184 | 506.0 | 529.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -14.15 | 207.05 | 20.91 | 224.17 | 0.4987 | -850.0 | -729.9 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -18.15 | 207.39 | 21.26 | 219.34 | 0.5455 | 320.0 | 430.9 | |
| 2.23 | 3.66 | 1.30 | 2.13 | -16.48 | 207.16 | 21.02 | 221.14 | 0.5249 | -763.8 | -564.9 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -16.61 | 205.83 | 19.69 | 219.12 | 0.5137 | -506.0 | -563.4 | |
| 0.00 | 2.41 | 0.00 | 1.38 | -15.84 | 205.38 | 19.24 | 219.49 | 0.5006 | -756.0 | -529.3 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -14.71 | 205.08 | 18.94 | 220.56 | 0.4847 | 652.0 | 559.5 | |
| 0.72 | 1.79 | 0.40 | 1.01 | -14.61 | 204.90 | 18.76 | 220.44 | 0.4818 | 931.9 | 816.5 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -17.64 | 205.17 | 19.03 | 216.90 | 0.5195 | -781.0 | -561.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -14.80 | 204.89 | 18.75 | 220.15 | 0.4839 | 683.0 | 546.6 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -15.26 | 204.83 | 18.69 | 219.44 | 0.4886 | 568.0 | 538.8 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -14.60 | 204.67 | 18.53 | 220.10 | 0.4794 | 520.0 | 561.0 | |
| 5.18 | 36.65 | 2.93 | 20.62 | -14.82 | 204.56 | 18.42 | 219.62 | 0.4809 | 968.3 | 644.3 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -16.66 | 204.70 | 18.56 | 217.42 | 0.5038 | -282.0 | -188.4 | |
| 1.61 | 9.21 | 0.92 | 5.28 | -17.02 | 204.67 | 18.53 | 216.93 | 0.5078 | -696.2 | -693.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -17.29 | 204.69 | 18.56 | 216.64 | 0.5111 | -71.0 | -104.9 | |
| 1.43 | -41.00 | 0.81 | -41.00 | -14.71 | 204.32 | 18.18 | 219.40 | 0.4773 | 1041.5 | 999999 | |
| 3.13 | -43.00 | 1.80 | -43.00 | -17.11 | 204.44 | 18.30 | 216.48 | 0.5068 | -858.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -15.36 | 204.11 | 17.97 | 218.22 | 0.4829 | 553.0 | 453.0 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -17.94 | 204.23 | 18.09 | 215.18 | 0.5147 | -521.0 | -451.5 | |
| 1.88 | -41.00 | 1.05 | -41.00 | -14.56 | 203.81 | 17.67 | 218.82 | 0.4706 | 714.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.43 | 203.98 | 17.84 | 216.62 | 0.4945 | -150.0 | -135.4 | |
| 2.59 | 55.33 | 1.48 | 31.51 | -17.32 | 203.80 | 17.66 | 215.26 | 0.5036 | -763.2 | -533.4 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -18.32 | 203.83 | 17.69 | 214.15 | 0.5160 | -469.0 | -456.3 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -14.19 | 203.42 | 17.28 | 218.71 | 0.4624 | -757.0 | -653.2 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -17.62 | 203.73 | 17.59 | 214.80 | 0.5066 | -655.0 | -527.1 | |
| 4.02 | -51.00 | 2.29 | -51.00 | -17.01 | 203.57 | 17.43 | 215.28 | 0.4979 | -903.0 | 999999 | |
| 0.00 | 4.83 | 0.00 | 2.72 | -15.69 | 203.41 | 17.27 | 216.69 | 0.4804 | -843.0 | -671.0 | |
| 0.00 | 2.86 | 0.00 | 1.59 | -13.92 | 203.17 | 17.03 | 218.68 | 0.4568 | -822.0 | -665.2 | |
| 0.00 | 1.52 | 0.00 | 0.88 | -18.78 | 203.51 | 17.37 | 213.15 | 0.5190 | -321.0 | -417.5 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -14.37 | 203.11 | 16.97 | 217.95 | 0.4616 | -665.0 | -506.3 | |
| 11.26 | -51.00 | 6.41 | -51.00 | -16.87 | 203.29 | 17.15 | 215.02 | 0.4937 | -1103.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -17.69 | 203.20 | 17.06 | 213.91 | 0.5031 | -447.0 | -410.9 | |
| 4.20 | -51.00 | 2.38 | -51.00 | -16.69 | 203.07 | 16.94 | 214.90 | 0.4897 | -1103.8 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.63 | -17.49 | 203.15 | 17.01 | 214.06 | 0.5002 | -622.0 | -561.0 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -18.87 | 203.29 | 17.15 | 212.71 | 0.5183 | -582.0 | -470.7 | |
| 1.43 | 6.44 | 0.80 | 3.60 | -14.68 | 202.87 | 16.73 | 217.13 | 0.4632 | -836.5 | -219.6 | |
| 0.00 | 2.32 | 0.00 | 1.30 | -15.03 | 202.64 | 16.50 | 216.29 | 0.4654 | -804.0 | -728.7 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.05 | 202.62 | 16.48 | 214.96 | 0.4778 | -379.0 | -393.8 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -18.18 | 202.78 | 16.64 | 212.71 | 0.5056 | -559.0 | -544.8 | |
| 0.00 | 6.08 | 0.00 | 3.43 | -16.31 | 202.48 | 16.34 | 214.41 | 0.4798 | -713.0 | -643.1 | |
| 0.00 | 2.41 | 0.00 | 1.38 | -18.14 | 202.58 | 16.44 | 212.44 | 0.5035 | -729.0 | -598.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.72 | 202.67 | 16.53 | 210.88 | 0.5241 | -511.0 | -389.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.10 | 202.33 | 16.19 | 214.42 | 0.4759 | -645.0 | -481.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.27 | 202.28 | 16.14 | 214.14 | 0.4775 | -709.0 | -657.3 | |
| 0.00 | 7.24 | 0.00 | 4.12 | -17.46 | 202.32 | 16.18 | 212.79 | 0.4929 | -727.0 | -591.4 | |
| 0.00 | 5.01 | 0.00 | 2.80 | -15.64 | 202.13 | 15.99 | 214.67 | 0.4683 | -180.0 | -363.0 | |
| 0.00 | 2.59 | 0.00 | 1.46 | -16.16 | 202.14 | 16.00 | 214.03 | 0.4750 | -805.0 | -560.2 | |
| 0.00 | 2.32 | 0.00 | 1.33 | -18.66 | 202.27 | 16.13 | 211.37 | 0.5076 | -555.0 | -432.5 | |
| 2.06 | 18.14 | 1.15 | 10.17 | -15.96 | 201.96 | 15.82 | 213.98 | 0.4709 | -822.8 | -731.1 | |
| 2.23 | -78.00 | 1.26 | -78.00 | -16.19 | 201.88 | 15.74 | 213.57 | 0.4731 | -887.8 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -16.41 | 201.80 | 15.66 | 213.16 | 0.4753 | -617.0 | -550.8 | |
| 4.65 | -78.00 | 2.60 | -78.00 | -15.92 | 201.70 | 15.56 | 213.59 | 0.4681 | -976.7 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -16.81 | 201.77 | 15.63 | 212.64 | 0.4801 | -541.0 | -454.5 | |
| 0.00 | 2.06 | 0.00 | 1.16 | -17.14 | 201.73 | 15.59 | 212.20 | 0.4840 | -599.0 | -500.1 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -20.16 | 201.75 | 15.61 | 209.01 | 0.5229 | -724.0 | -537.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -14.17 | 201.21 | 15.07 | 214.98 | 0.4416 | 611.0 | 404.0 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.48 | 201.55 | 15.41 | 209.38 | 0.5126 | -250.0 | -445.8 | |
| 9.83 | 159.90 | 5.51 | 88.85 | -16.32 | 201.14 | 15.00 | 212.15 | 0.4687 | -893.6 | -498.0 | |
| 36.29 | -87.00 | 20.17 | -87.00 | -15.40 | 200.94 | 14.80 | 212.92 | 0.4551 | -1205.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.31 | 200.02 | 13.88 | 208.06 | 0.4863 | -644.0 | -391.8 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -20.39 | 196.05 | 9.91 | 199.26 | 0.4910 | -676.0 | -607.6 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -19.81 | 195.88 | 9.74 | 199.37 | 0.4818 | -821.0 | -625.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
