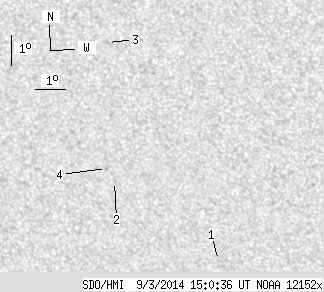

SDO HMI 2014-09-03 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.40 | 0.00 | 1.96 | -17.40 | 167.77 | -18.37 | 143.60 | 0.5114 | 611.8 | 533.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.16 | -22.14 | 170.65 | -15.49 | 153.03 | 0.5474 | 498.0 | 612.3 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -19.56 | 167.44 | -18.70 | 145.78 | 0.5393 | 665.0 | 533.4 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -14.94 | 167.69 | -18.45 | 140.50 | 0.4825 | 736.0 | 521.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -19.13 | 167.22 | -18.92 | 144.99 | 0.5361 | 548.0 | 533.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
