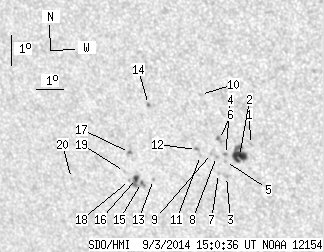

SDO HMI 2014-09-03 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.60 | 50.86 | 7.76 | 31.54 | -18.01 | 158.87 | -27.27 | 133.51 | 0.6024 | 218.9 | 116.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.92 | -17.40 | 160.91 | -25.22 | 134.89 | 0.5762 | 602.0 | 462.1 | |
| 9.83 | 17.70 | 5.99 | 10.78 | -17.83 | 160.46 | -25.68 | 134.93 | 0.5848 | 854.4 | 719.4 | |
| 0.00 | 1.61 | 0.00 | 0.99 | -18.53 | 159.89 | -26.25 | 135.18 | 0.5972 | 572.0 | 464.3 | |
| 0.00 | 1.43 | 0.00 | 0.88 | -17.79 | 159.97 | -26.17 | 134.34 | 0.5893 | 591.0 | 438.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -18.02 | 159.94 | -26.20 | 134.60 | 0.5919 | 407.0 | 444.1 | |
| 0.00 | 2.95 | 0.00 | 1.80 | -17.30 | 159.84 | -26.30 | 133.57 | 0.5861 | 802.0 | 702.9 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -18.44 | 159.62 | -26.52 | 134.78 | 0.5990 | 390.0 | 308.8 | |
| 0.00 | 1.43 | 0.00 | 0.88 | -17.87 | 159.64 | -26.50 | 134.09 | 0.5935 | 339.0 | 435.6 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -17.78 | 159.48 | -26.66 | 133.81 | 0.5943 | 476.0 | 472.3 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -15.84 | 159.39 | -26.75 | 131.17 | 0.5774 | 177.0 | 272.9 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -17.87 | 159.07 | -27.07 | 133.49 | 0.5992 | 327.0 | 326.9 | |
| 0.00 | 1.61 | 0.00 | 0.99 | -17.68 | 158.96 | -27.18 | 133.13 | 0.5986 | 545.0 | 425.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -18.79 | 157.21 | -28.93 | 132.77 | 0.6261 | -724.0 | -671.1 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -16.29 | 157.47 | -28.67 | 129.82 | 0.6018 | -499.0 | -519.4 | |
| 0.54 | 10.37 | 0.34 | 6.62 | -18.92 | 156.74 | -29.40 | 132.48 | 0.6318 | -726.5 | -598.9 | |
| 2.23 | -15.00 | 1.43 | -15.00 | -18.80 | 156.58 | -29.55 | 132.18 | 0.6323 | -804.9 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.42 | -17.93 | 156.49 | -29.65 | 131.01 | 0.6260 | -781.0 | -655.6 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -18.88 | 156.31 | -29.83 | 132.02 | 0.6358 | -386.0 | -349.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.59 | 156.18 | -29.96 | 131.54 | 0.6346 | -569.0 | -503.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -18.96 | 154.13 | -32.01 | 130.16 | 0.6583 | 377.0 | 441.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
