SDO HMI 2014-09-03 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.93 | 110.72 | 59.87 | 345.45 | -19.45 | 107.66 | -77.38 | 111.16 | 0.9874 | 302.8 | 45.6 | |
|
previous
or next observation for the same group /

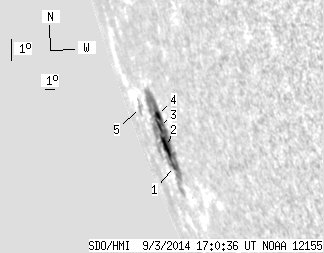

back to the solar disc SDO HMI 2014-09-03 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.04 | 105.09 | 9.25 | 322.59 | -20.39 | 107.88 | -77.16 | 112.14 | 0.9874 | 313.5 | 75.9 | |
| 8.58 | -1.00 | 26.33 | -1.00 | -19.75 | 107.75 | -77.29 | 111.47 | 0.9874 | 198.5 | 999999 | |
| 4.02 | -1.00 | 12.06 | -1.00 | -19.09 | 107.76 | -77.28 | 110.82 | 0.9870 | 480.1 | 999999 | |
| 4.29 | -1.00 | 12.23 | -1.00 | -18.69 | 108.08 | -76.96 | 110.48 | 0.9859 | 397.0 | 999999 | |
| 0.00 | 5.63 | 0.00 | 22.86 | -18.80 | 105.10 | -79.93 | 110.07 | 0.9929 | -341.0 | -303.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
