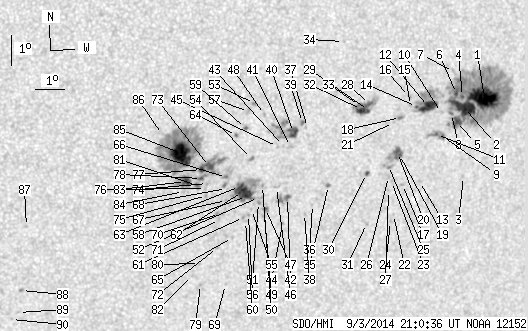

SDO HMI 2014-09-03 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 187.54 | 775.61 | 110.52 | 456.01 | -15.10 | 206.44 | 23.61 | 225.84 | 0.5395 | 46.5 | 20.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.78 | 298.24 | 26.54 | 180.46 | -14.09 | 211.04 | 28.22 | 232.72 | 0.5785 | 1113.1 | 370.6 | |
| 24.03 | -1.00 | 14.51 | -1.00 | -14.37 | 210.37 | 27.55 | 231.66 | 0.5733 | 1026.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -16.64 | 210.66 | 27.84 | 228.87 | 0.5963 | 136.0 | 135.5 | |
| 1.43 | -1.00 | 0.86 | -1.00 | -14.01 | 210.25 | 27.43 | 232.06 | 0.5689 | 1169.4 | 999999 | |
| 6.52 | -1.00 | 3.94 | -1.00 | -14.81 | 210.15 | 27.32 | 230.82 | 0.5747 | 801.7 | 999999 | |
| 1.34 | -1.00 | 0.80 | -1.00 | -13.89 | 210.03 | 27.20 | 231.98 | 0.5654 | 1092.3 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.49 | -13.17 | 209.83 | 27.01 | 232.83 | 0.5571 | 429.0 | 314.6 | |
| 0.63 | -1.00 | 0.38 | -1.00 | -14.54 | 209.93 | 27.11 | 230.98 | 0.5699 | 836.3 | 999999 | |
| 1.07 | 11.44 | 0.65 | 6.89 | -15.27 | 209.72 | 26.89 | 229.74 | 0.5740 | 844.7 | 641.1 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -14.48 | 209.58 | 26.75 | 230.68 | 0.5655 | 886.0 | 736.2 | |
| 0.98 | -9.00 | 0.59 | -9.00 | -15.19 | 209.49 | 26.67 | 229.61 | 0.5709 | 962.1 | 999999 | |
| 12.51 | 40.12 | 7.45 | 23.87 | -14.26 | 209.09 | 26.27 | 230.49 | 0.5582 | 1018.7 | 605.1 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -16.71 | 209.11 | 26.29 | 227.16 | 0.5807 | 643.0 | 446.5 | |
| 0.54 | -12.00 | 0.32 | -12.00 | -14.23 | 208.67 | 25.85 | 230.07 | 0.5533 | 806.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -14.19 | 208.46 | 25.64 | 229.90 | 0.5505 | 778.0 | 555.8 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -13.89 | 208.39 | 25.57 | 230.25 | 0.5470 | 818.0 | 714.2 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -16.77 | 208.52 | 25.70 | 226.44 | 0.5752 | 467.0 | 397.1 | |
| 0.45 | 2.23 | 0.26 | 1.32 | -14.56 | 208.16 | 25.34 | 229.04 | 0.5506 | 824.8 | 697.8 | |
| 1.61 | 14.65 | 0.96 | 8.76 | -15.77 | 208.28 | 25.46 | 227.50 | 0.5632 | 873.6 | 515.4 | |
| 4.20 | -19.00 | 2.51 | -19.00 | -15.70 | 208.20 | 25.38 | 227.50 | 0.5617 | 951.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -14.71 | 207.93 | 25.11 | 228.58 | 0.5495 | 543.0 | 483.5 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -17.76 | 208.35 | 25.53 | 224.98 | 0.5829 | 303.0 | 326.6 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -16.65 | 208.12 | 25.30 | 226.15 | 0.5699 | 510.0 | 432.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -17.99 | 208.28 | 25.46 | 224.61 | 0.5844 | 541.0 | 473.3 | |
| 0.00 | 5.00 | 0.00 | 2.99 | -16.12 | 207.94 | 25.12 | 226.66 | 0.5629 | -196.0 | -73.1 | |
| 0.00 | 1.61 | 0.00 | 0.97 | -16.48 | 207.99 | 25.17 | 226.23 | 0.5669 | 667.0 | 600.7 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -16.95 | 208.06 | 25.24 | 225.69 | 0.5721 | 446.0 | 388.4 | |
| 2.06 | 24.39 | 1.20 | 14.26 | -14.08 | 207.03 | 24.21 | 228.45 | 0.5337 | -708.0 | -404.2 | |
| 1.07 | -28.00 | 0.63 | -28.00 | -14.27 | 207.02 | 24.20 | 228.15 | 0.5354 | -705.2 | 999999 | |
| 1.07 | 1.97 | 0.64 | 1.17 | -16.34 | 207.21 | 24.39 | 225.52 | 0.5574 | -673.0 | -552.2 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -18.01 | 207.44 | 24.62 | 223.64 | 0.5763 | 528.0 | 541.9 | |
| 7.06 | -28.00 | 4.13 | -28.00 | -14.22 | 206.78 | 23.96 | 227.93 | 0.5323 | -895.7 | 999999 | |
| 1.25 | -28.00 | 0.73 | -28.00 | -14.09 | 206.69 | 23.87 | 228.02 | 0.5301 | -972.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -11.99 | 205.94 | 23.12 | 230.26 | 0.5015 | -460.0 | -402.7 | |
| 0.63 | 1.79 | 0.37 | 1.06 | -16.66 | 205.94 | 23.12 | 223.57 | 0.5478 | -582.1 | -447.2 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -17.27 | 205.47 | 22.65 | 222.21 | 0.5494 | -495.0 | -471.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -14.71 | 205.00 | 22.17 | 225.03 | 0.5181 | 402.0 | 488.0 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -17.55 | 205.23 | 22.41 | 221.55 | 0.5501 | -523.0 | -456.3 | |
| 0.63 | 2.23 | 0.36 | 1.29 | -14.54 | 204.81 | 21.99 | 225.03 | 0.5143 | 872.7 | 733.3 | |
| 6.25 | 30.83 | 3.61 | 17.74 | -14.85 | 204.54 | 21.72 | 224.24 | 0.5147 | 992.8 | 667.0 | |
| 0.00 | 3.04 | 0.00 | 1.76 | -15.31 | 204.49 | 21.66 | 223.54 | 0.5190 | 577.0 | 483.7 | |
| 1.16 | 10.10 | 0.68 | 5.92 | -16.99 | 204.58 | 21.76 | 221.43 | 0.5378 | -634.7 | -607.8 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -15.26 | 204.25 | 21.42 | 223.28 | 0.5160 | 575.0 | 584.2 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.85 | 204.51 | 21.69 | 220.26 | 0.5465 | -575.0 | -483.3 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.28 | 204.05 | 21.22 | 222.98 | 0.5142 | 544.0 | 507.0 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -16.64 | 204.16 | 21.34 | 221.34 | 0.5300 | -590.0 | -469.4 | |
| 0.80 | 2.95 | 0.47 | 1.73 | -17.32 | 203.87 | 21.05 | 220.08 | 0.5346 | -661.3 | -598.2 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -14.22 | 203.50 | 20.68 | 223.74 | 0.4972 | -702.0 | -547.0 | |
| 0.00 | 1.88 | 0.00 | 1.10 | -17.55 | 203.86 | 21.04 | 219.78 | 0.5371 | -196.0 | -319.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.55 | 203.68 | 20.86 | 220.81 | 0.5243 | -520.0 | -475.1 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -17.11 | 203.61 | 20.78 | 220.00 | 0.5298 | -787.0 | -674.7 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -16.94 | 203.59 | 20.77 | 220.18 | 0.5277 | -556.0 | -477.2 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -13.84 | 203.14 | 20.31 | 223.76 | 0.4893 | -857.0 | -769.2 | |
| 0.00 | 2.32 | 0.00 | 1.34 | -15.64 | 203.21 | 20.39 | 221.36 | 0.5097 | -705.0 | -648.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.33 | 203.40 | 20.57 | 219.43 | 0.5302 | -522.0 | -437.1 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -17.49 | 203.31 | 20.49 | 219.12 | 0.5313 | -546.0 | -521.2 | |
| 0.00 | 2.86 | 0.00 | 1.62 | -14.09 | 202.96 | 20.14 | 223.15 | 0.4902 | -819.0 | -665.1 | |
| 7.59 | 38.33 | 4.41 | 22.20 | -16.89 | 203.18 | 20.35 | 219.69 | 0.5233 | -918.9 | -449.6 | |
| 0.45 | 1.43 | 0.25 | 0.81 | -14.64 | 202.91 | 20.09 | 222.30 | 0.4957 | -804.8 | -690.1 | |
| 0.00 | 1.88 | 0.00 | 1.10 | -17.72 | 203.24 | 20.42 | 218.73 | 0.5332 | -425.0 | -483.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -17.58 | 203.15 | 20.33 | 218.79 | 0.5309 | -695.0 | -613.5 | |
| 7.86 | -58.00 | 4.55 | -58.00 | -16.71 | 203.02 | 20.20 | 219.69 | 0.5199 | -1124.8 | 999999 | |
| 3.66 | -58.00 | 2.12 | -58.00 | -16.54 | 202.90 | 20.08 | 219.75 | 0.5168 | -978.6 | 999999 | |
| 0.45 | 1.34 | 0.25 | 0.76 | -14.86 | 202.63 | 19.81 | 221.61 | 0.4953 | -815.4 | -672.4 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -18.23 | 202.86 | 20.04 | 217.59 | 0.5356 | -461.0 | -405.8 | |
| 0.00 | 8.85 | 0.00 | 5.08 | -16.22 | 202.43 | 19.61 | 219.49 | 0.5087 | -793.0 | -530.6 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -16.99 | 202.51 | 19.69 | 218.64 | 0.5182 | -574.0 | -472.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.59 | 202.47 | 19.65 | 219.08 | 0.5132 | -499.0 | -574.6 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -19.81 | 202.82 | 20.00 | 215.71 | 0.5533 | -189.0 | -253.7 | |
| 0.00 | 3.13 | 0.00 | 1.81 | -17.41 | 202.33 | 19.50 | 217.84 | 0.5213 | -707.0 | -591.1 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -17.61 | 202.35 | 19.53 | 217.63 | 0.5238 | -664.0 | -513.1 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -18.55 | 202.39 | 19.57 | 216.57 | 0.5350 | -416.0 | -477.7 | |
| 4.47 | 207.56 | 2.55 | 117.54 | -15.84 | 201.83 | 19.01 | 219.12 | 0.4985 | -828.7 | -501.0 | |
| 0.00 | 1.70 | 0.00 | 0.97 | -16.39 | 201.82 | 18.99 | 218.38 | 0.5049 | -422.0 | -405.7 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -16.79 | 201.82 | 19.00 | 217.89 | 0.5095 | -621.0 | -543.2 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -16.56 | 201.77 | 18.94 | 218.10 | 0.5063 | -291.0 | -396.8 | |
| 2.77 | -73.00 | 1.58 | -73.00 | -15.92 | 201.57 | 18.75 | 218.63 | 0.4971 | -1058.3 | 999999 | |
| 0.98 | -73.00 | 0.56 | -73.00 | -16.22 | 201.60 | 18.78 | 218.29 | 0.5008 | -972.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -19.77 | 201.96 | 19.14 | 214.58 | 0.5457 | -515.0 | -447.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -19.06 | 201.84 | 19.02 | 215.21 | 0.5362 | -212.0 | -292.1 | |
| 0.98 | -73.00 | 0.56 | -73.00 | -16.44 | 201.45 | 18.63 | 217.79 | 0.5021 | -780.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -19.46 | 201.65 | 18.83 | 214.50 | 0.5393 | -460.0 | -455.0 | |
| 6.70 | -73.00 | 3.82 | -73.00 | -16.30 | 201.07 | 18.25 | 217.41 | 0.4969 | -991.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -16.62 | 201.04 | 18.22 | 216.94 | 0.5004 | -83.0 | -111.3 | |
| 30.56 | -73.00 | 17.28 | -73.00 | -15.37 | 200.86 | 18.03 | 218.28 | 0.4839 | -1235.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -14.72 | 200.18 | 17.35 | 218.08 | 0.4697 | -106.0 | -92.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.59 | 195.96 | 13.14 | 207.47 | 0.4716 | -529.0 | -473.5 | |
| 0.00 | 1.70 | 0.00 | 0.97 | -19.74 | 195.97 | 13.14 | 205.41 | 0.5008 | -526.0 | -379.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.49 | 195.93 | 13.11 | 204.69 | 0.5106 | -670.0 | -552.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -20.72 | 195.72 | 12.90 | 204.14 | 0.5125 | -698.0 | -646.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
