SDO HMI 2014-09-03 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 31.99 | 0.00 | 15.99 | 9.53 | 183.01 | 0.19 | 253.65 | 0.1083 | -467.0 | -473.3 | |
|
previous
or next observation for the same group /

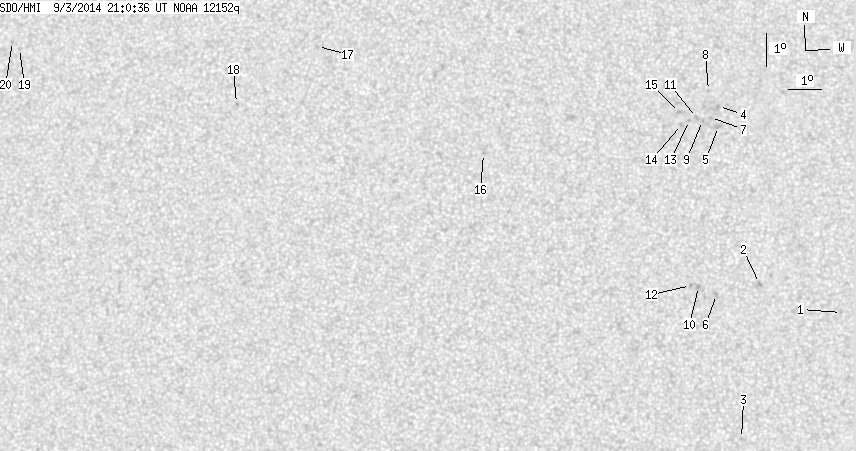

back to the solar disc SDO HMI 2014-09-03 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.67 | 5.17 | 189.71 | 6.89 | 253.63 | 0.1251 | -794.0 | -655.5 | |
| 0.00 | 1.79 | 0.00 | 0.89 | 6.08 | 187.22 | 4.40 | 255.49 | 0.0791 | -1049.0 | -846.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 1.39 | 186.65 | 3.82 | 213.30 | 0.1220 | -804.0 | -623.2 | |
| 0.00 | 1.88 | 0.00 | 0.93 | 11.44 | 186.02 | 3.20 | 323.38 | 0.0922 | -871.0 | -586.0 | |
| 0.00 | 3.84 | 0.00 | 1.91 | 10.84 | 186.02 | 3.19 | 319.06 | 0.0839 | -784.0 | -682.0 | |
| 0.00 | 2.86 | 0.00 | 1.42 | 5.76 | 185.91 | 3.09 | 244.53 | 0.0596 | -988.0 | -681.1 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 11.11 | 185.77 | 2.95 | 323.33 | 0.0850 | -957.0 | -746.1 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.93 | 185.72 | 2.90 | 328.92 | 0.0963 | -717.0 | -534.1 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.02 | 185.53 | 2.70 | 325.06 | 0.0812 | -1042.0 | -856.4 | |
| 0.00 | 2.06 | 0.00 | 1.02 | 6.00 | 185.36 | 2.54 | 244.22 | 0.0492 | -1064.0 | -823.6 | |
| 0.00 | 2.06 | 0.00 | 1.02 | 11.11 | 185.34 | 2.52 | 327.56 | 0.0808 | -939.0 | -758.4 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 6.04 | 185.12 | 2.30 | 242.50 | 0.0451 | -853.0 | -709.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.03 | 185.12 | 2.30 | 329.25 | 0.0775 | -940.0 | -763.8 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 10.91 | 184.88 | 2.05 | 331.24 | 0.0735 | -864.0 | -757.3 | |
| 0.00 | 1.88 | 0.00 | 0.93 | 11.27 | 184.82 | 2.00 | 334.14 | 0.0787 | -685.0 | -620.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 10.02 | 178.79 | -4.03 | 54.71 | 0.0852 | 904.0 | 650.4 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 13.20 | 173.56 | -9.26 | 56.04 | 0.1898 | 736.0 | 619.1 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 11.41 | 171.08 | -11.74 | 69.26 | 0.2143 | 813.0 | 641.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 12.86 | 164.04 | -18.79 | 71.56 | 0.3324 | 760.0 | 575.2 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 13.07 | 163.79 | -19.03 | 71.16 | 0.3371 | 798.0 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
