SDO HMI 2014-09-03 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.91 | 74.35 | 12.59 | 44.78 | -17.82 | 158.66 | -24.16 | 136.71 | 0.5701 | 133.4 | 81.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-03 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

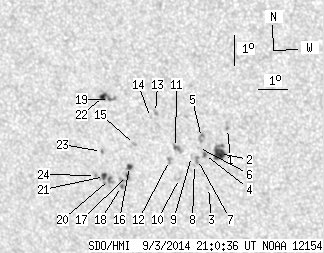

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.84 | -16.93 | 161.09 | -21.74 | 138.52 | 0.5370 | 873.0 | 747.1 | |
| 8.85 | 14.47 | 5.24 | 8.57 | -17.78 | 160.70 | -22.12 | 139.11 | 0.5498 | 892.0 | 710.1 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -18.95 | 160.16 | -22.66 | 139.85 | 0.5673 | 181.0 | 298.0 | |
| 0.71 | 1.88 | 0.43 | 1.12 | -17.84 | 160.18 | -22.64 | 138.52 | 0.5554 | 688.8 | 584.0 | |
| 0.00 | 4.47 | 0.00 | 2.65 | -17.28 | 160.15 | -22.67 | 137.78 | 0.5498 | 808.0 | 651.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -17.62 | 160.00 | -22.82 | 138.02 | 0.5547 | 197.0 | 294.0 | |
| 0.00 | 3.13 | 0.00 | 1.87 | -18.02 | 159.91 | -22.91 | 138.42 | 0.5598 | 873.0 | 669.3 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -18.19 | 159.79 | -23.04 | 138.47 | 0.5629 | 489.0 | 440.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -17.93 | 159.72 | -23.10 | 138.06 | 0.5608 | 527.0 | 370.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -18.69 | 159.19 | -23.63 | 138.37 | 0.5737 | 554.0 | 544.1 | |
| 0.89 | 5.45 | 0.53 | 3.26 | -17.66 | 159.20 | -23.62 | 137.10 | 0.5630 | 728.2 | 536.6 | |
| 0.00 | 2.95 | 0.00 | 1.77 | -18.10 | 158.93 | -23.89 | 137.33 | 0.5702 | 748.0 | 563.4 | |
| 0.00 | 2.41 | 0.00 | 1.44 | -16.53 | 158.67 | -24.15 | 135.00 | 0.5569 | 647.0 | 518.3 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -16.70 | 158.47 | -24.35 | 135.00 | 0.5607 | 657.0 | 507.8 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -17.63 | 157.78 | -25.04 | 135.41 | 0.5768 | -621.0 | -484.1 | |
| 2.06 | 3.31 | 1.26 | 2.02 | -18.38 | 157.49 | -25.34 | 136.02 | 0.5870 | -840.0 | -627.0 | |
| 0.89 | 6.17 | 0.55 | 3.79 | -18.69 | 157.37 | -25.46 | 136.27 | 0.5912 | -965.6 | -659.5 | |
| 0.54 | 1.61 | 0.33 | 0.99 | -19.08 | 157.09 | -25.73 | 136.43 | 0.5976 | -781.2 | -660.2 | |
| 0.63 | 8.13 | 0.38 | 4.89 | -16.18 | 157.12 | -25.71 | 132.78 | 0.5697 | -772.7 | -647.0 | |
| 1.07 | 8.49 | 0.66 | 5.25 | -18.86 | 156.70 | -26.12 | 135.75 | 0.5993 | -828.2 | -603.1 | |
| 2.23 | -20.00 | 1.38 | -20.00 | -18.77 | 156.54 | -26.29 | 135.46 | 0.6000 | -855.1 | 999999 | |
| 3.04 | -19.00 | 1.83 | -19.00 | -16.10 | 156.92 | -25.90 | 132.44 | 0.5710 | -586.9 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.93 | -17.94 | 156.57 | -26.25 | 134.45 | 0.5918 | -873.0 | -775.2 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -18.76 | 156.22 | -26.61 | 135.10 | 0.6030 | -662.0 | -543.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
